Transmission Control Systems: Locations

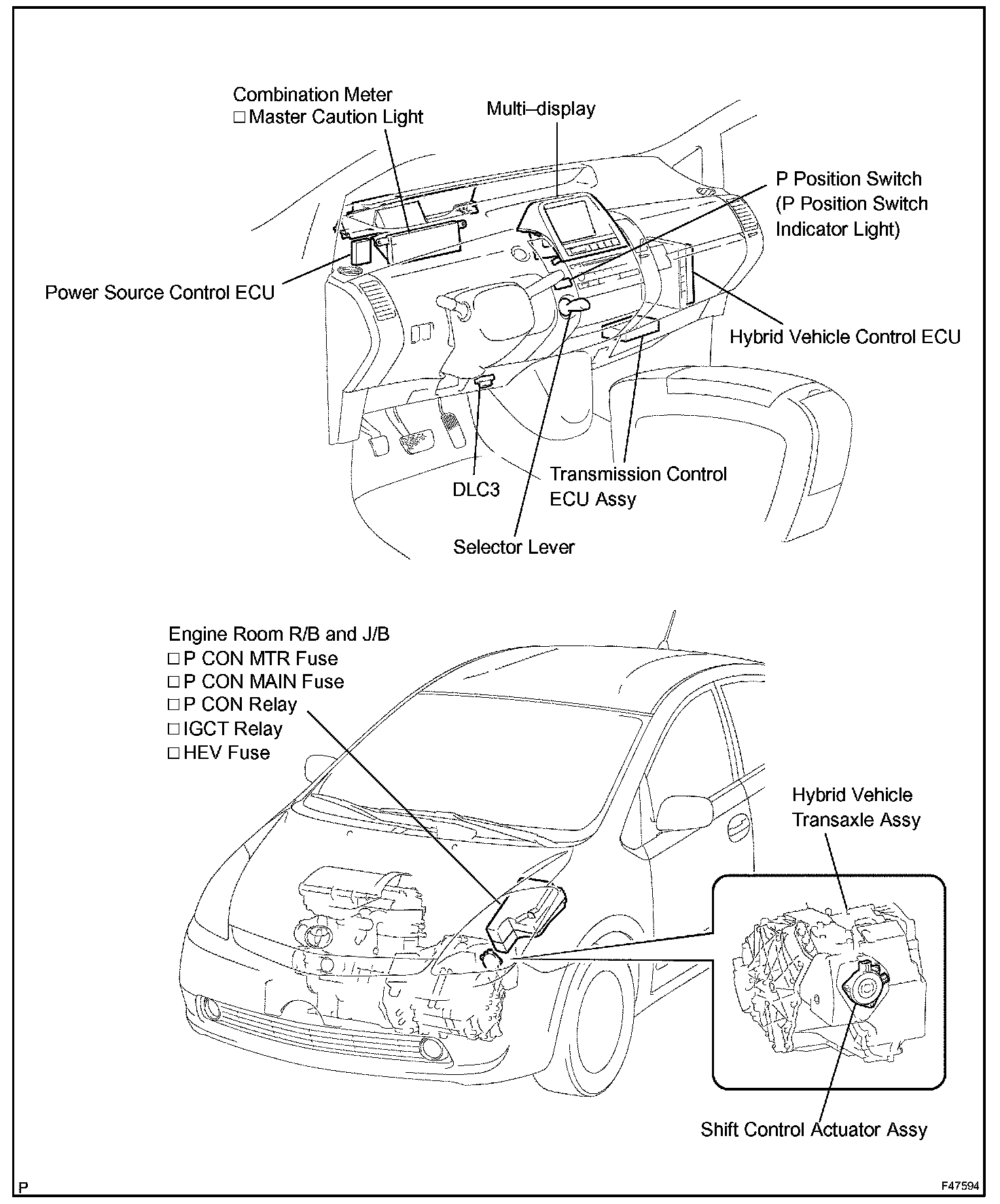

Shift Control System (Parking Lock Control):



Engine Room R/B, Engine Room J/B - Engine Compartment Left:
