Headlamp Control Module: Service and Repair

HEADLAMP LEVELING ECU ASSEMBLY

REPLACEMENT

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
3. REMOVE ECM

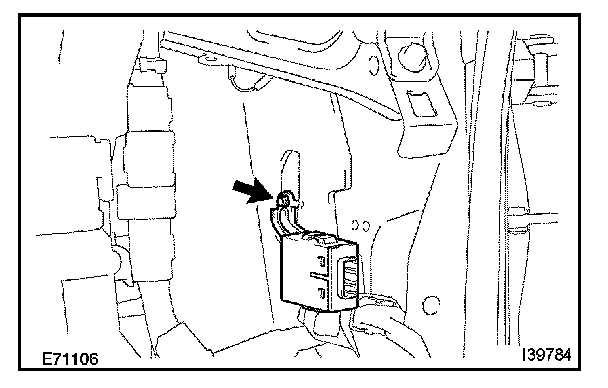

4. REMOVE HEADLAMP LEVELING ECU ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and the headlamp leveling ECU assembly.

5. INSTALL ECM
6. CONNECT BATTERY NEGATIVE TERMINAL
7. PERFORM INITIALIZATION
