Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

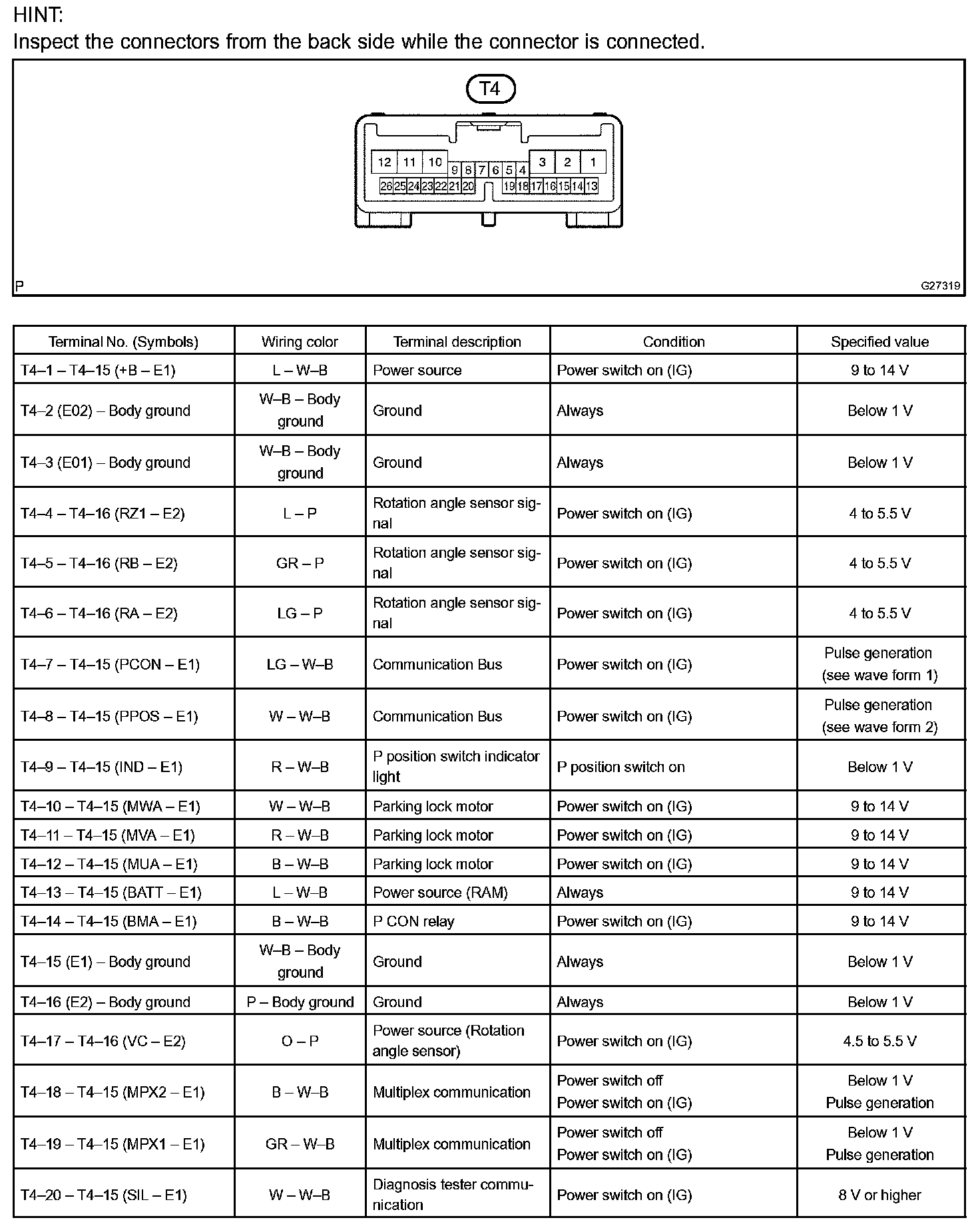

Terminals Of Control Module/Pinouts - Transmission Control ECU Assy:

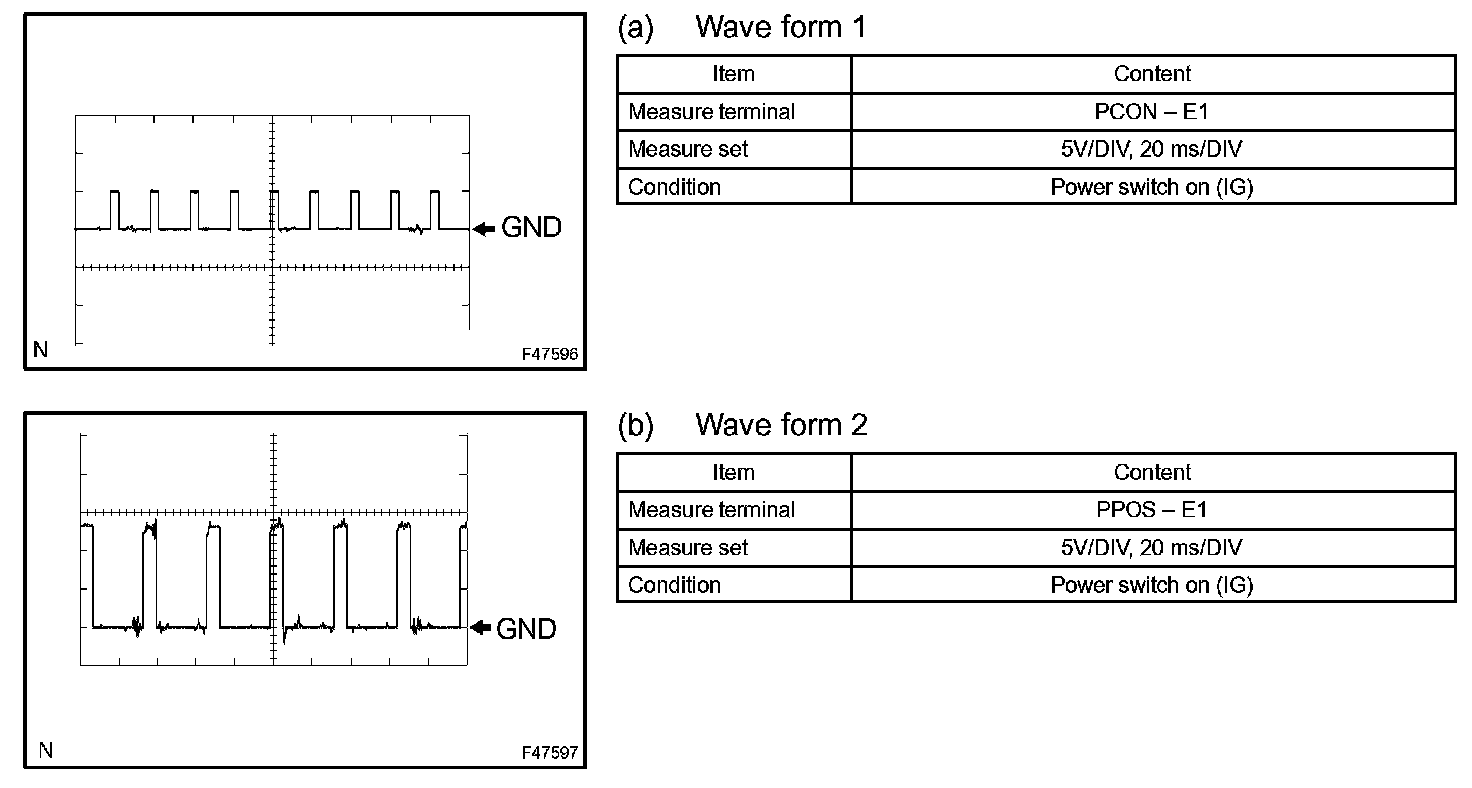

Oscilloscope Waveforms:
