Steering Mounted Controls Transmitter: Service and Repair

Audio & Visual System - Part 2:

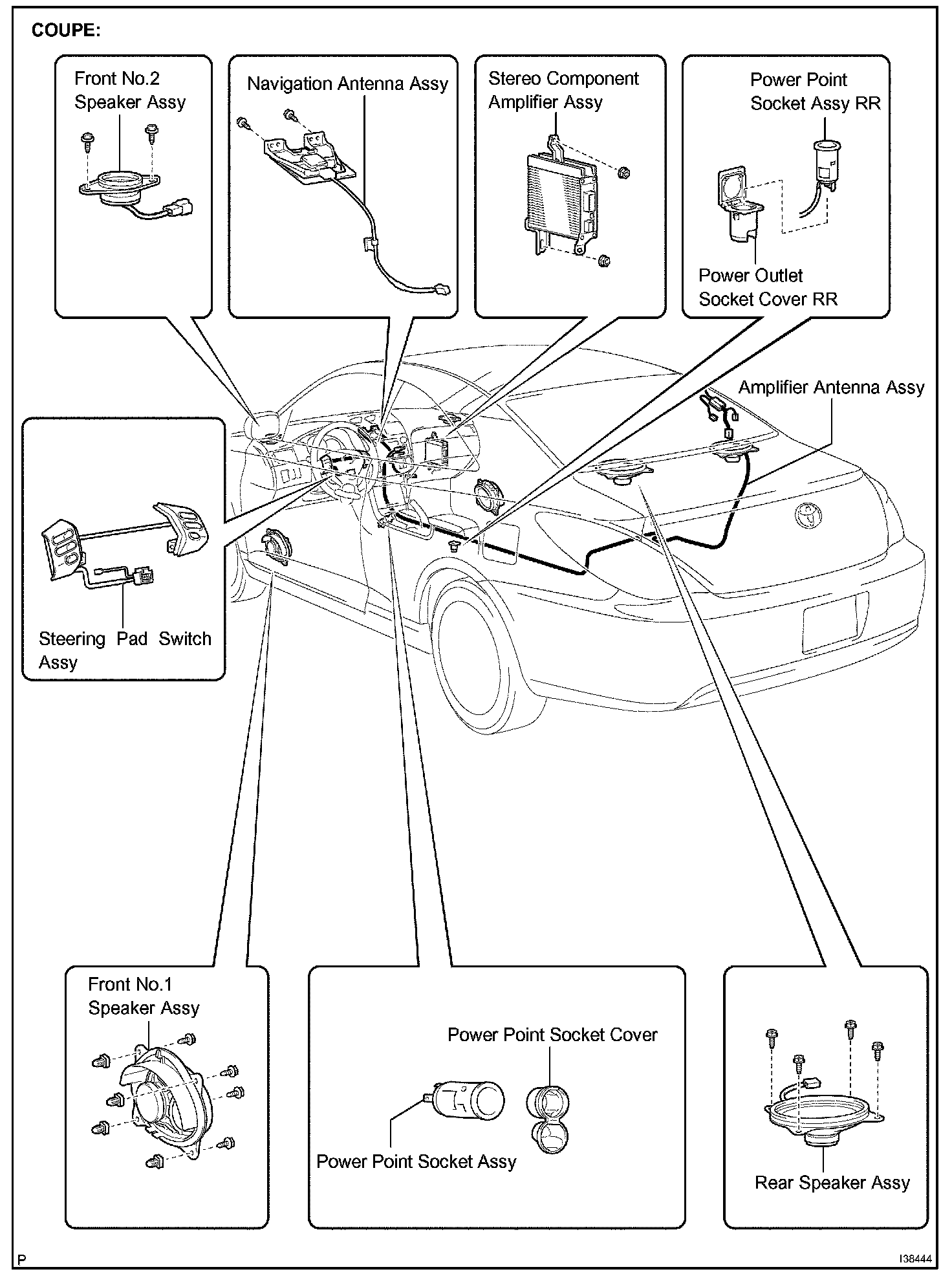

STEERING PAD SWITCH ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REFER TO AIR BAG SYSTEM SERVICE PRECAUTIONS.
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSEMBLY.







6. REMOVE STEERING PAD SWITCH ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 screws.
c. Disengage the 4 claws and the pin. d.Remove the steering pad switch assembly.

7. INSTALL HORN BUTTON ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL




9. PERFORM INITIALIZATION
10. INSPECT HORN BUTTON ASSEMBLY
11. INSPECT SRS WARNING LIGHT
