Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

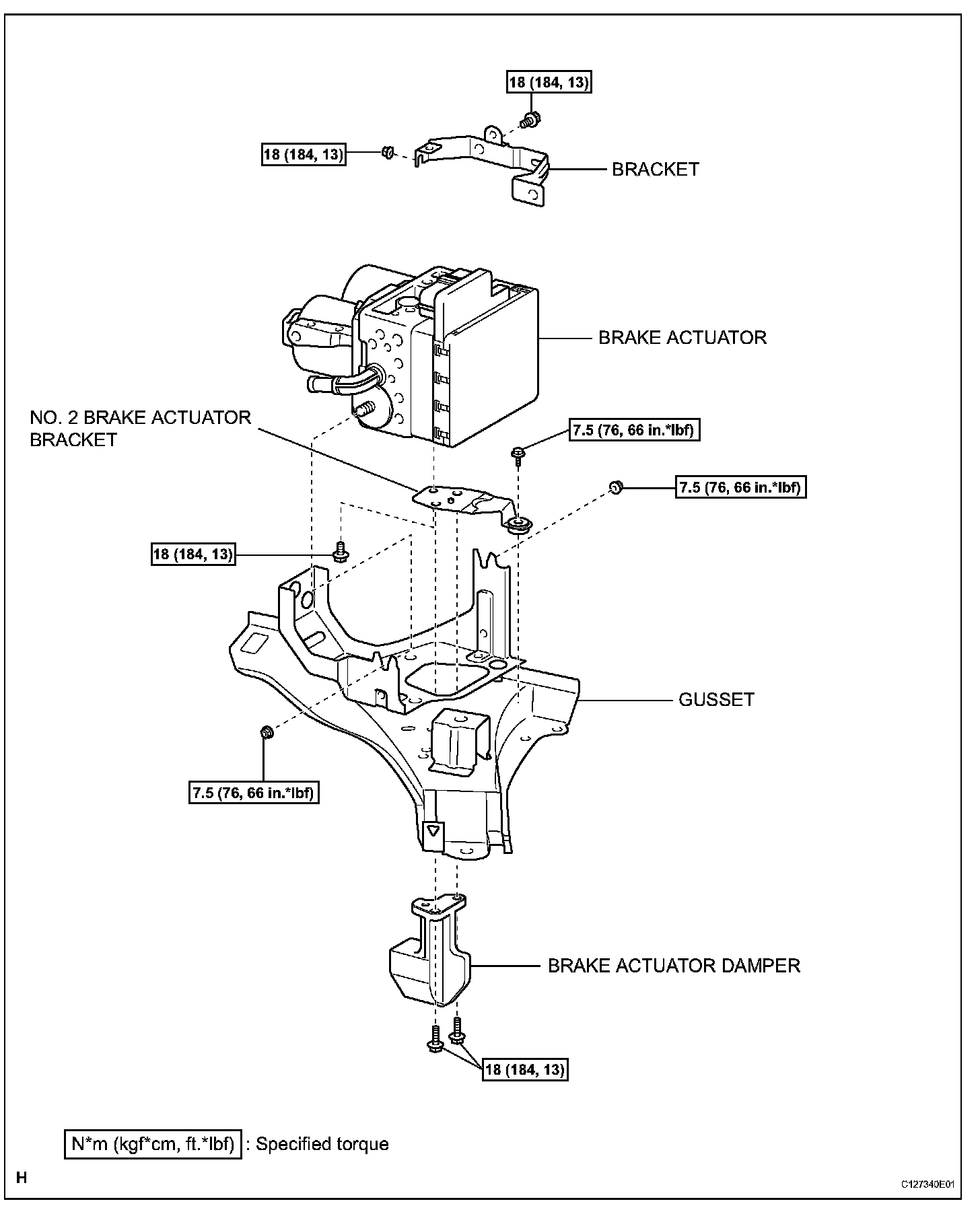

Brake Actuator:

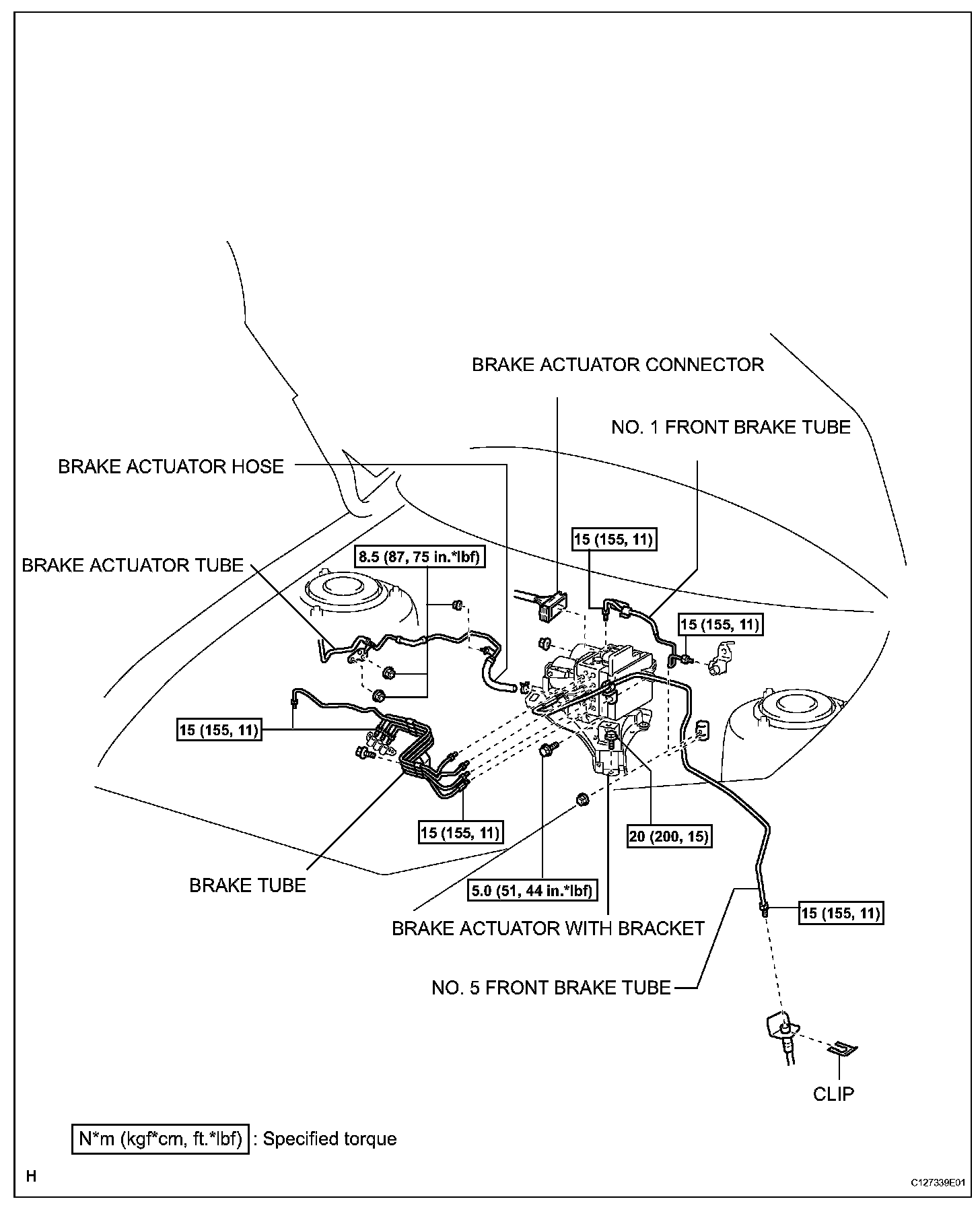

Brake Actuator:
Brake Actuator:

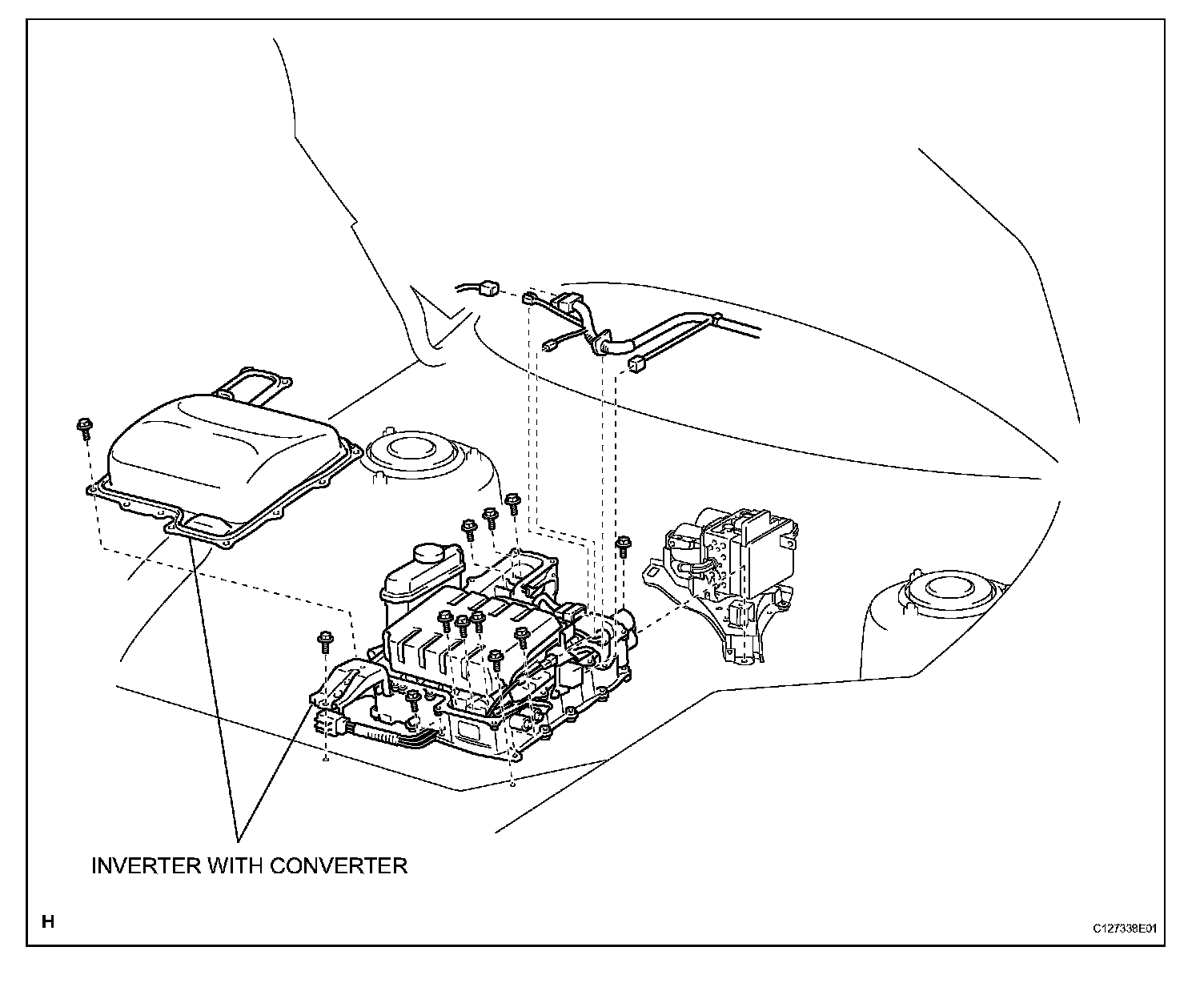

Brake Actuator:

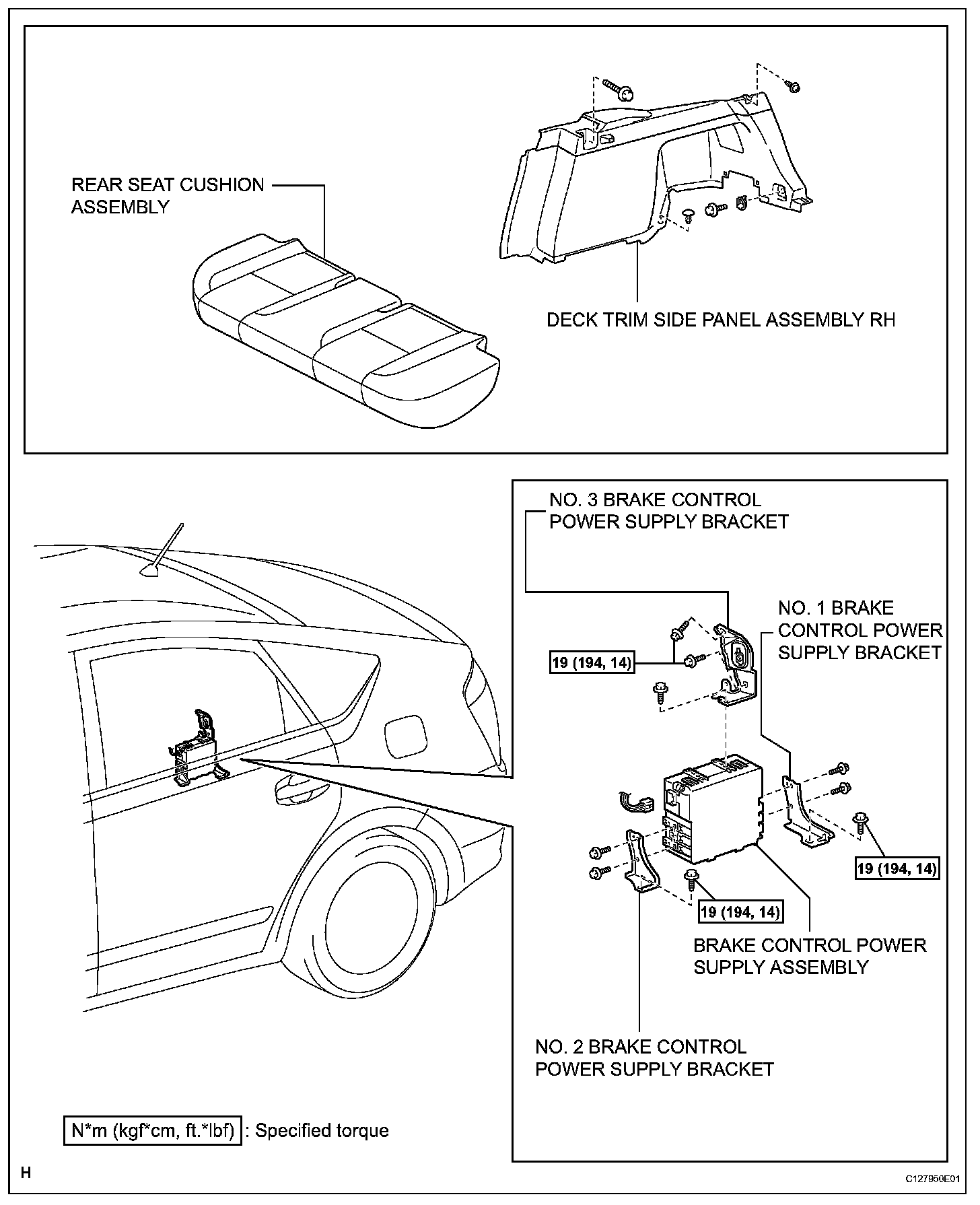

Brake Control Power Supply:
