Battery Current Sensor, Hybrid Drive
Battery Current Sensor, Hybrid Drive

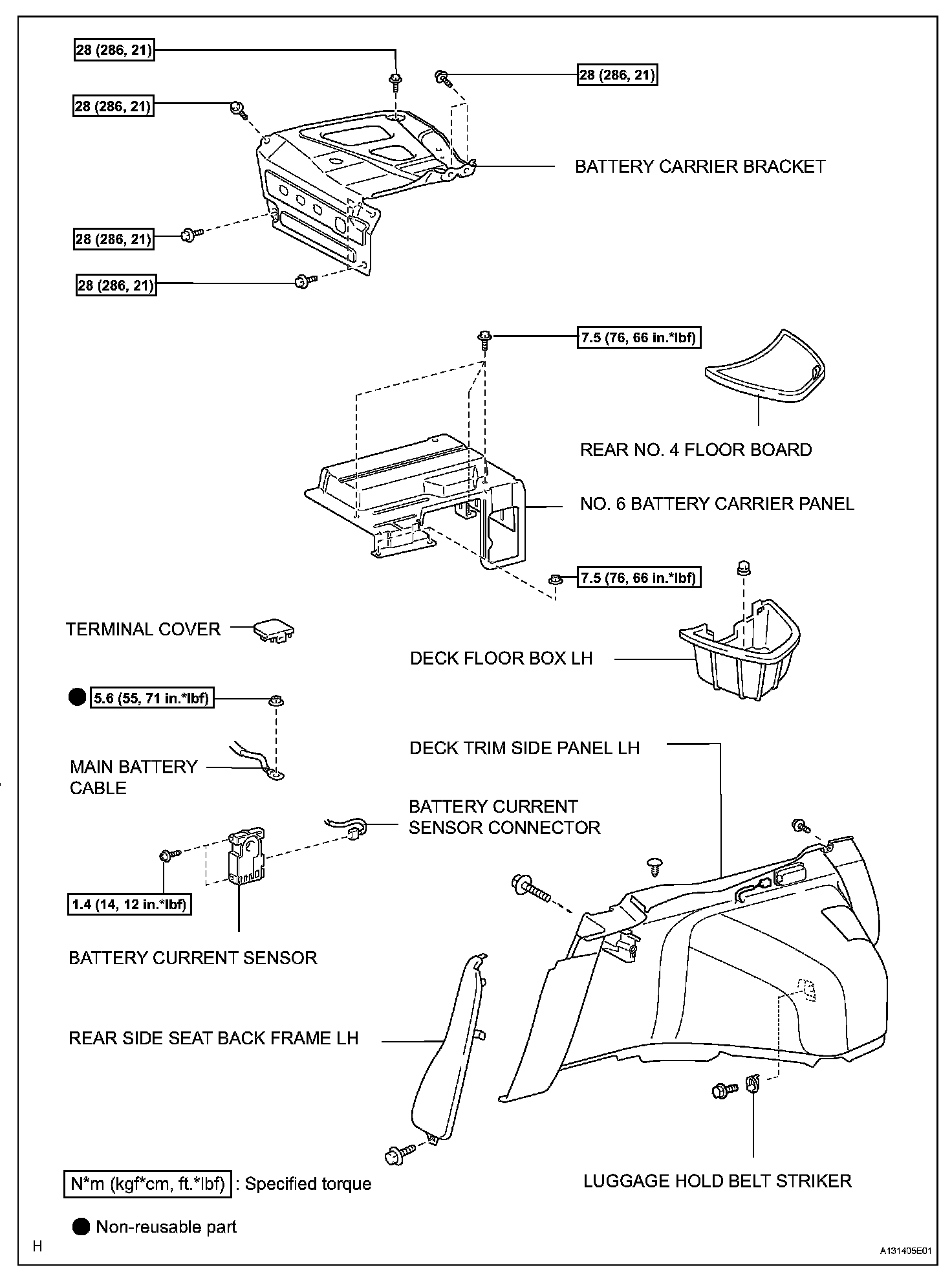

Battery Current Sensor:

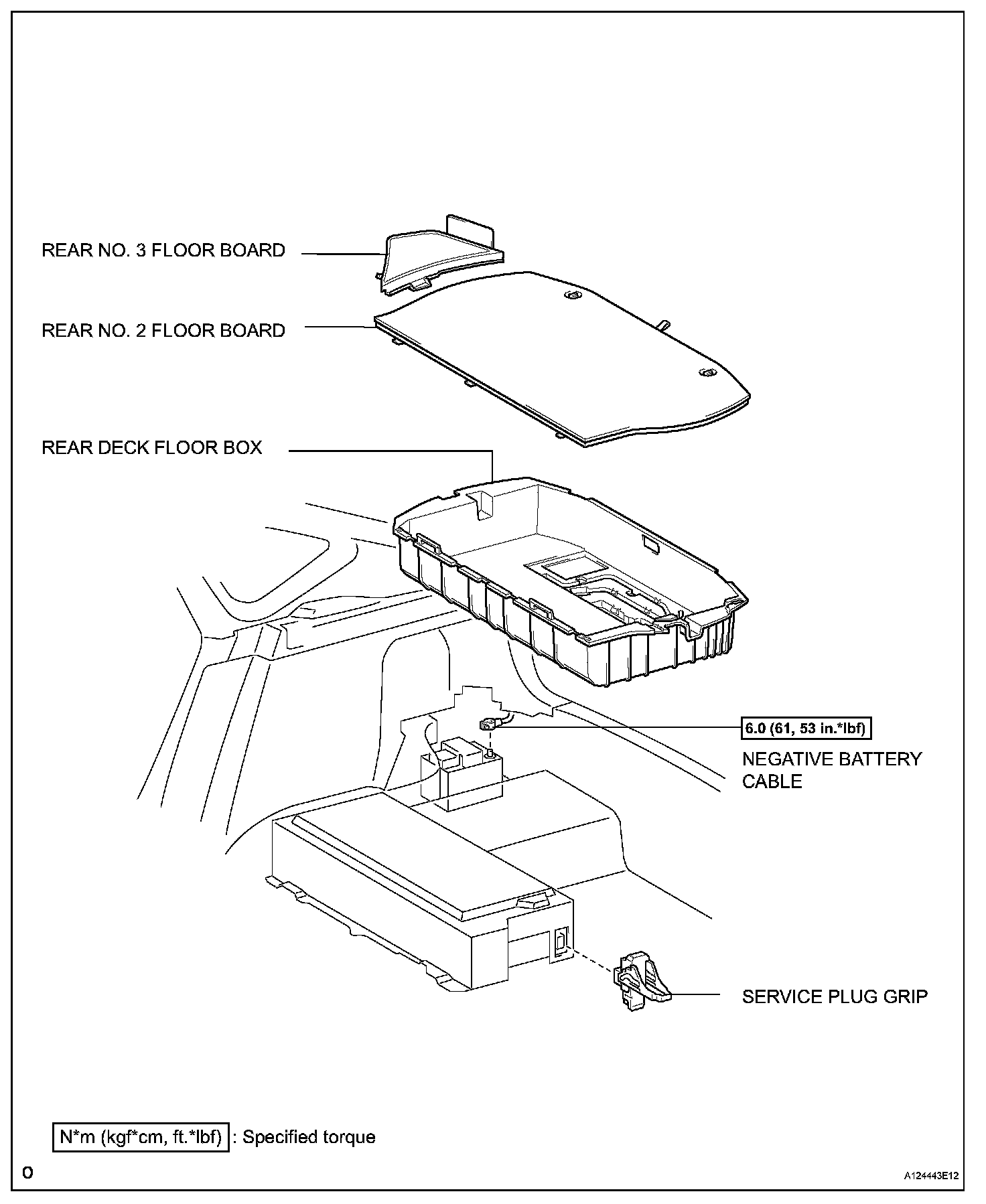

Battery Current Sensor:

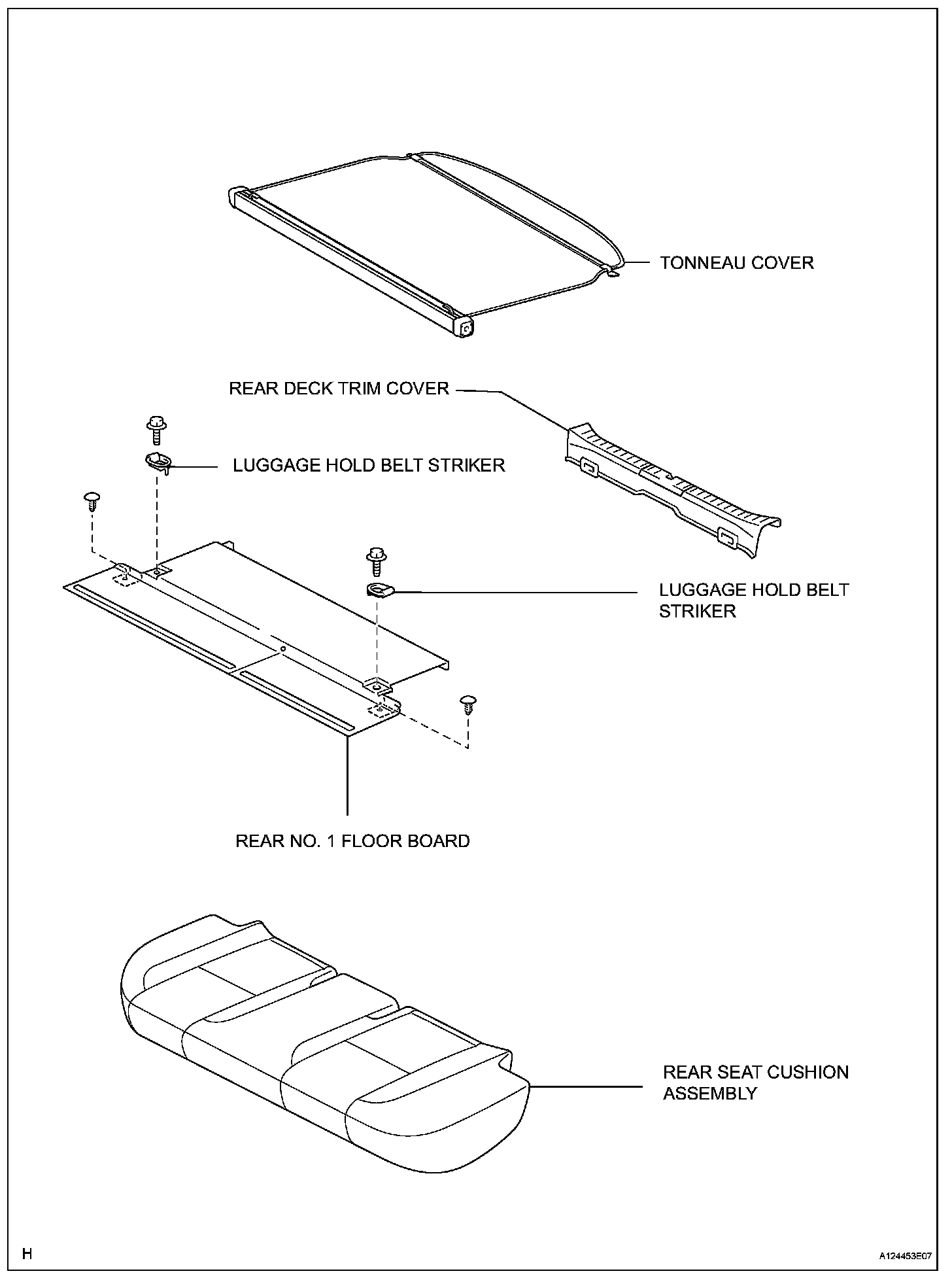

Battery Current Sensor:

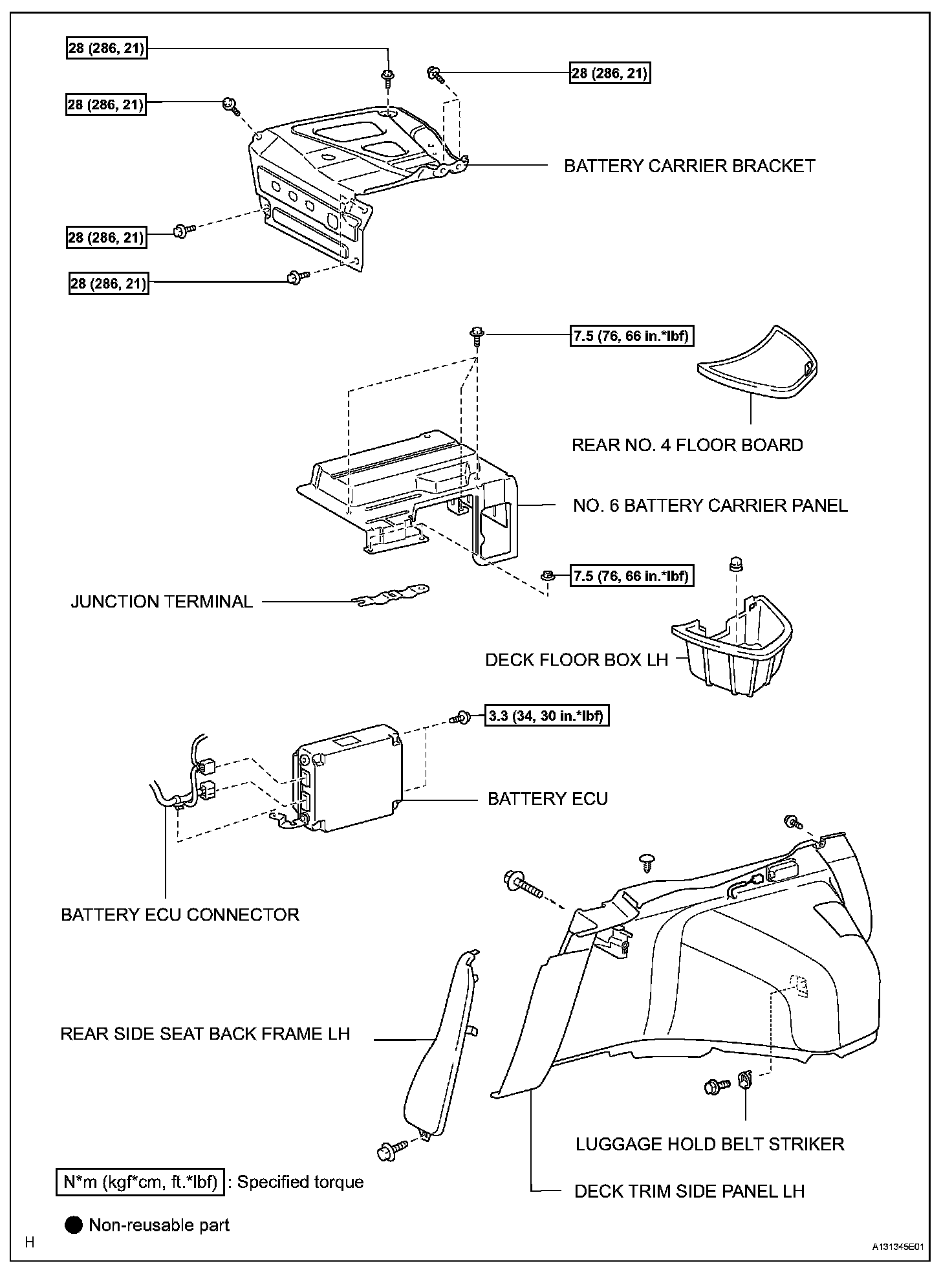

Battery ECU:

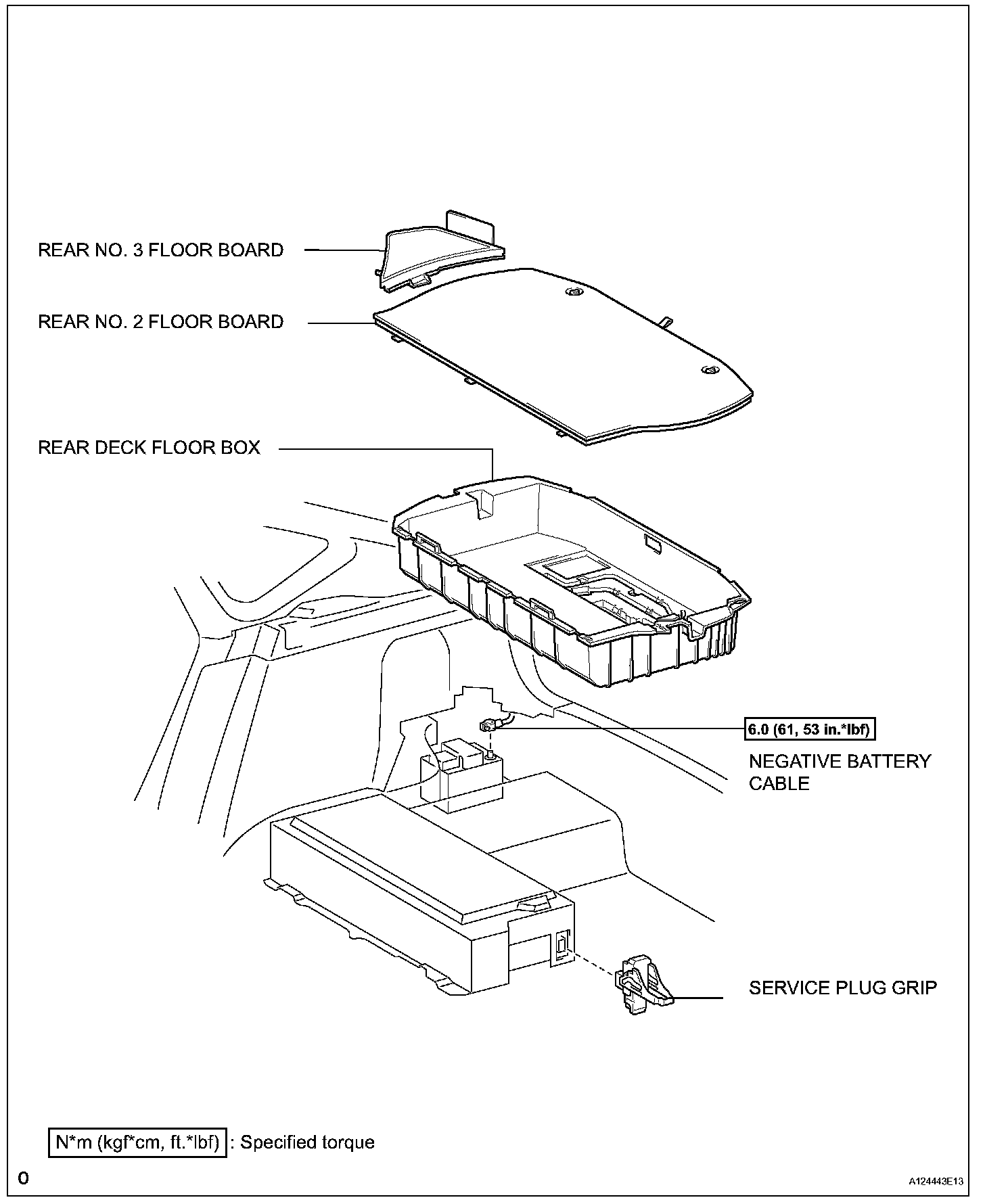

Battery ECU:
Battery ECU:
