System Main Relay, Hybrid Drive

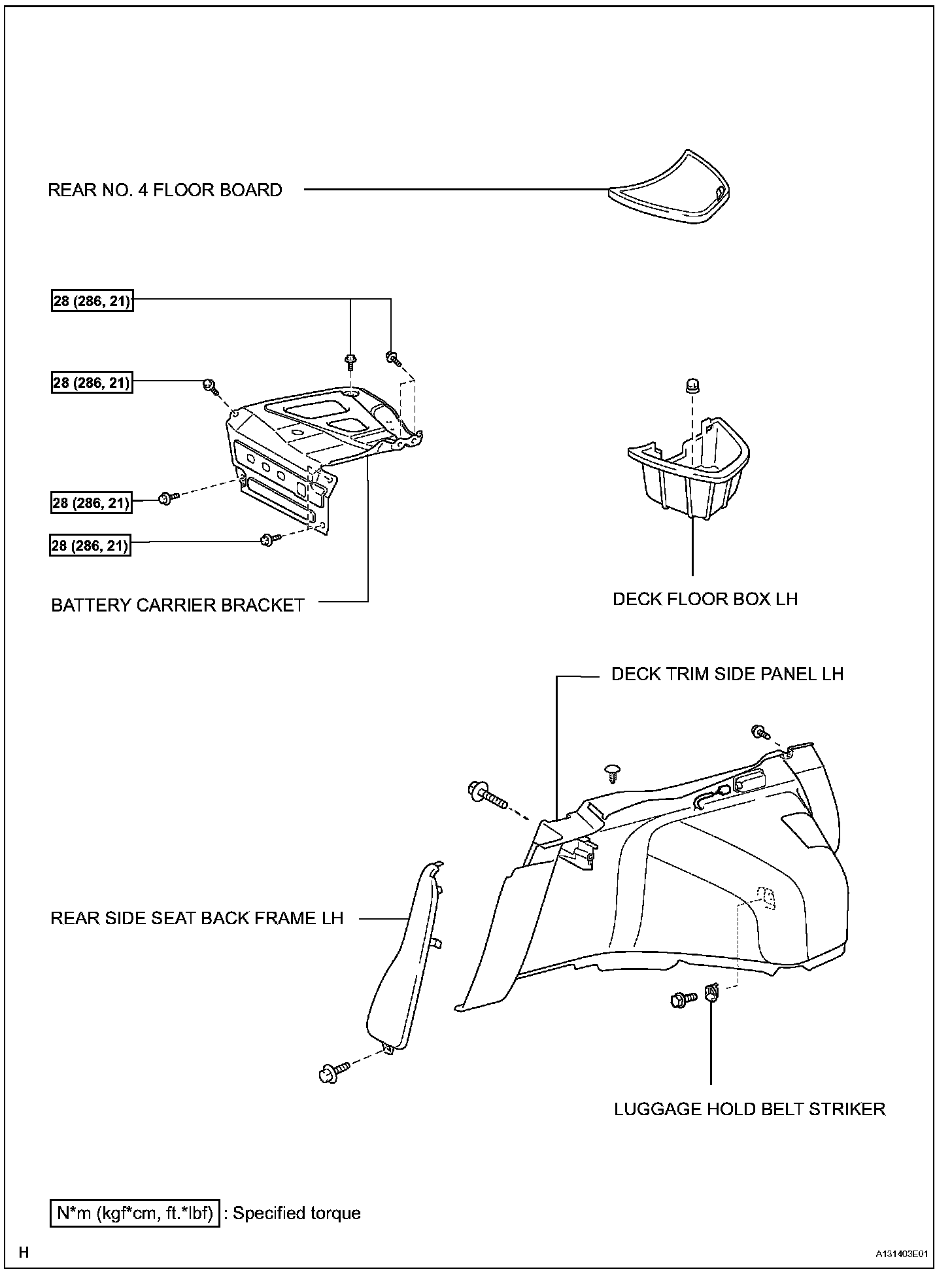

System Main Relay:

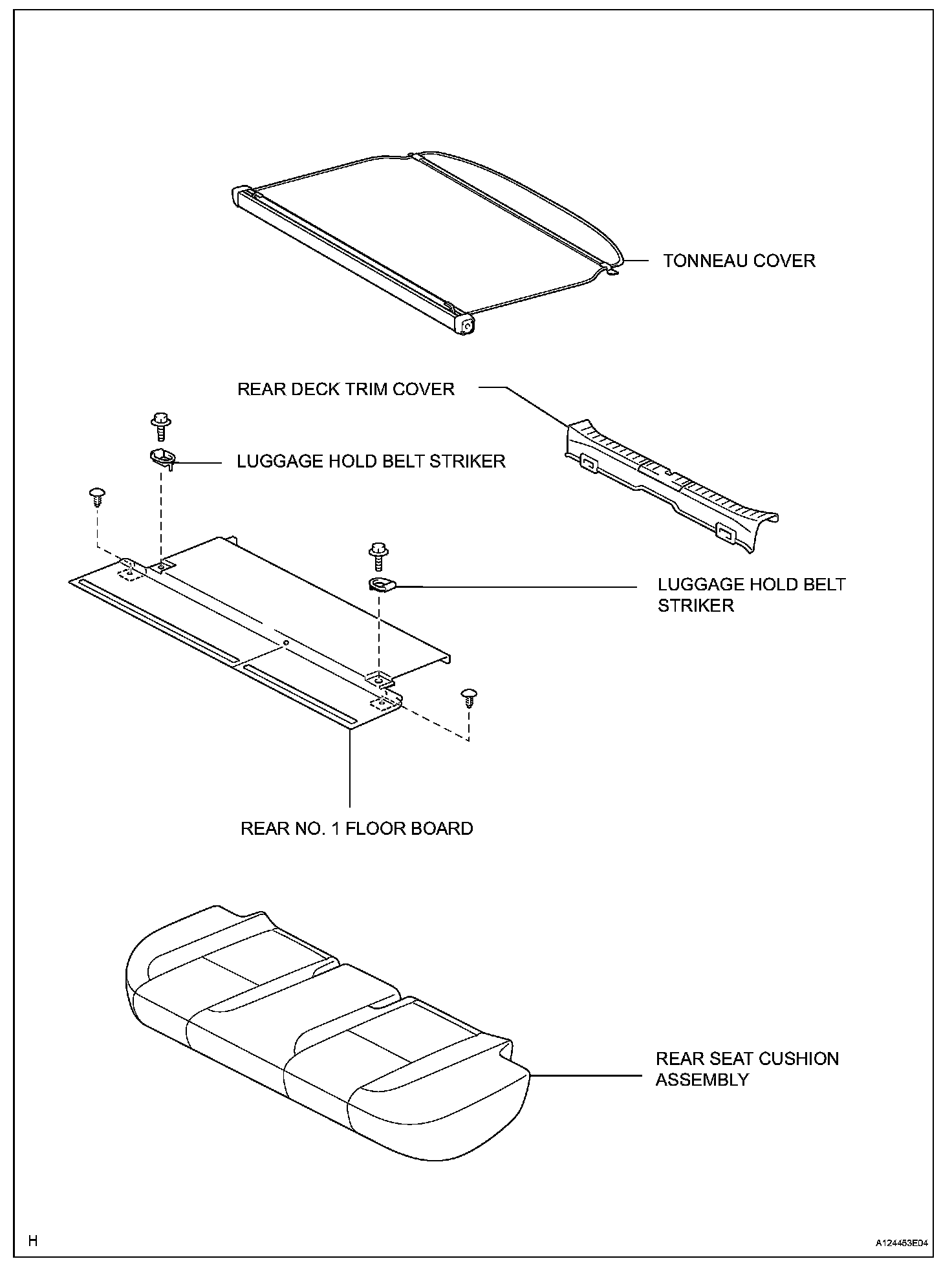

System Main Relay:

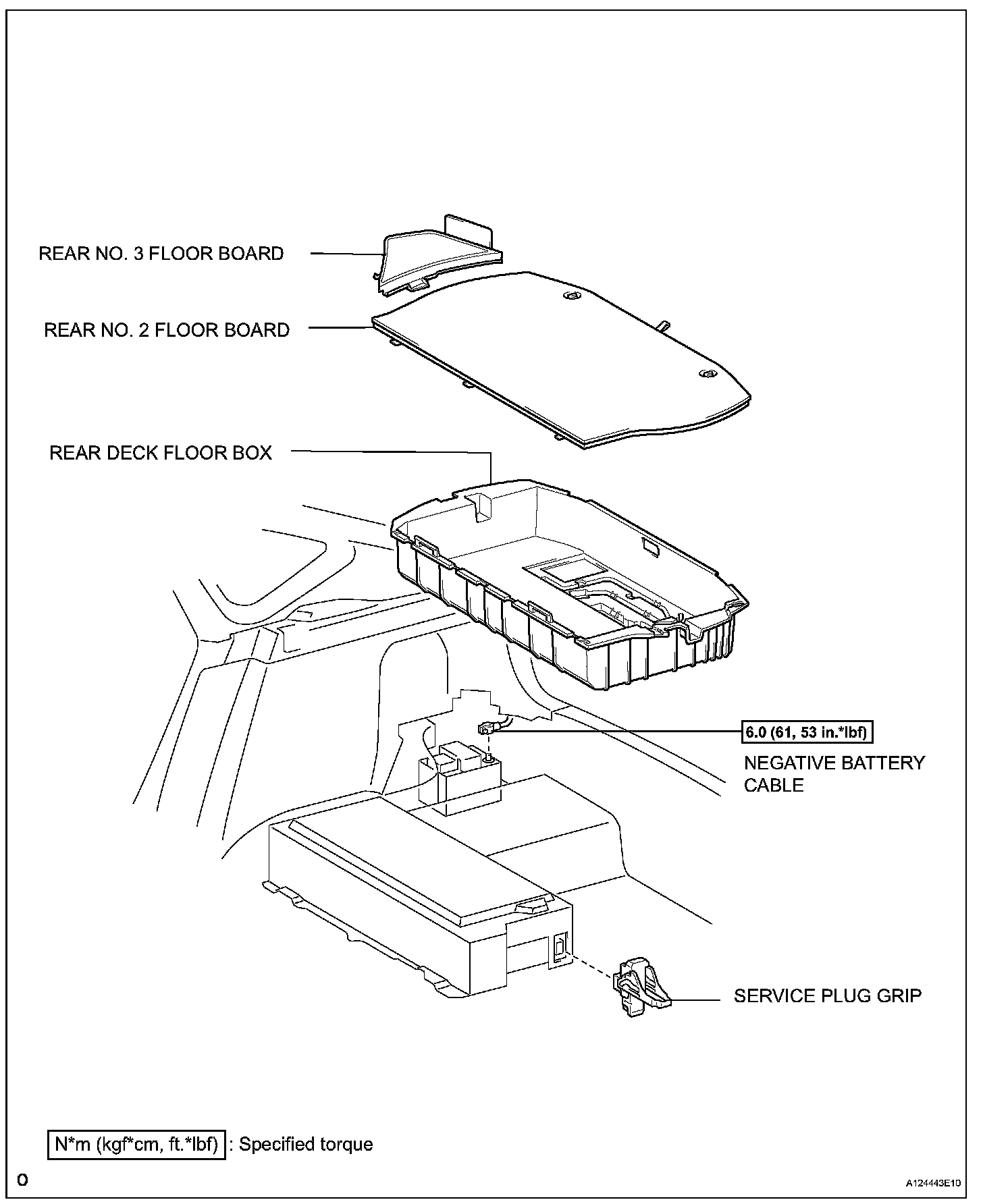

System Main Relay:

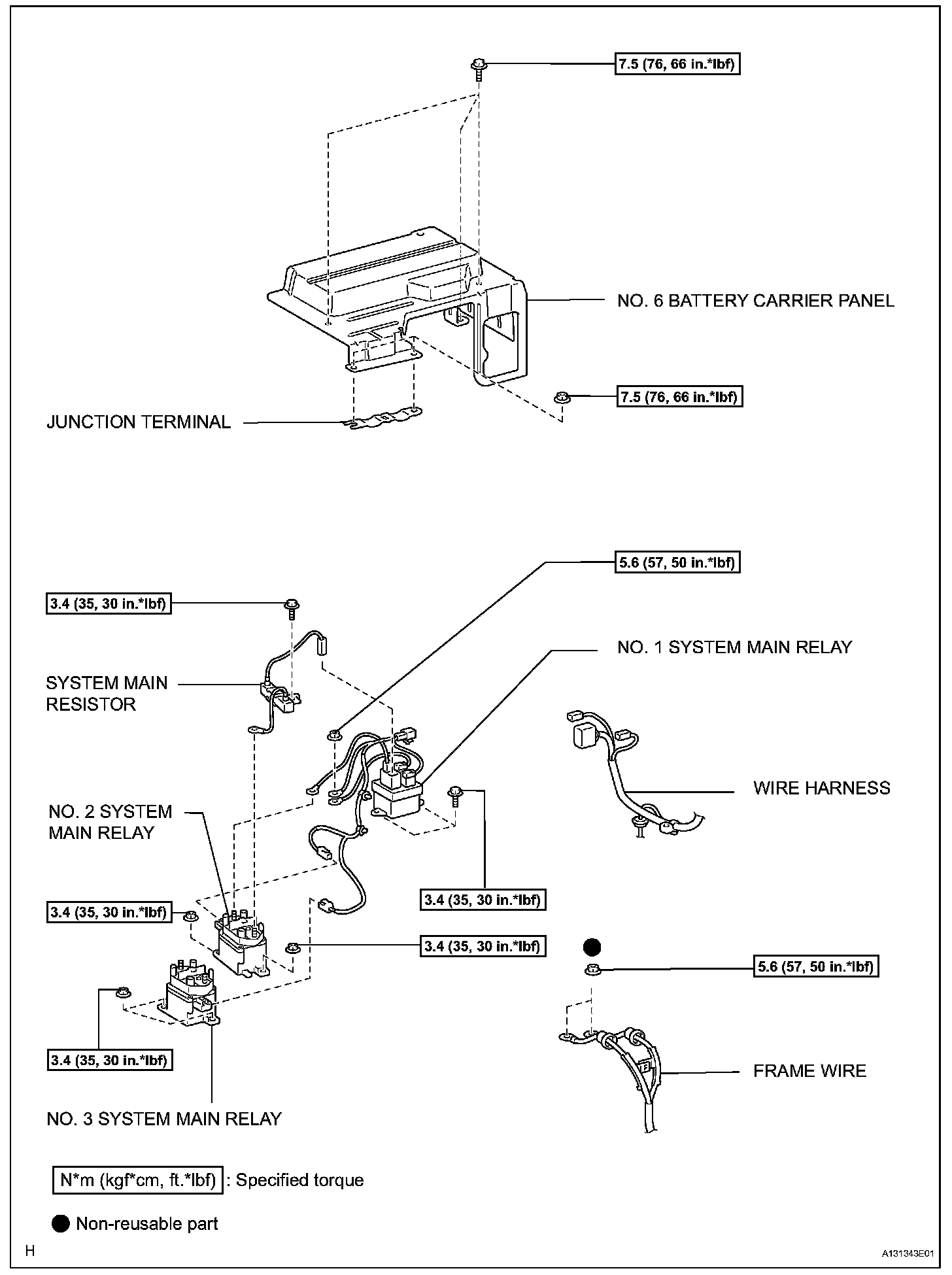

System Main Relay:
