Computers and Control Systems: Description and Operation

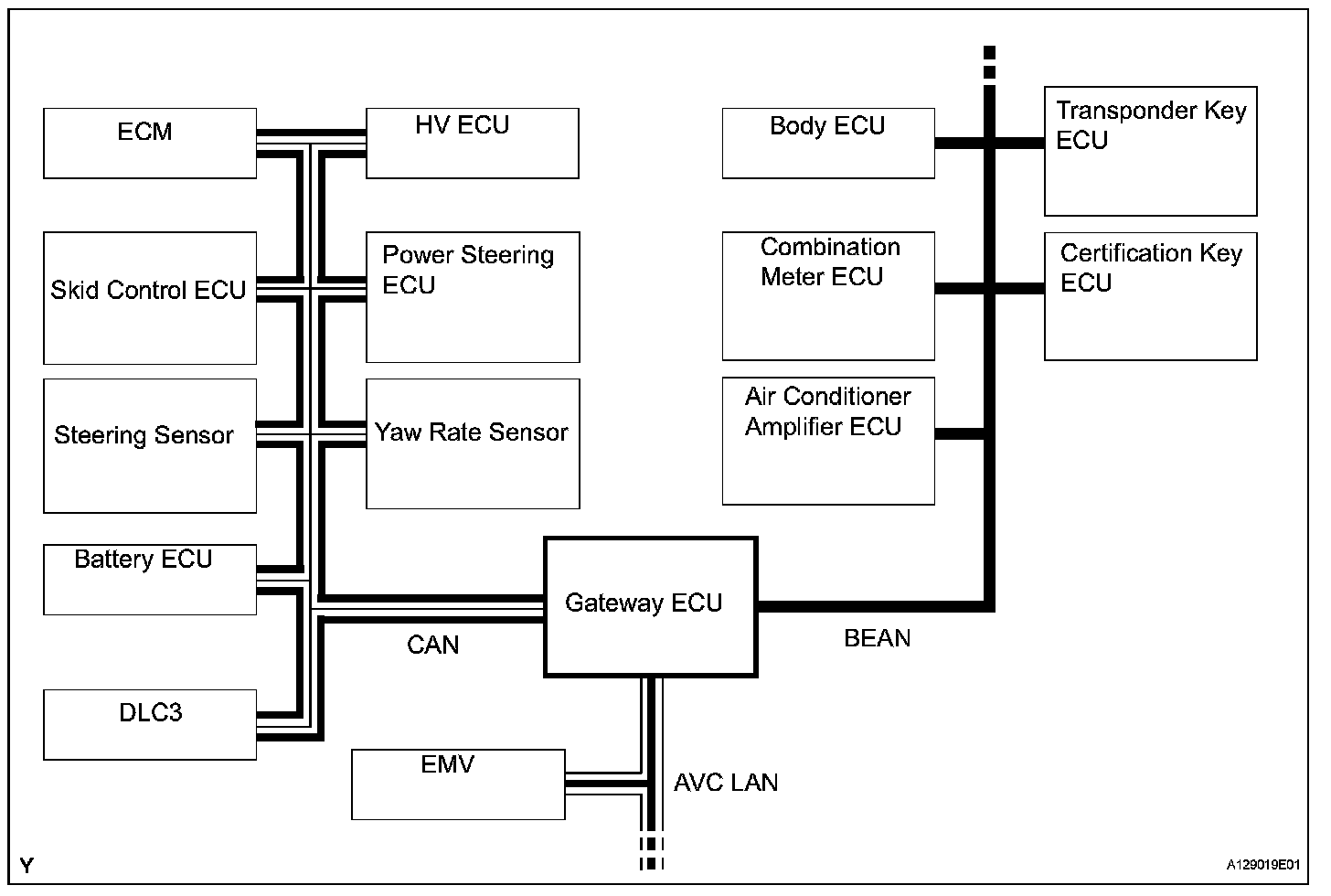

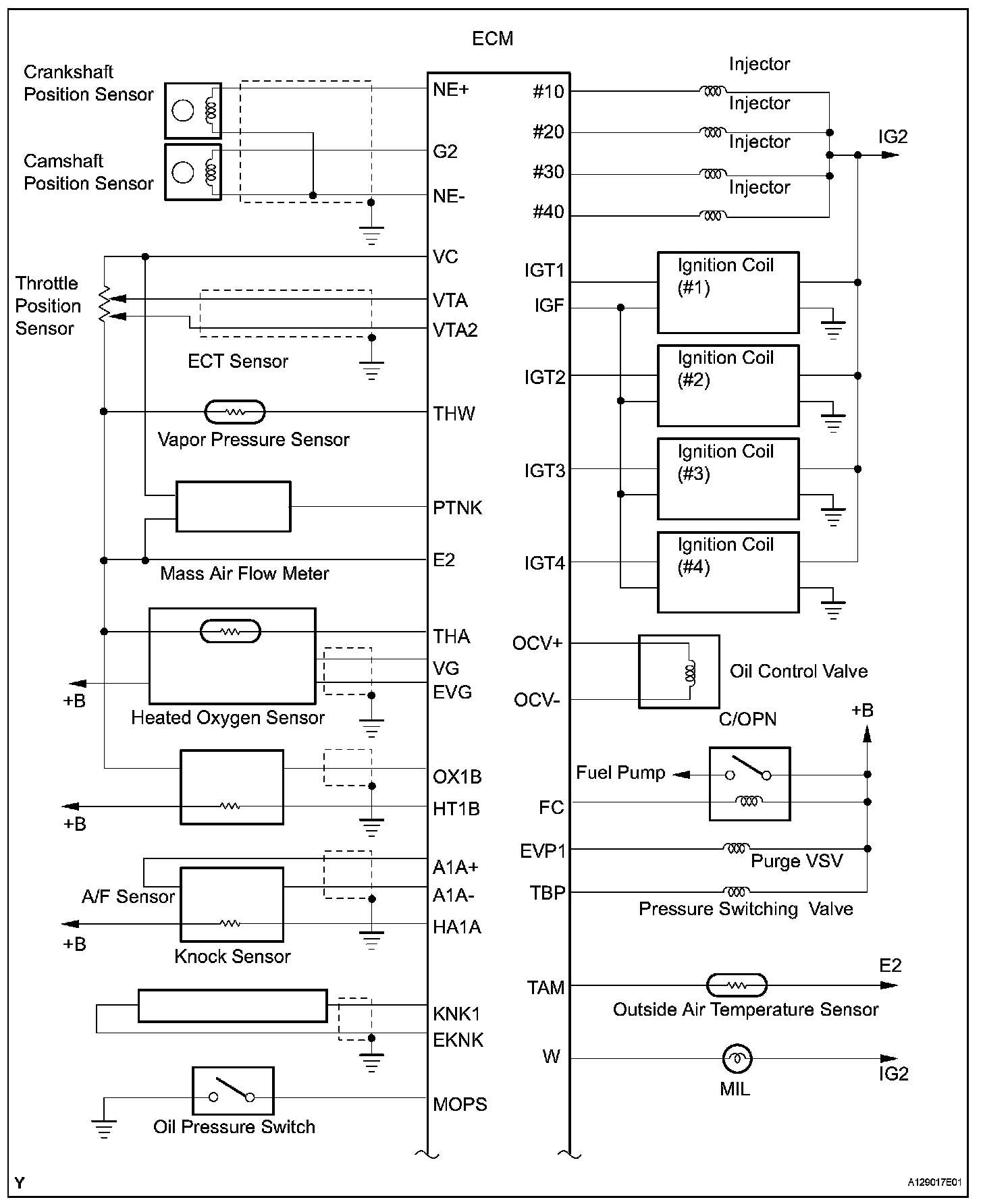

System Diagram (Part 1):

System Diagram (Part 2):

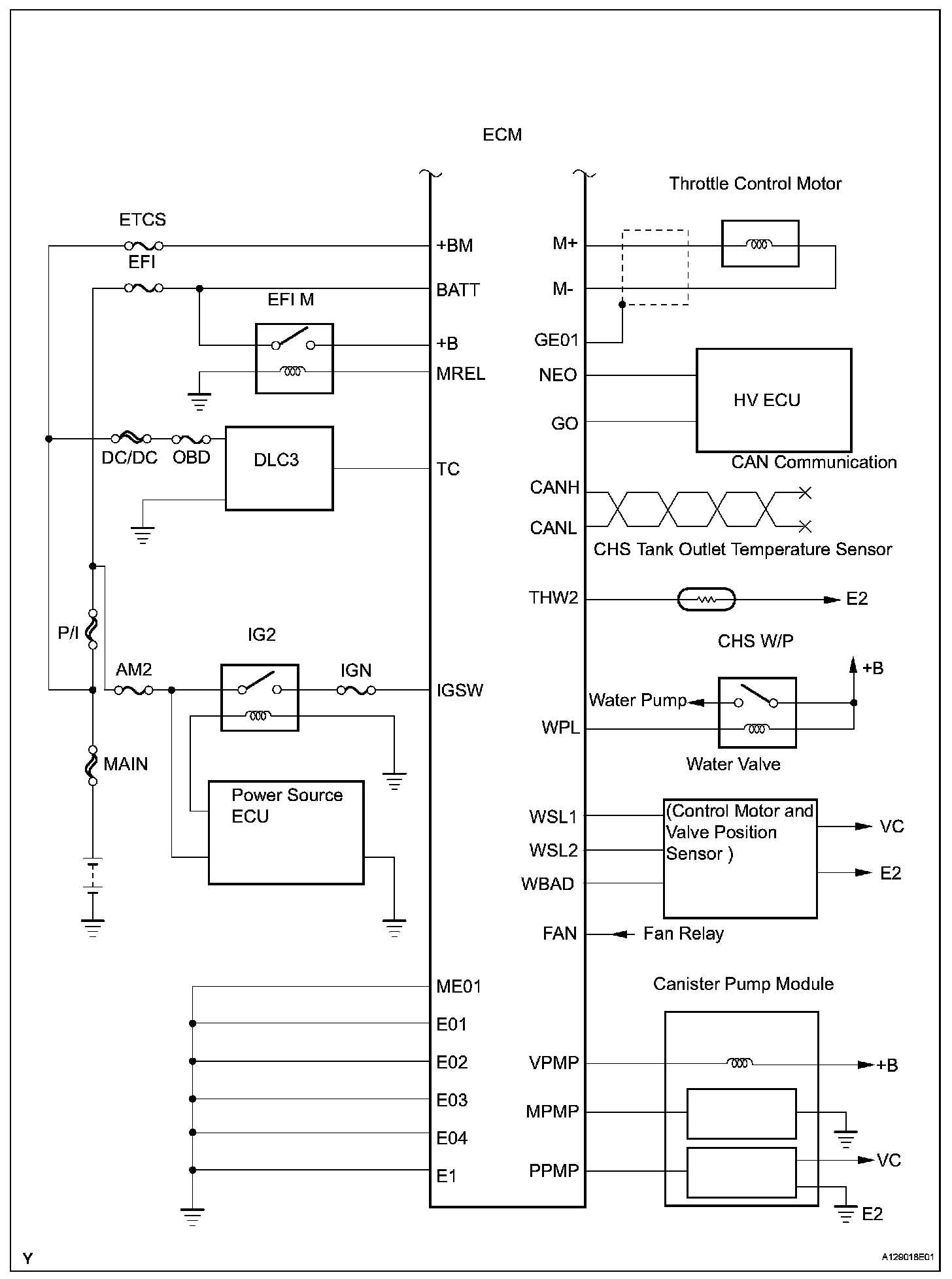

System Diagram (Part 3):

COMMUNICATIONS

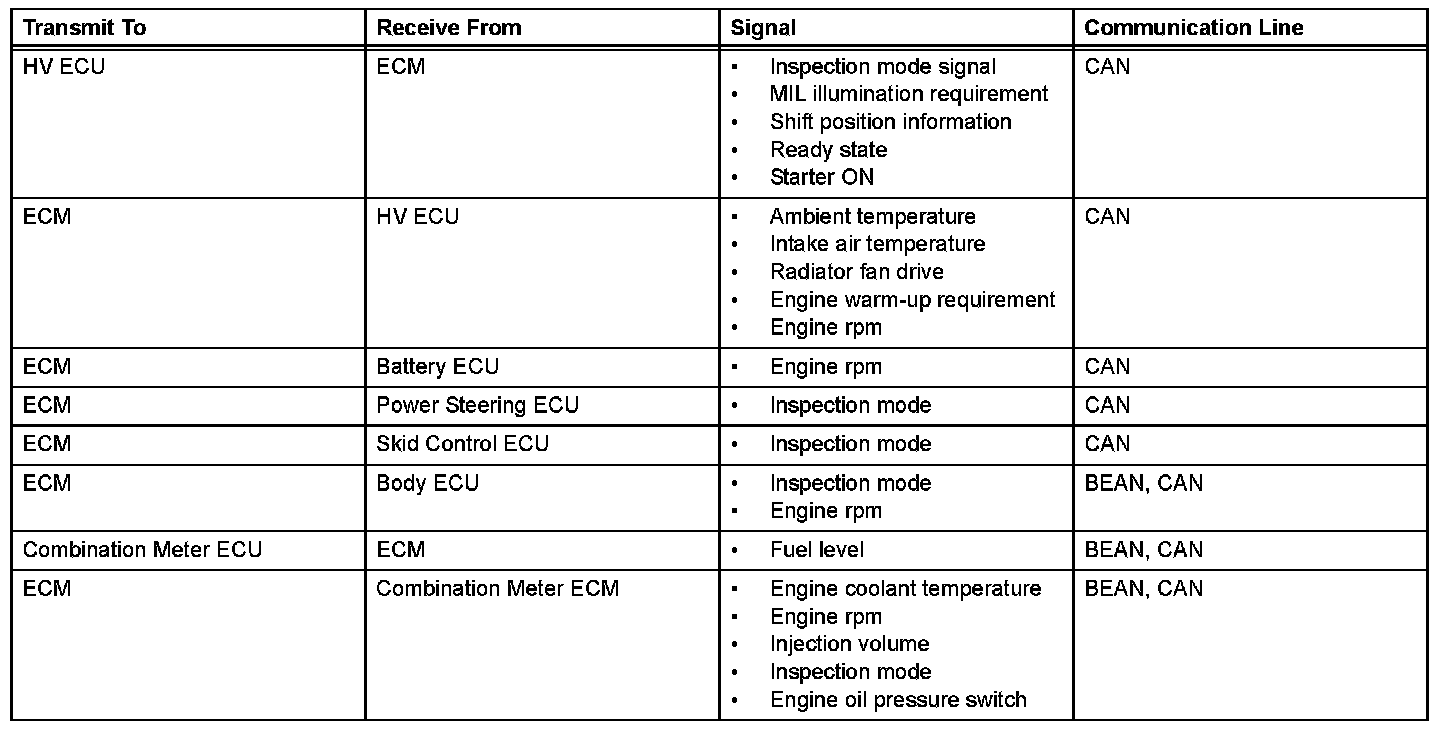

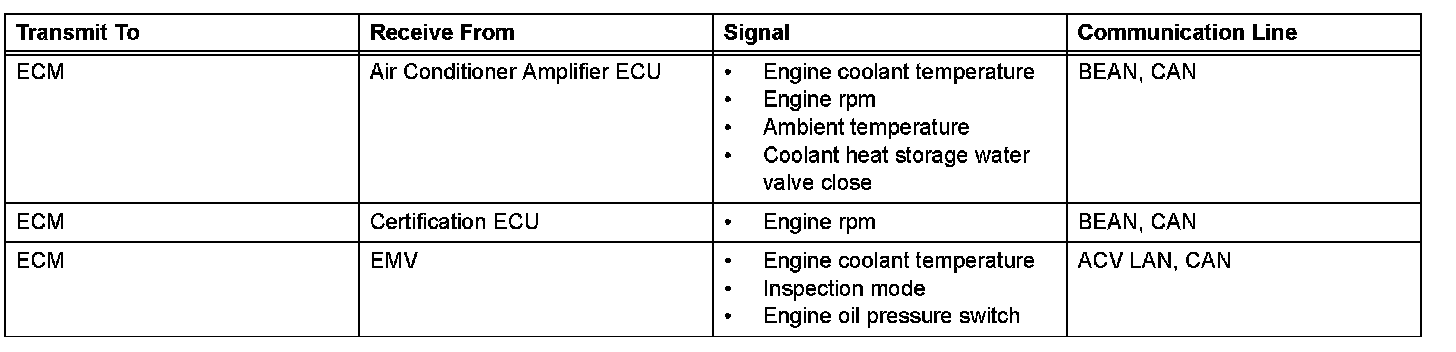

The ECM communicates with the given ECM and ECUs using the signals listed. The table explains receiving and sending signals by ECM or ECU.
