Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

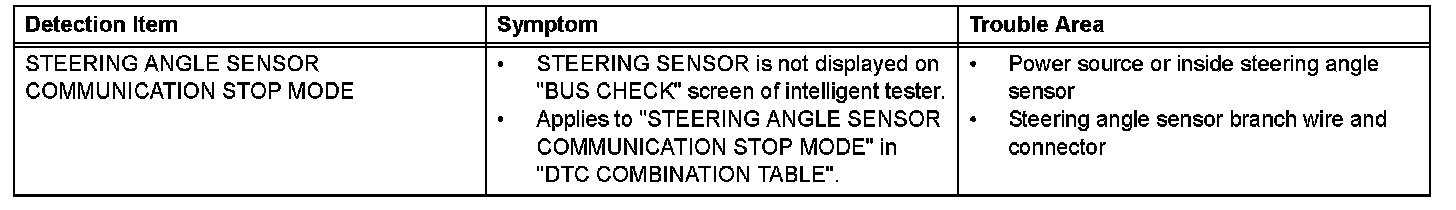

Detection Item:

DESCRIPTION

NOTE: This detection item is not applicable to a vehicle without enhanced VSC.

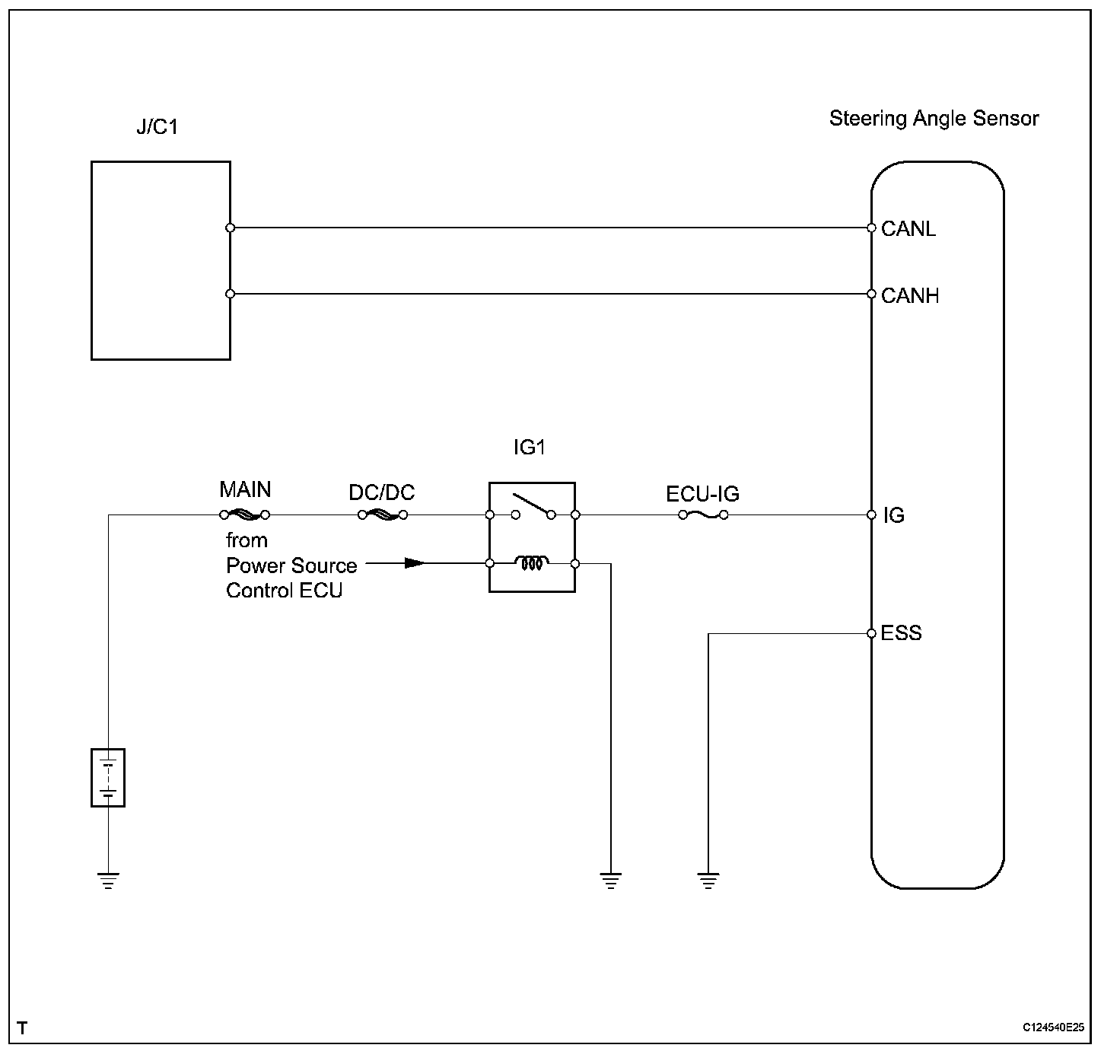

Wiring Diagram:

Step 1-2:

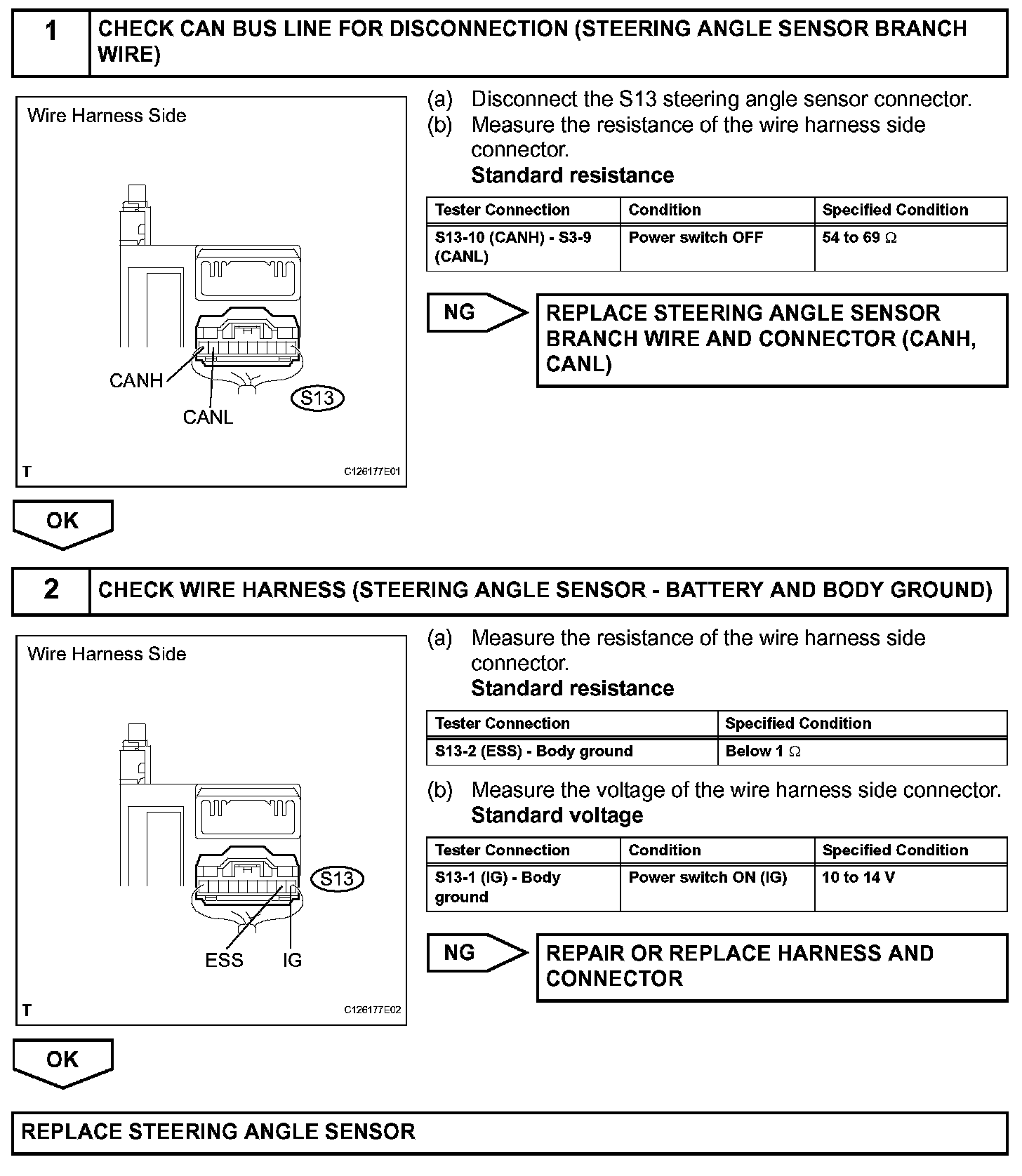

INSPECTION PROCEDURE
