Map Light: Testing and Inspection
PERSONAL LIGHT ASSEMBLYINSPECTION
1. MAP LIGHT ASSEMBLY

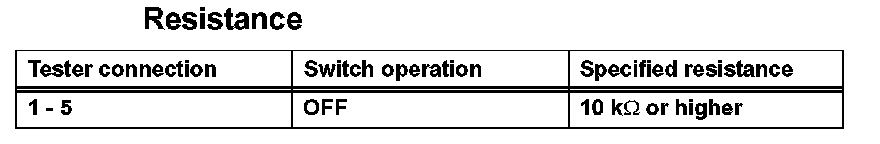

a. Measure the resistance according to the value(s) in the table.

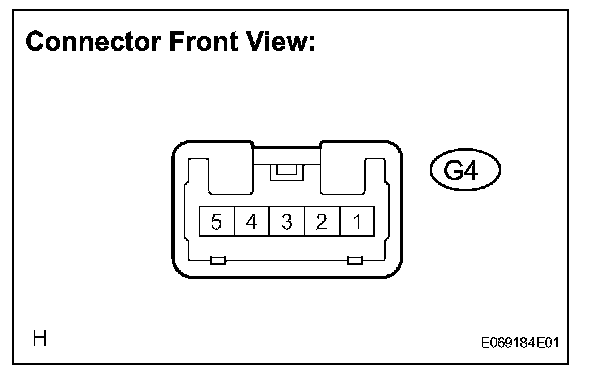

b. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 5, then check that the light comes on when the switch is in the ON position.
OK:
Light comes on.
