Drive Belt: Service and Repair
REMOVAL1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE ENGINE COVER SUB-ASSEMBLY NO.1

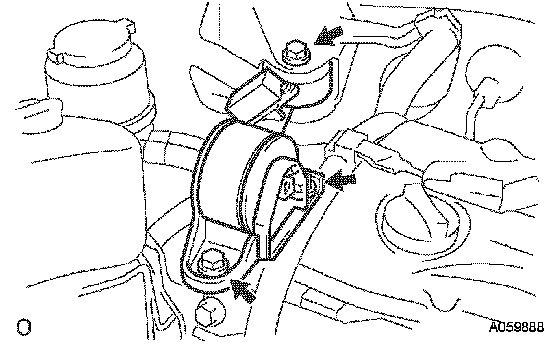

4. REMOVE ENGINE MOVING CONTROL ROD W/BRACKET
a. Remove the 3 bolts and control rod.
5. REMOVE ENGINE MOUNTING STAY NO.2 RH
6. REMOVE ENGINE MOUNTING BRACKET NO.2 RH

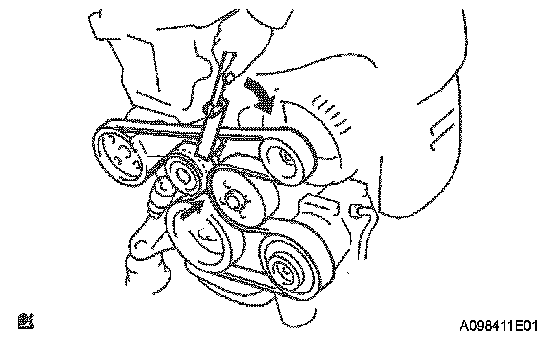

7. REMOVE FAN AND GENERATOR V BELT
a. Slowly turn the belt tensioner clockwise for more than 3 seconds, and remove the drive belt by using SST.
SST 09249-63010
INSTALLATION

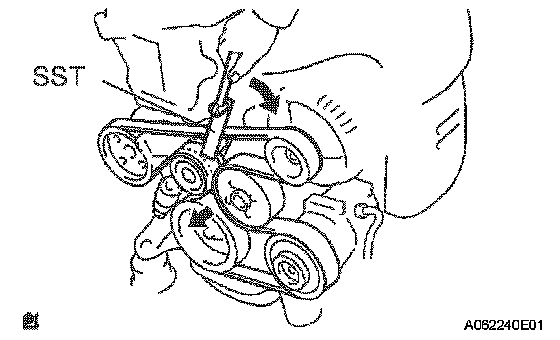

1. INSTALL FAN AND GENERATOR V BELT
a. Slowly turn the belt tensioner clockwise for more than 3 seconds, and install the drive belt by using SST.
SST 09249-63010
2. INSTALL ENGINE MOUNTING BRACKET NO.2 RH
Torque: 52 Nm (531 kgf-cm, 38 ft. lbs.)
3. INSTALL ENGINE MOUNTING STAY NO.2 RH
Torque: 64 Nm (653 kgf-cm, 47 ft. lbs.)

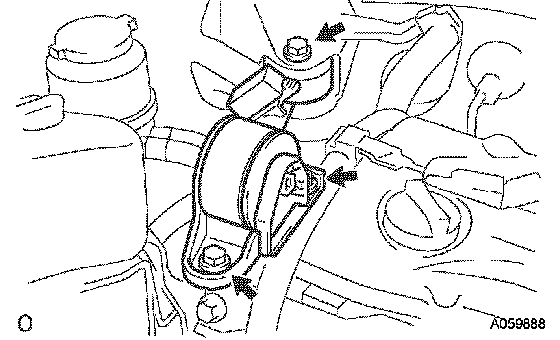

4. INSTALL ENGINE MOVING CONTROL ROD W/BRACKET
a. Install the engine control rod with the 3 bolts.
Torque: 64 Nm (653 kgf-cm, 47 ft. lbs.)
5. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
