Starting System: Description and Operation

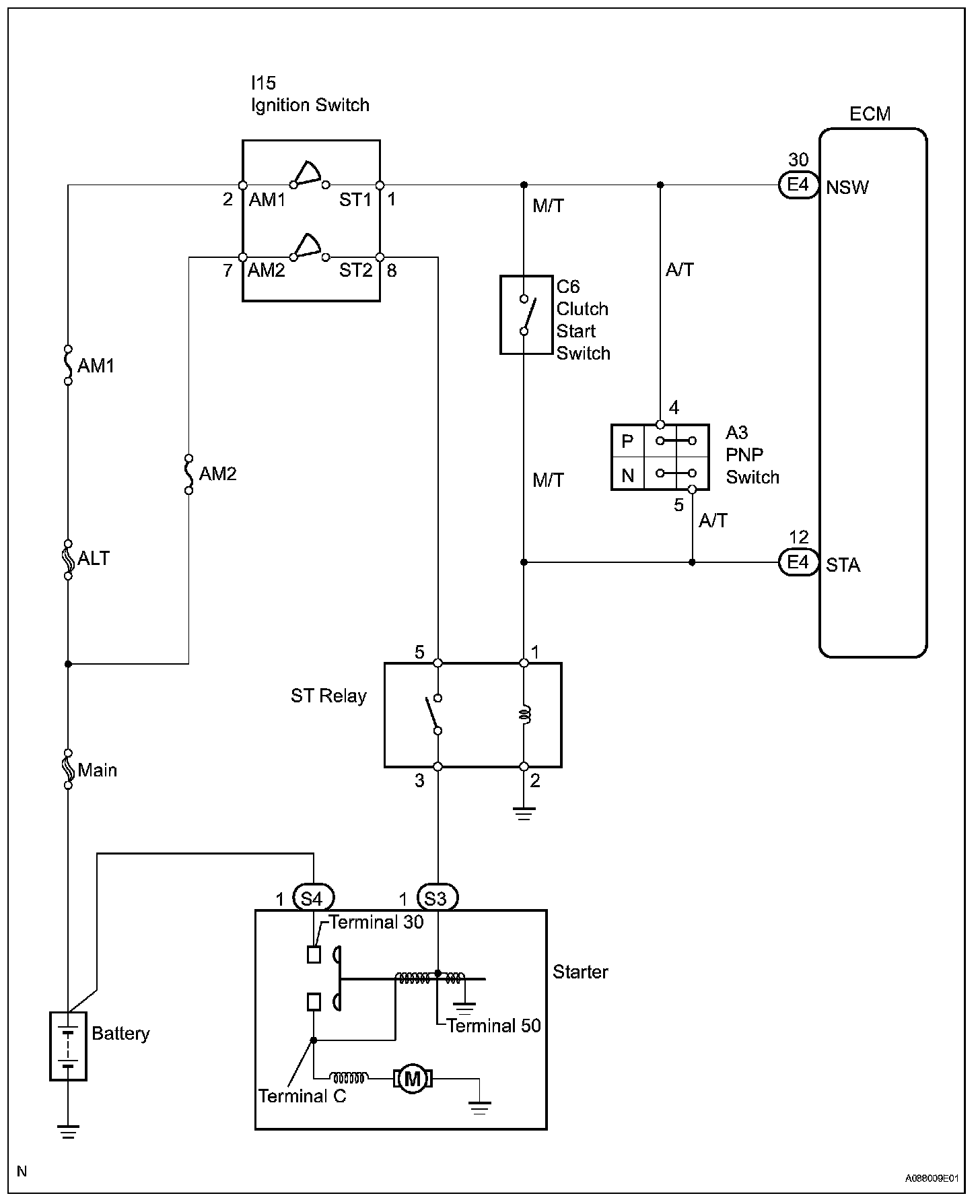

SYSTEM DIAGRAMSystem Diagram:
The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch or clutch start switch.
The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch or clutch start switch.
