Blower Motor: Testing and Inspection
ON-VEHICLE INSPECTIONINSPECT BLOWER W/FAN MOTOR SUB-ASSEMBLY

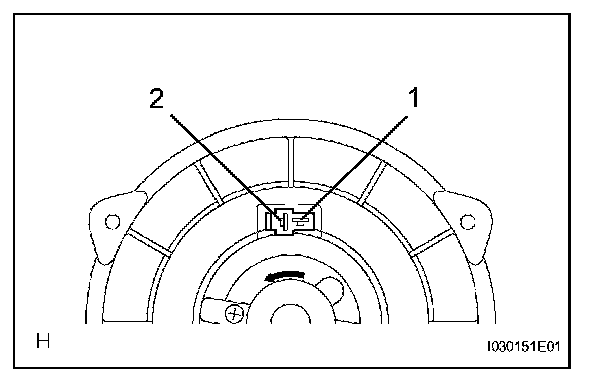

Connect the positive (+) lead from the battery to terminal 1 and negative (-) to terminal 2, then check that the motor operates smoothly.
If operation is not as specified, replace the blower motor.
