Home
>>
Toyota
>>
2007
>>
Matrix L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

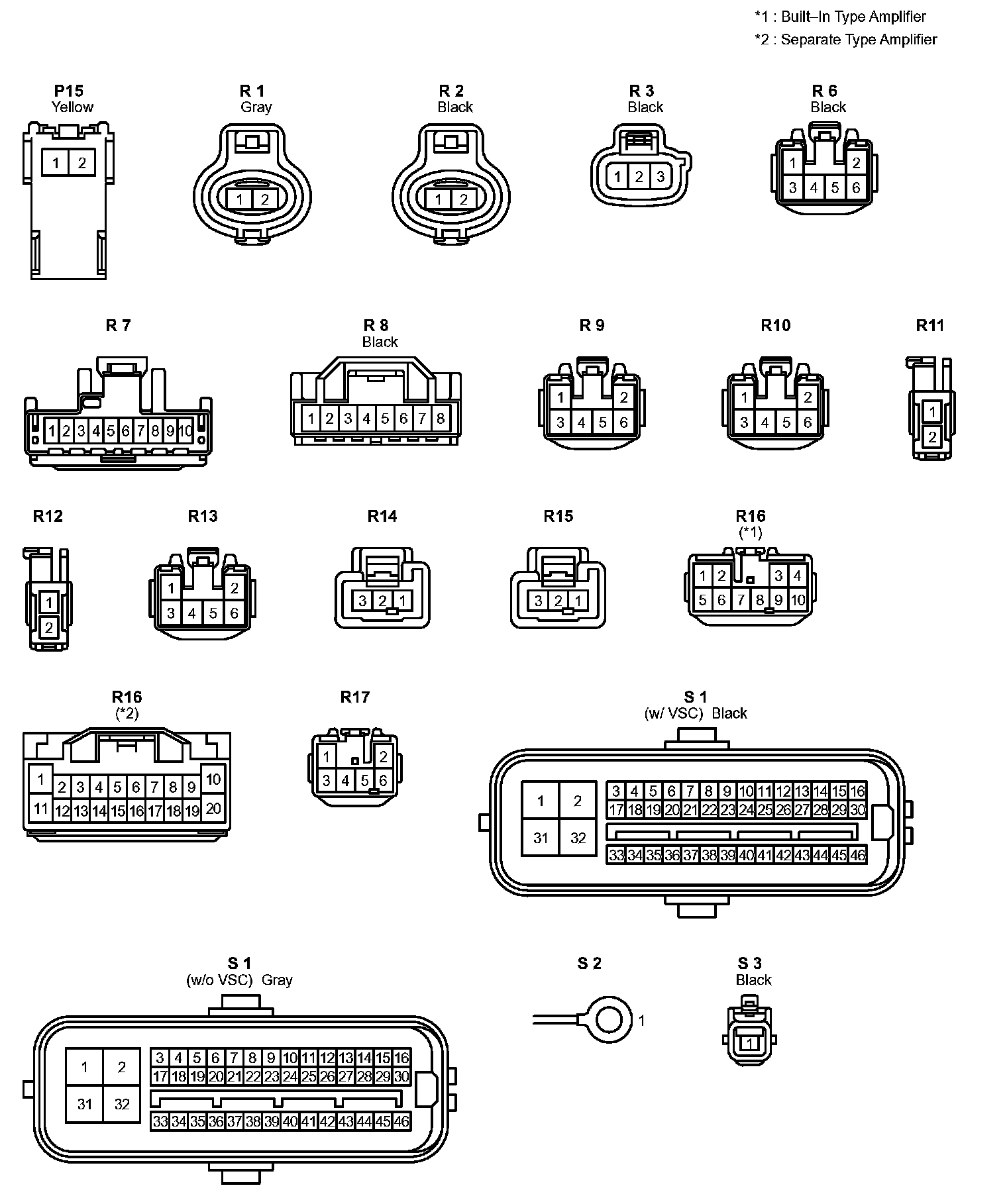

P15 - S3
P15 - S3
P15 - S3:
