Home >> Toyota >> 2007 >> Matrix L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> S4 - V1

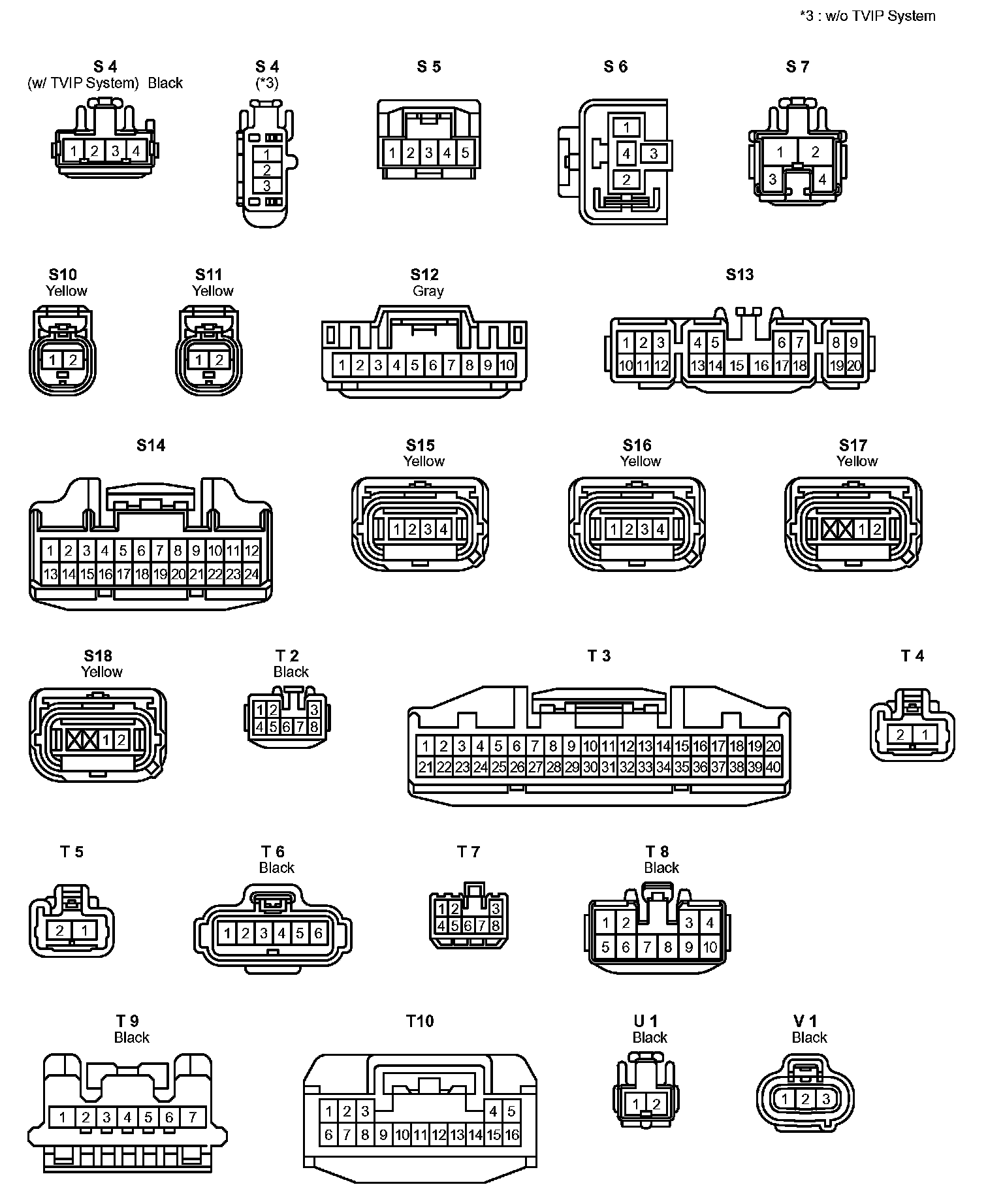

S4 - V1

S4 - V1:
