Fail-Safe Chart
FAIL-SAFE CHART
If any of the given codes are recorded, the ECM enters fail-safe mode.

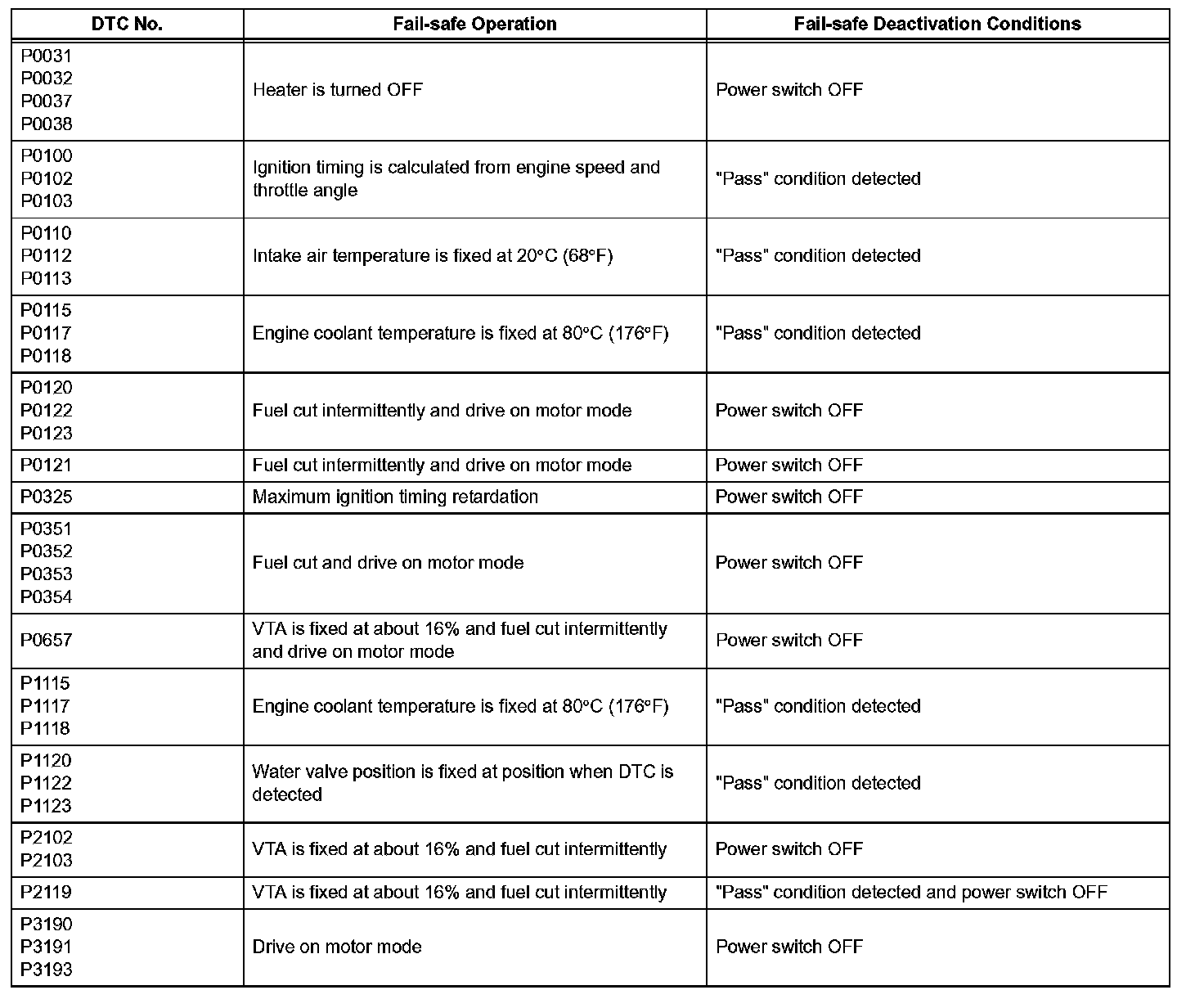

Fail-Safe Chart:
