Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

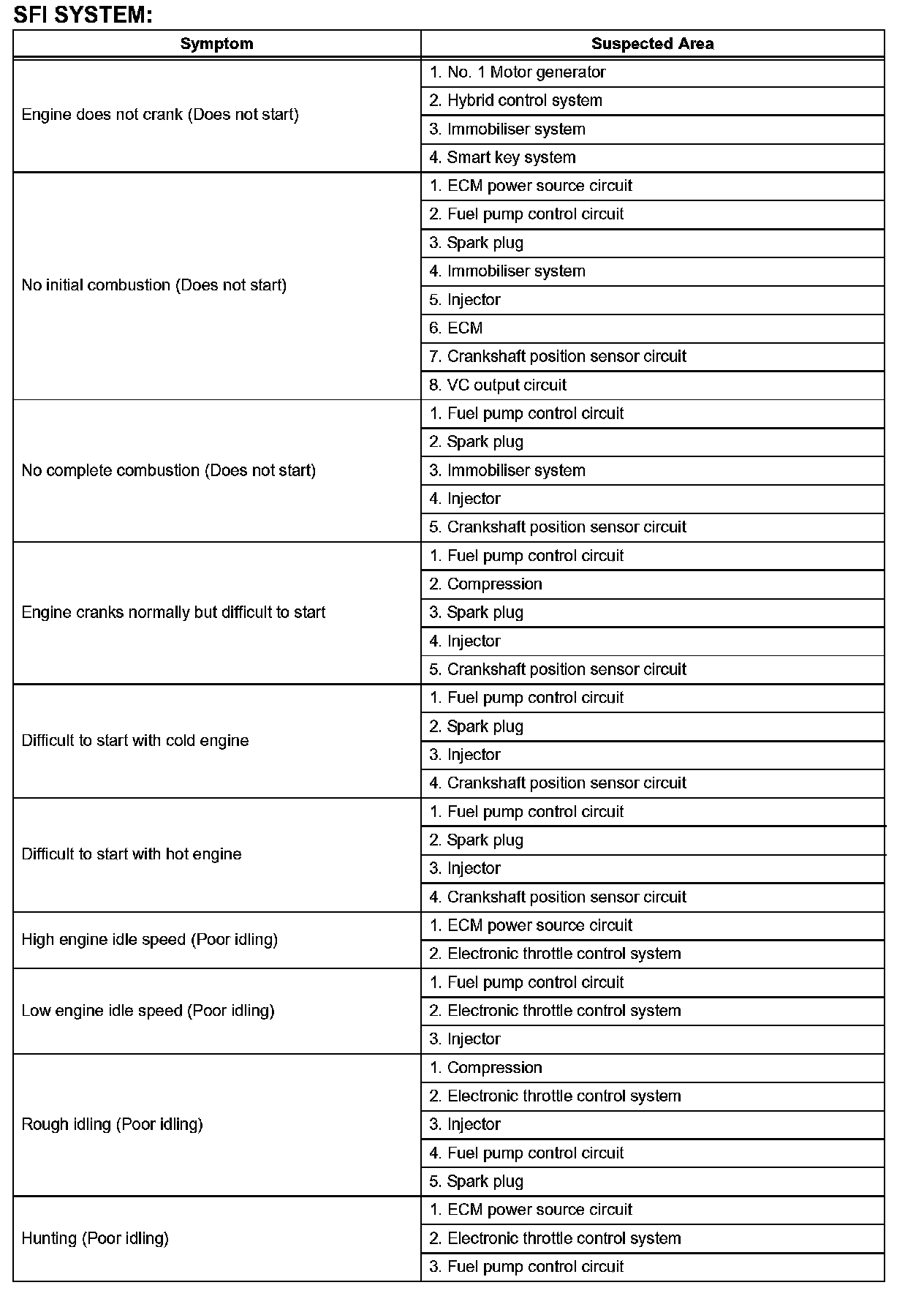

Problem Symptom Table-SFI System (Part 1):

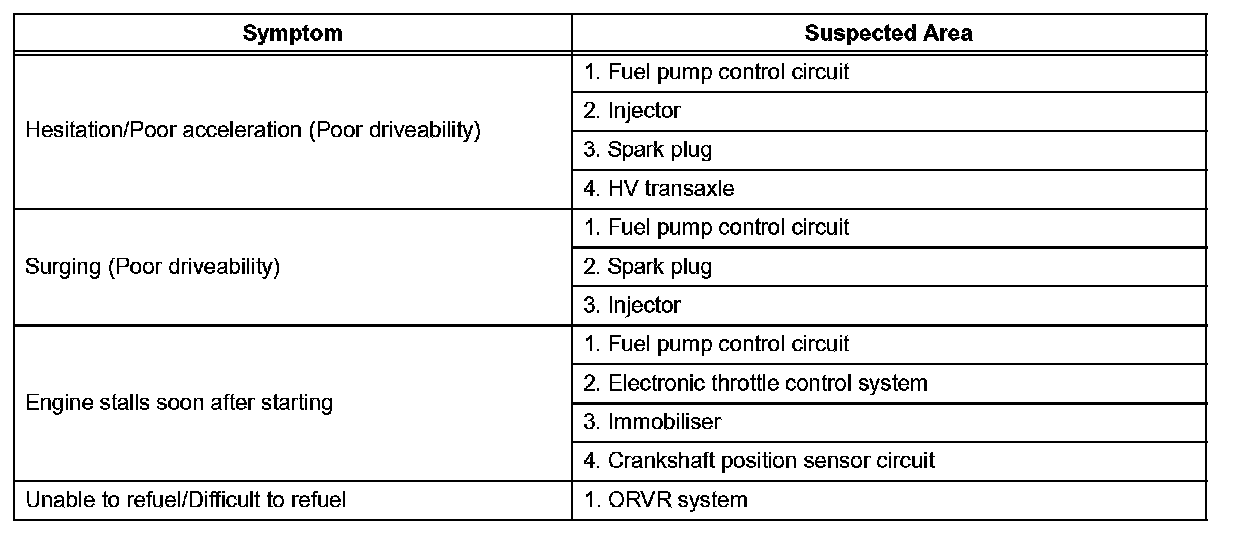

Problem Symptom Table-SFI System (Part 2):

When the malfunction is not confirmed in the diagnostic trouble code check and the problem still cannot be confirmed in the basic inspection, use this table and troubleshoot according to the priority order given.
