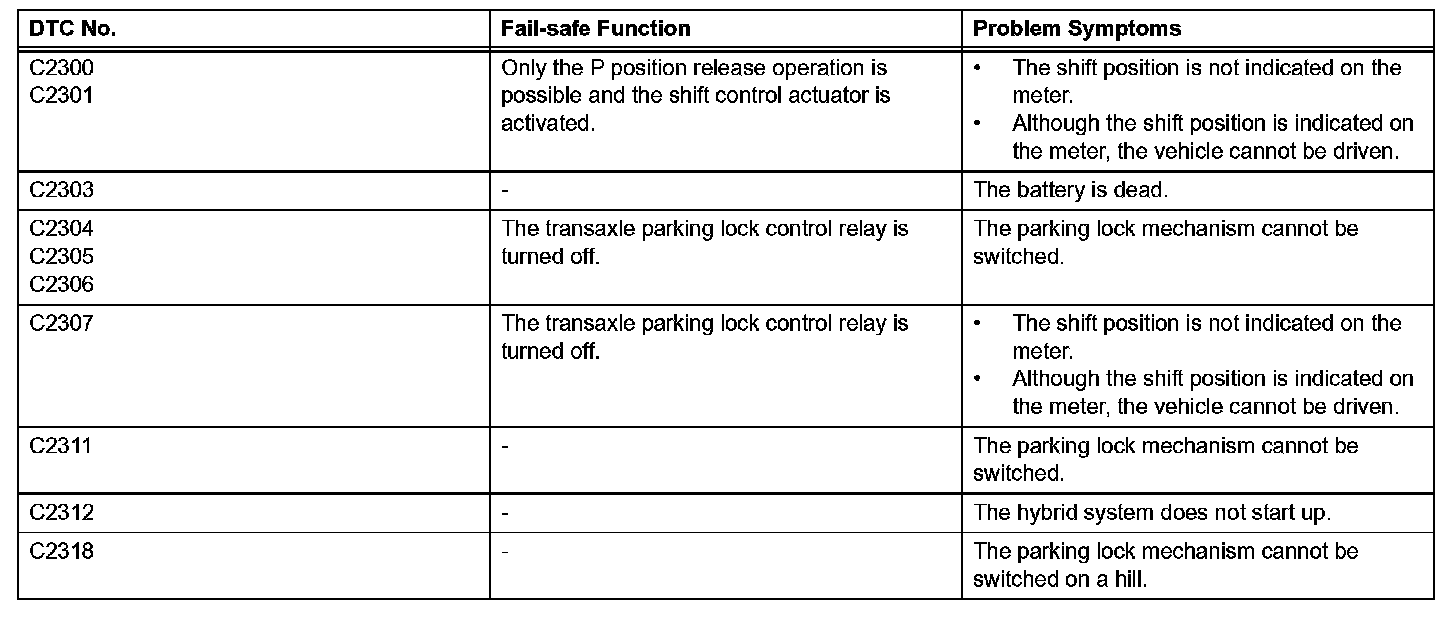

FAIL-SAFE CHART
C2300-C2318:
If the transmission control ECU detects a malfunction, the fail-safe functions shown in the table are activated.
