Components
>>

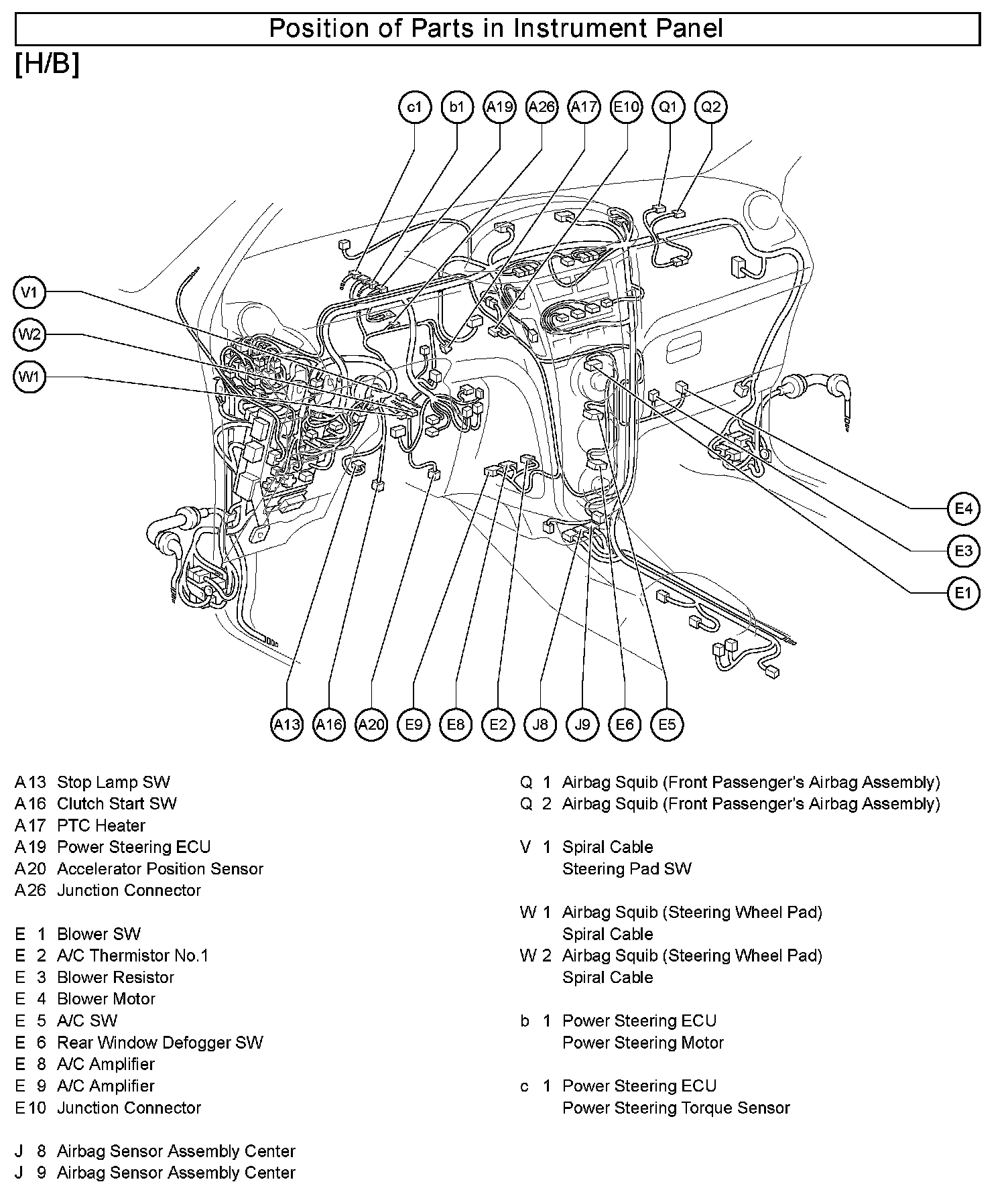

Position of Parts In Instrument Panel

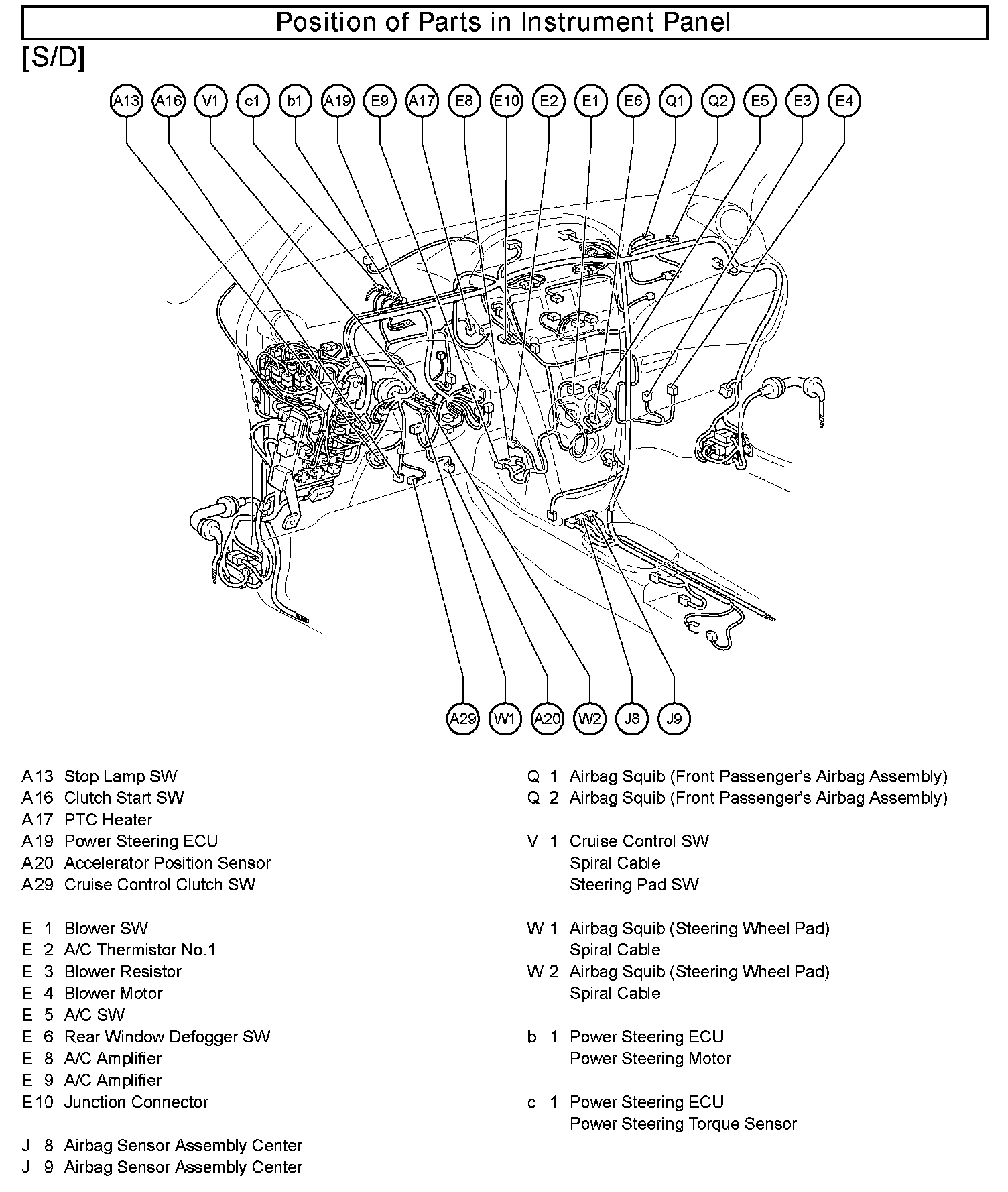

Position of Parts In Instrument Panel
A/C - St:
A/C - St:
