Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2007
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
ED1 - GD2
ED1 - GD2

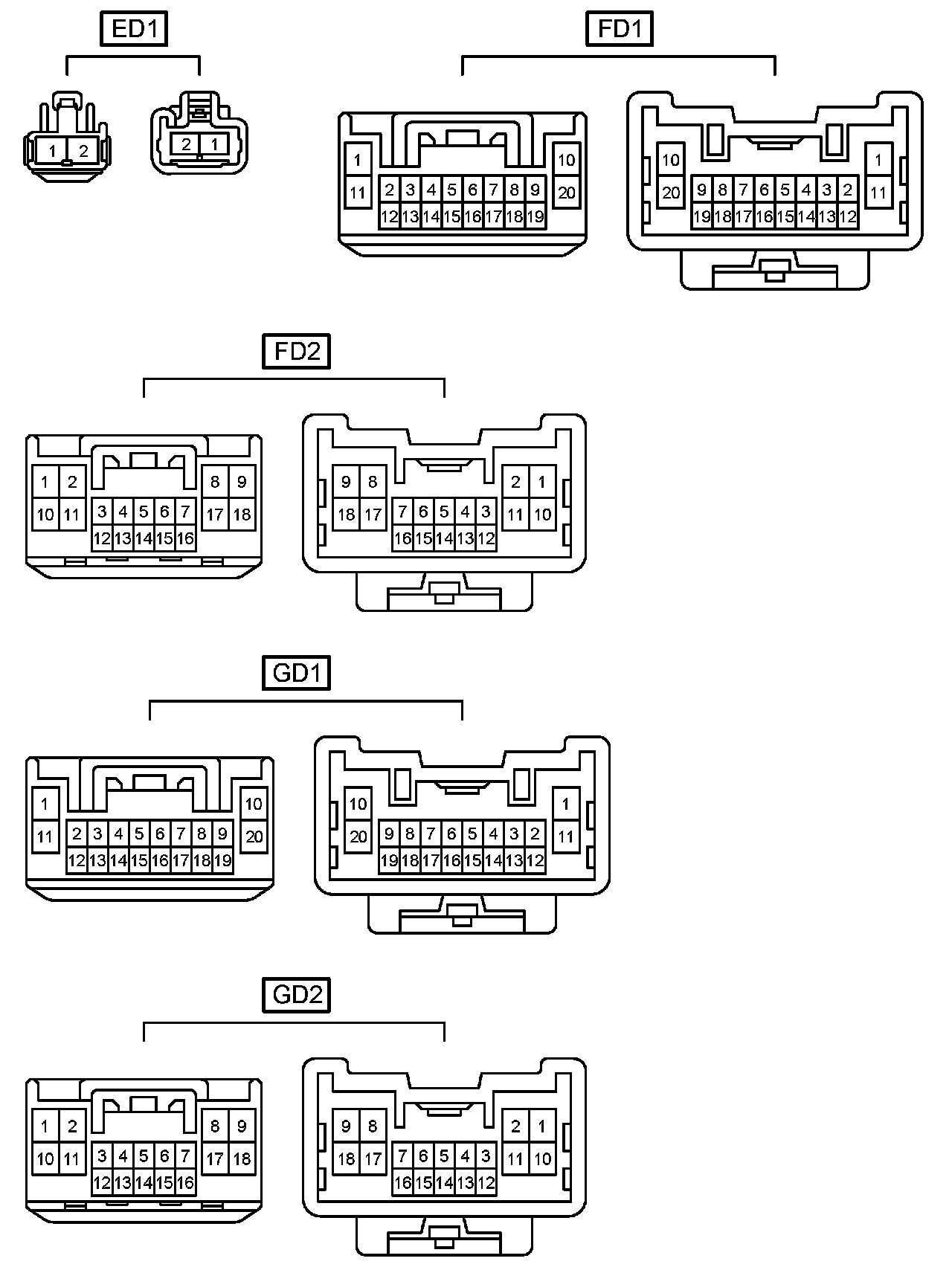

ED1 - GD2:
