Condenser (For Hatchback)

DISASSEMBLY




1. REMOVE COOLER DRYER

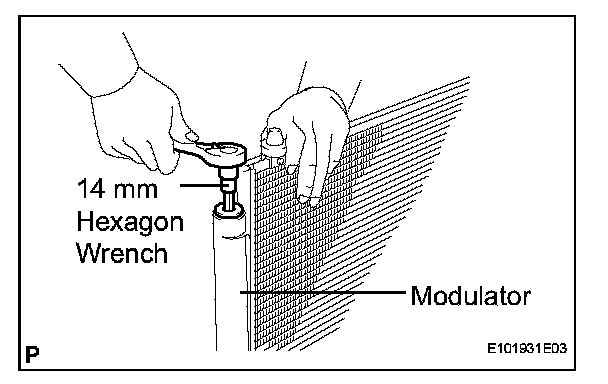

a. Using a 14 mm straight hexagon wrench, remove the cap from the modulator.

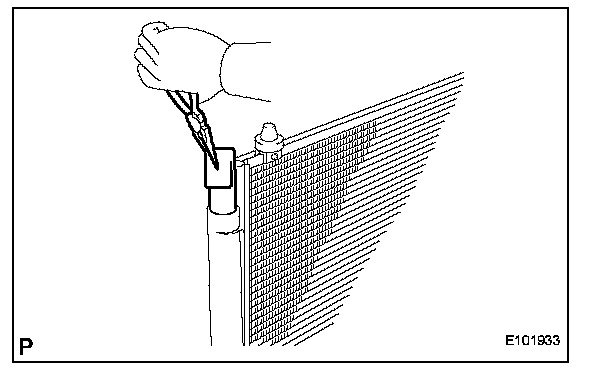

b. Using pliers, remove the cooler dryer.

REASSEMBLY




1. INSTALL COOLER DRYER

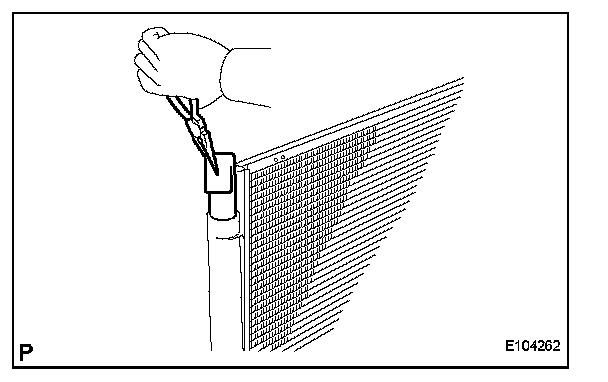

a. Using pliers, install the cooler dryer onto the modulator.

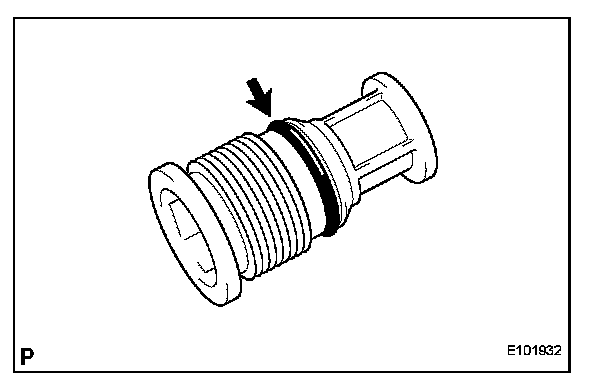

b. Apply sufficient compressor oil to a new O-ring and the fitting surface of the cap.

Compressor oil: ND-OIL 8 or the equivalent

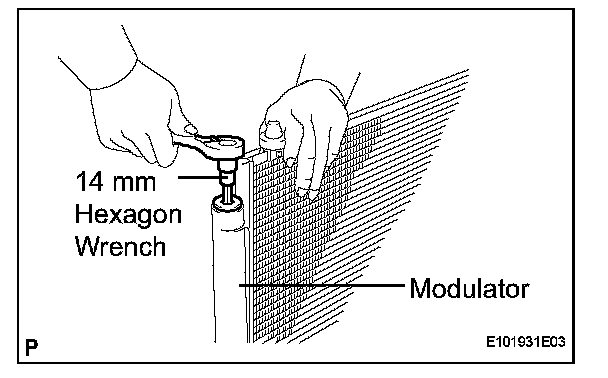

c. Using a 14 mm straight hexagon wrench, install the cap onto the cooler condenser core.

Torque: 2.9 N.m (30 kgf.cm, 25 in.lbf)
