Speed Sensor

SPEED SENSOR

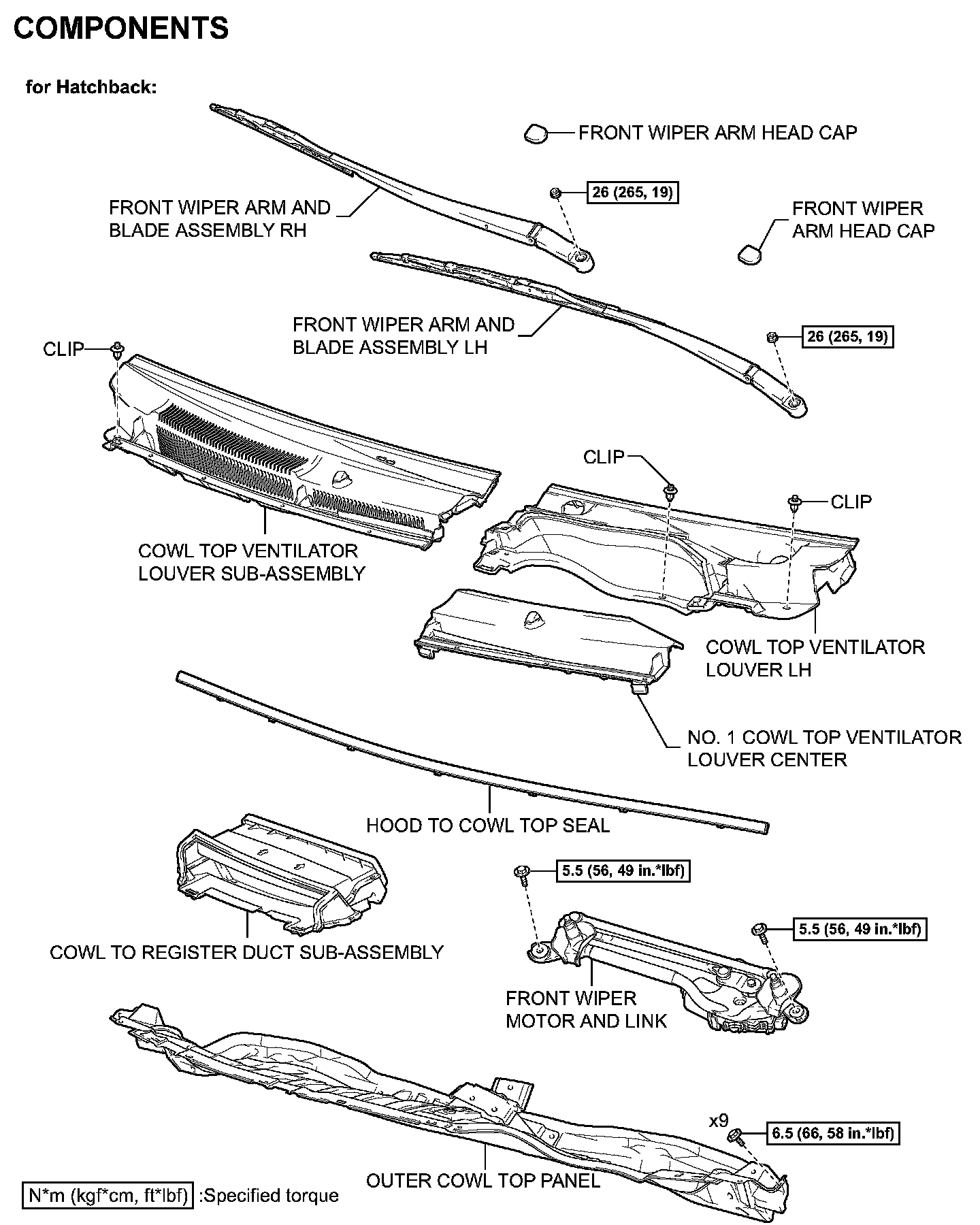

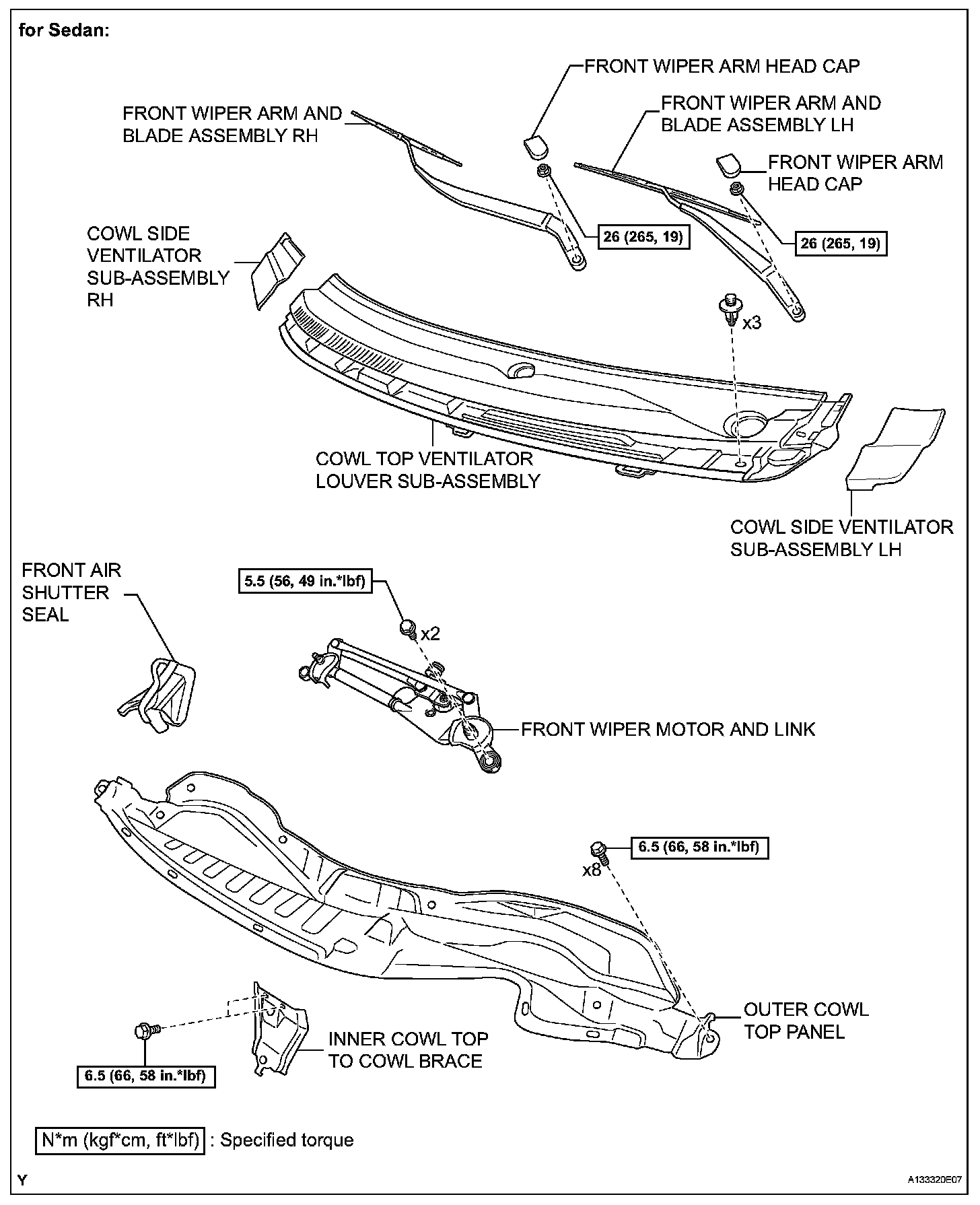

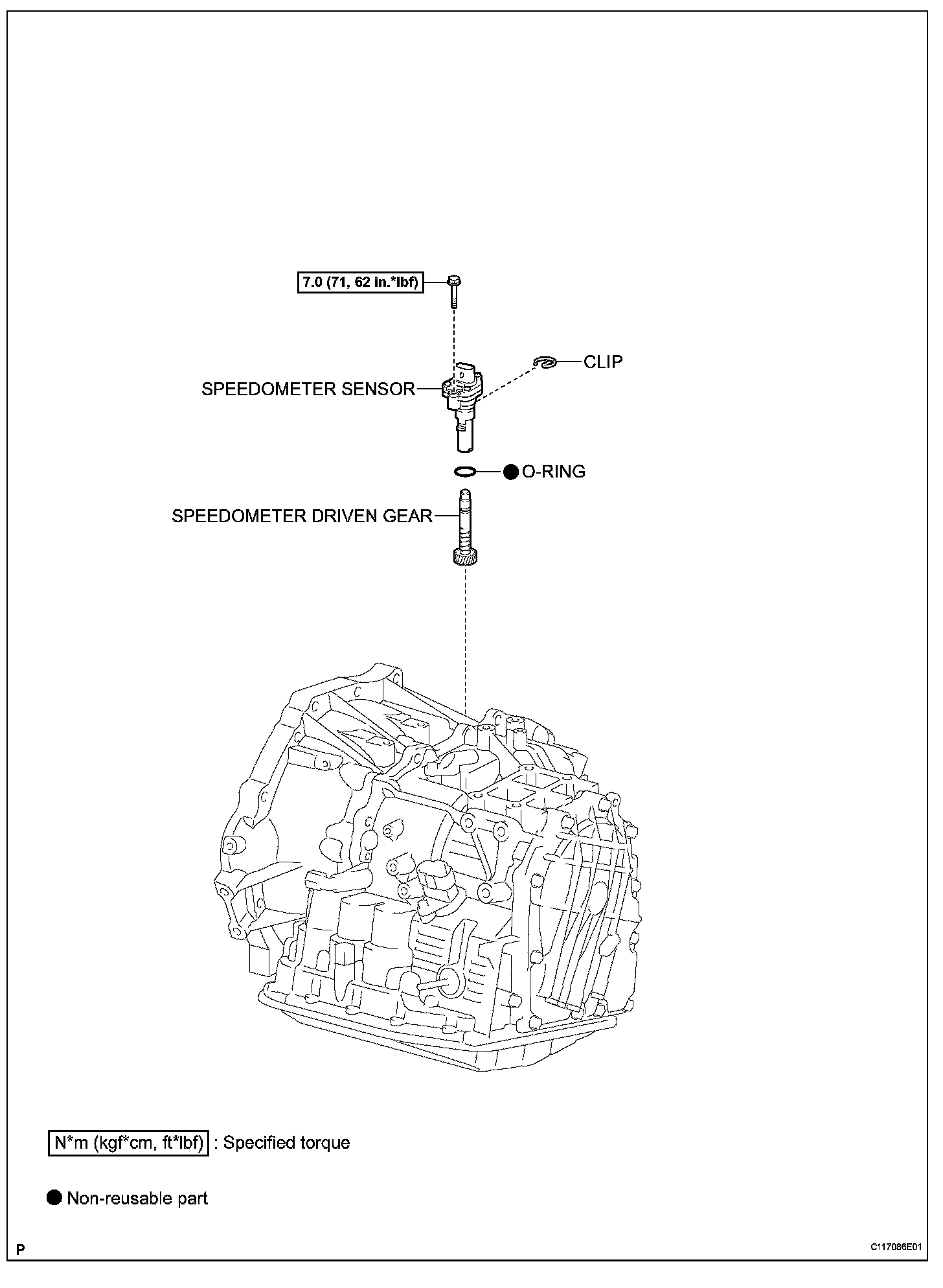

COMPONENTS (Part 1):

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

REMOVAL
1. REMOVE FRONT WIPER ARM HEAD CAP
2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
4. REMOVE HOOD TO COWL TOP SEAL (for Hatchback)
5. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan)
6. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan)
7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
8. REMOVE COWL TOP VENTILATOR LOUVER LH (for Hatchback)
9. REMOVE FRONT WIPER MOTOR AND LINK
10. REMOVE COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback)
11. REMOVE FRONT AIR SHUTTER SEAL (for Sedan)
12. REMOVE OUTER COWL TOP PANEL

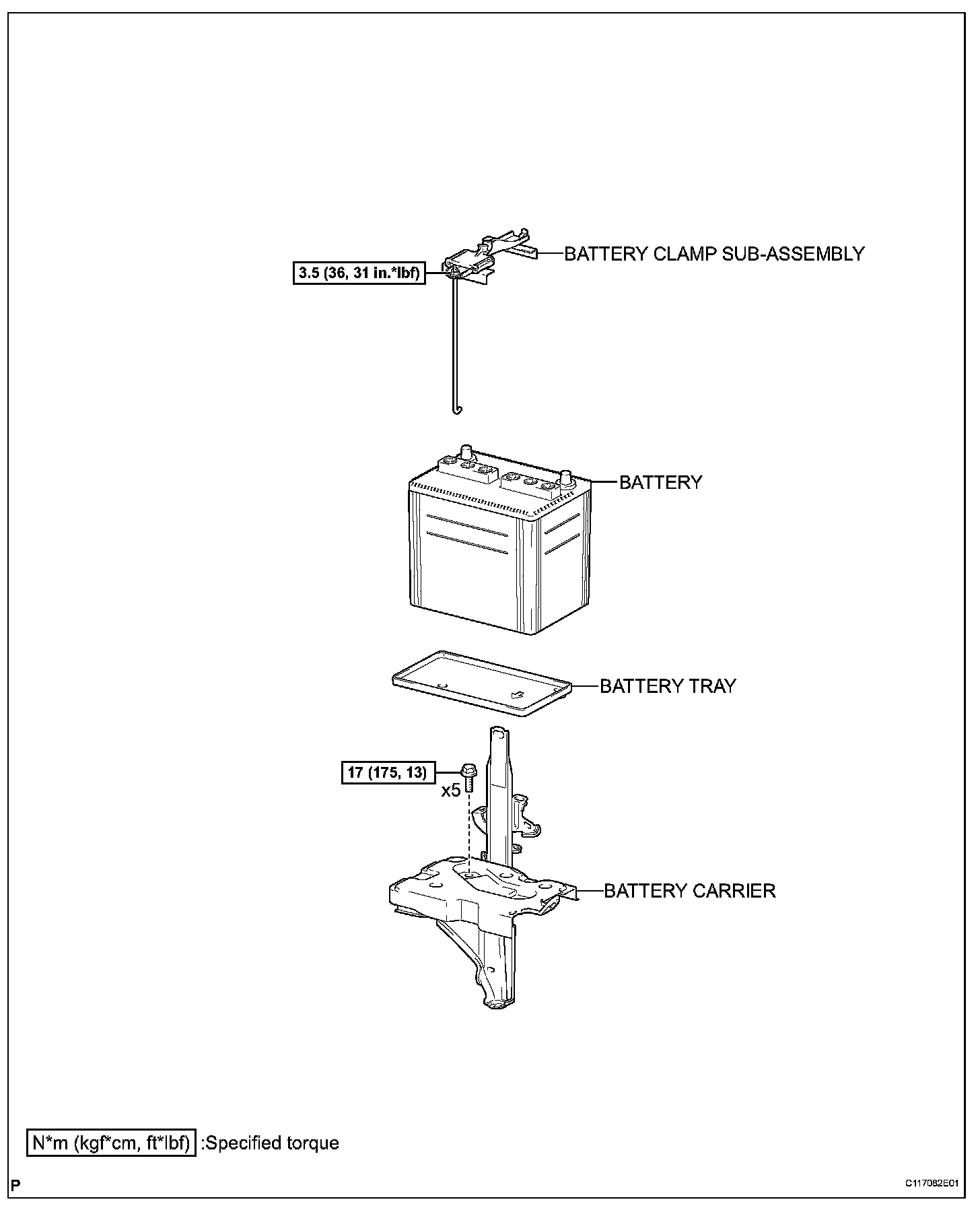

13. REMOVE BATTERY
14. REMOVE BATTERY TRAY
15. REMOVE BATTERY CARRIER





16. REMOVE SPEEDOMETER SENSOR

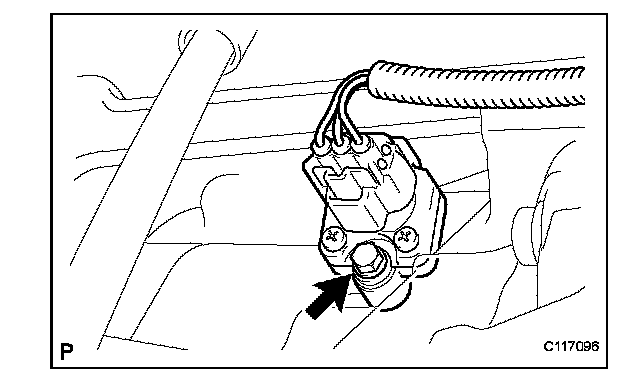

(a) Disconnect speedometer sensor connector.

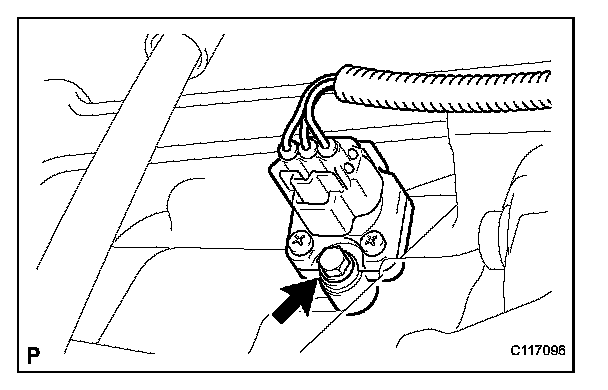

(b) Remove the bolt and speedometer sensor.





17. REMOVE SPEEDOMETER DRIVEN GEAR

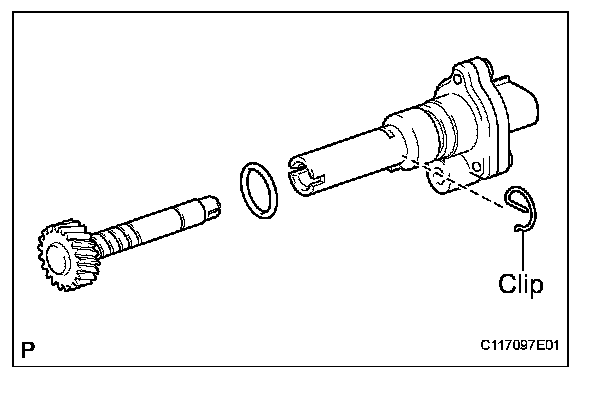

(a) Remove the clip and driven gear from the speedometer sensor.
(b) Remove the O-ring from the speedometer sensor.

INSPECTION





1. INSPECT SPEEDOMETER SENSOR

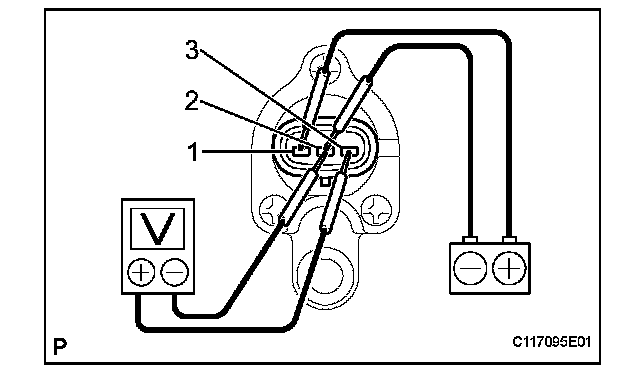

(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
(b) Connect the positive (+) lead from the tester to terminal 3 and the negative (-) lead to terminal 2.
(c) Rotate the shaft.
(d) Check that the voltage output varies between 0 V and 11 V between terminals 2 and 3.

HINT: The voltage output oscillates more than 4 times every revolution of the speed sensor shaft. If the operation is not as specified, replace the sensor.

INSTALLATION

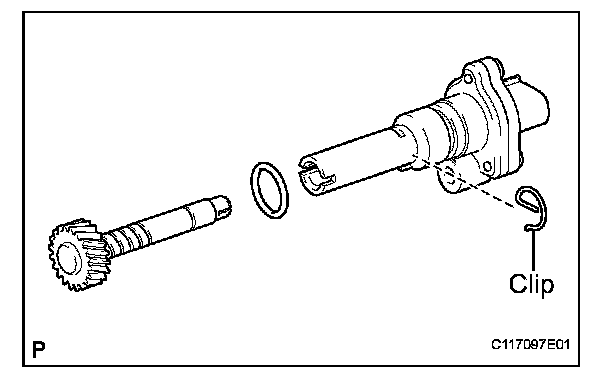

1. INSTALL SPEEDOMETER DRIVEN GEAR
(a) Coat a new O-ring with ATF and install it onto the speedometer sensor.
(b) Install the driven gear into the speedometer sensor with the clip.





2. INSTALL SPEEDOMETER SENSOR
(a) Install the speedometer sensor with the bolt.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
(b) Connect the speedometer sensor connector.
3. INSTALL BATTERY CARRIER
4. INSTALL BATTERY TRAY
5. INSTALL BATTERY
6. INSTALL OUTER COWL TOP PANEL
7. INSTALL COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback)
8. INSTALL FRONT AIR SHUTTER SEAL (for Sedan)
9. INSTALL FRONT WIPER MOTOR AND LINK
10. INSTALL COWL TOP VENTILATOR LOUVER LH (for Hatchback)
11. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
12. INSTALL HOOD TO COWL TOP SEAL (for Hatchback)
13. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan)
14. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan)
15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
17. INSTALL FRONT WIPER ARM HEAD CAP
