Transmission Revolution Sensor

TRANSMISSION REVOLUTION SENSOR

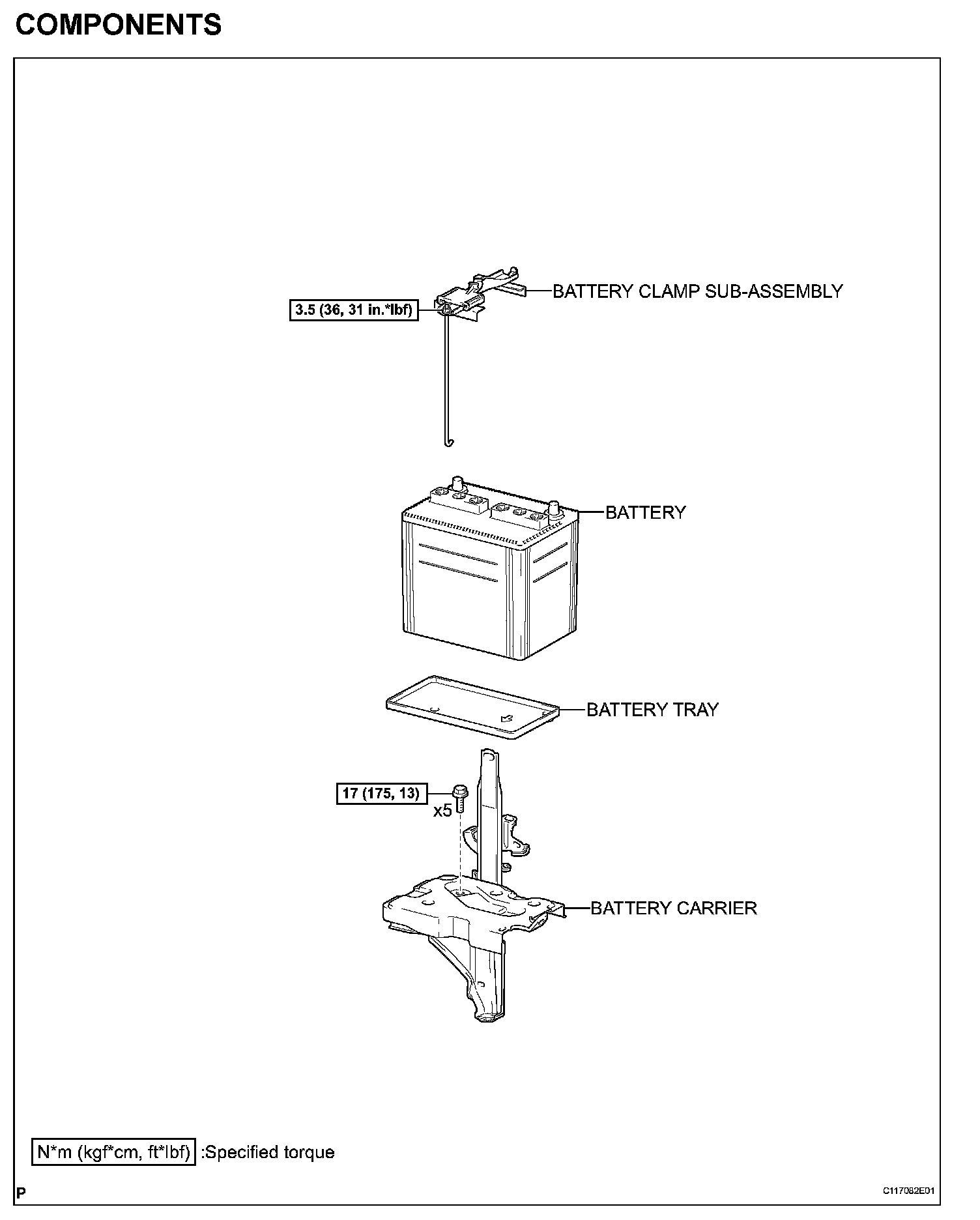

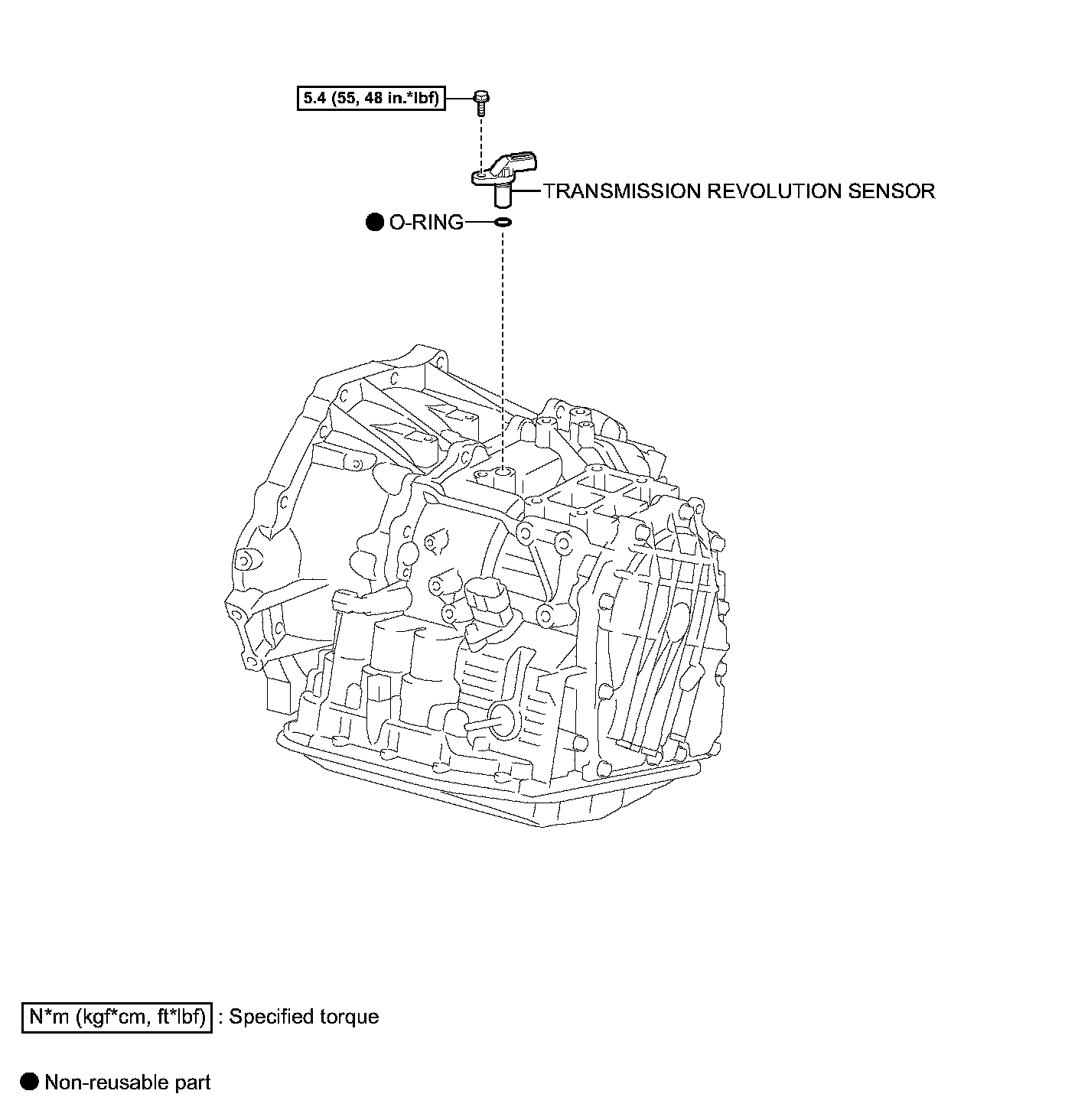

COMPONENTS (Part 1):

COMPONENTS (Part 2):

REMOVAL
1. REMOVE BATTERY
2. REMOVE BATTERY TRAY
3. REMOVE BATTERY CARRIER





4. REMOVE TRANSMISSION REVOLUTION SENSOR

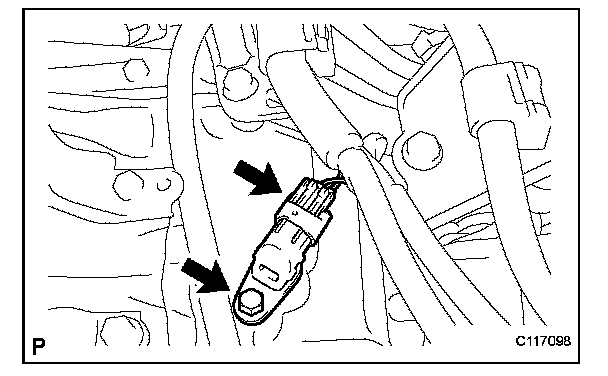

(a) Disconnect the transmission revolution sensor connector.
(b) Remove the bolt and transmission revolution sensor.

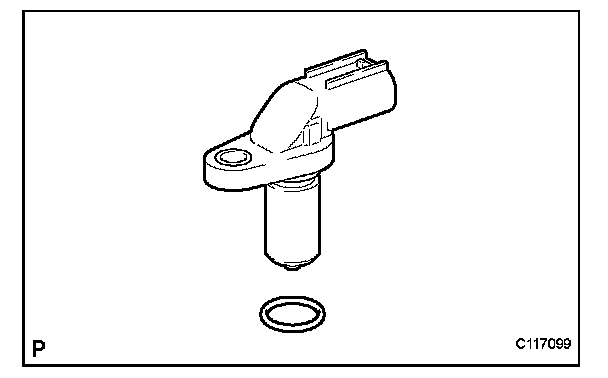

(c) Remove the O-ring from the transmission revolution sensor.

INSPECTION





1. INSPECT TRANSMISSION REVOLUTION SENSOR
(a) Measure the resistance.

Standard resistance:

INSTALLATION





1. INSTALL TRANSMISSION REVOLUTION SENSOR

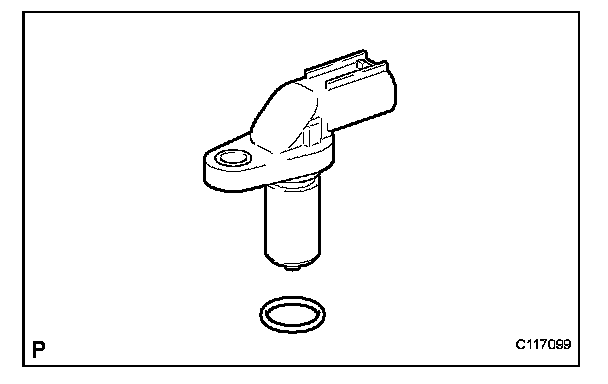

(a) Coat a new O-ring with ATF, and install it onto the transmission revolution sensor.





(b) Install the transmission revolution sensor with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

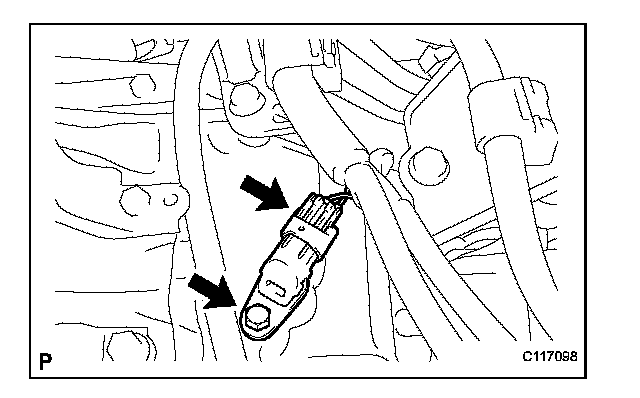

(c) Connect the transmission revolution sensor connector.
2. INSTALL BATTERY CARRIER
3. INSTALL BATTERY TRAY
4. INSTALL BATTERY
