Power Mirror Control System (w/ Memory)
Power Mirror Control System (w/ Memory)

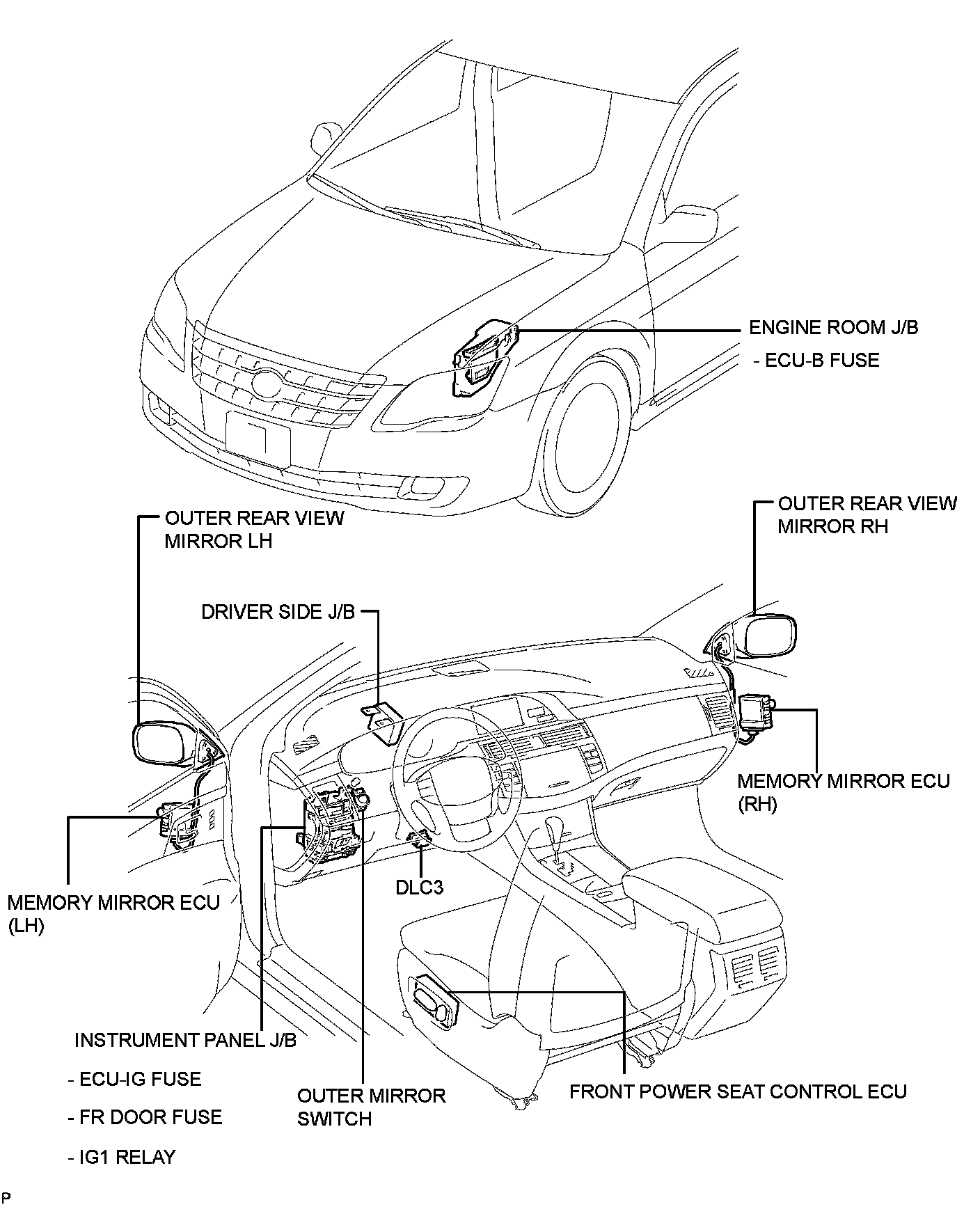

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
