System Diagram

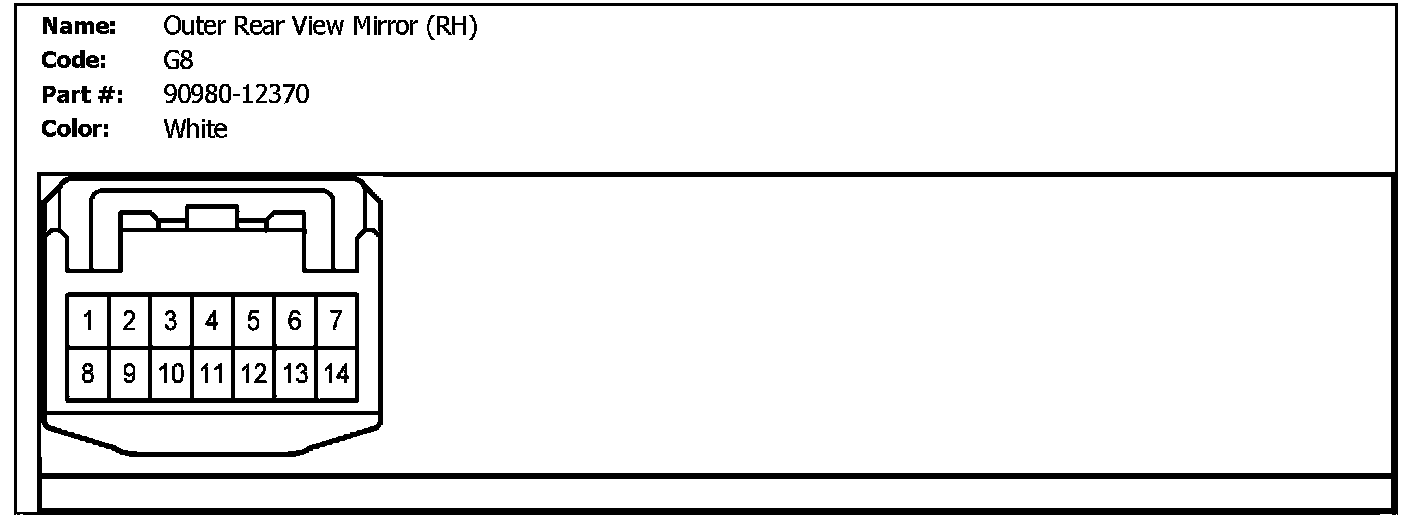

G8 (Outer Rear View Mirror (RH)):

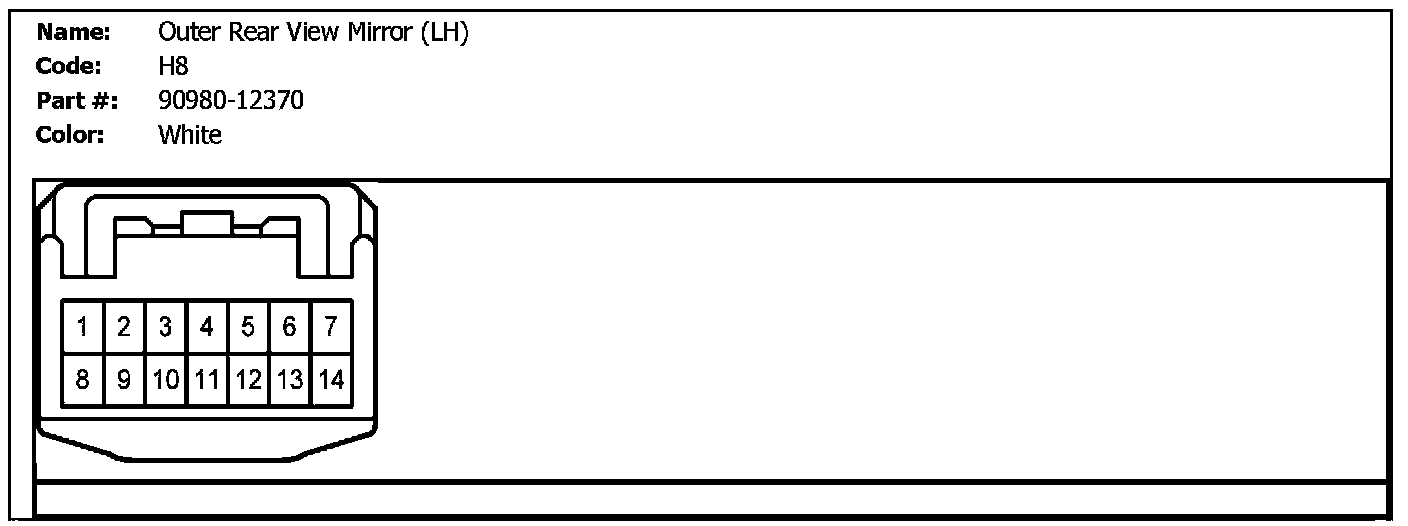

H8 (Outer Rear View Mirror (LH)):

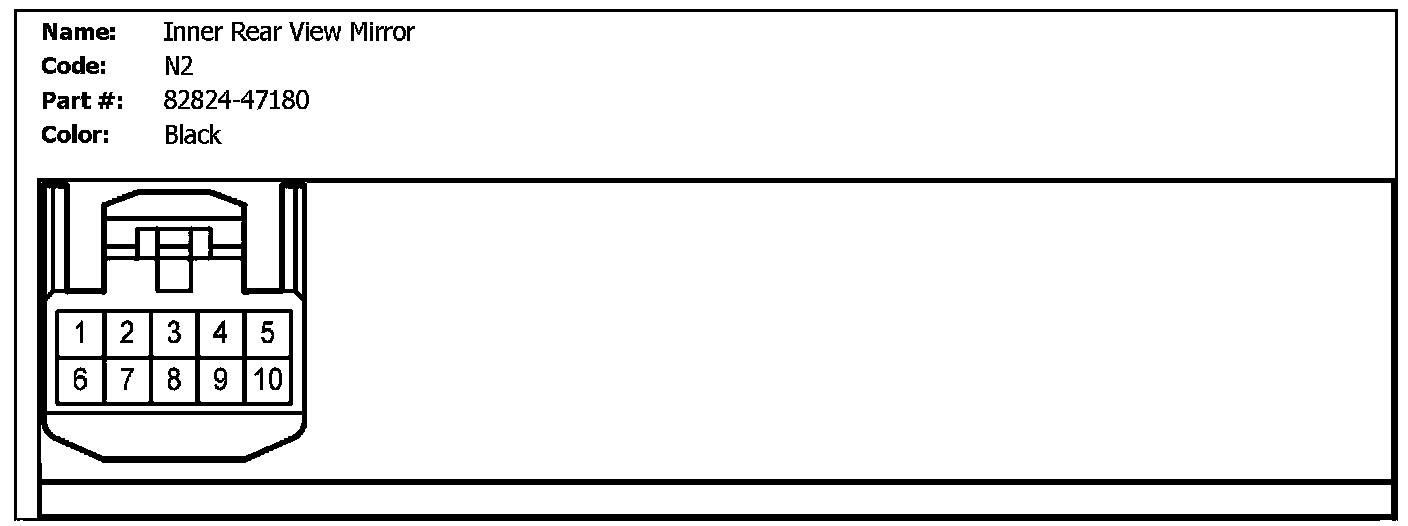

N2 (Inner Rear View Mirror):
