Power Seat Switch
Power Seat Switch

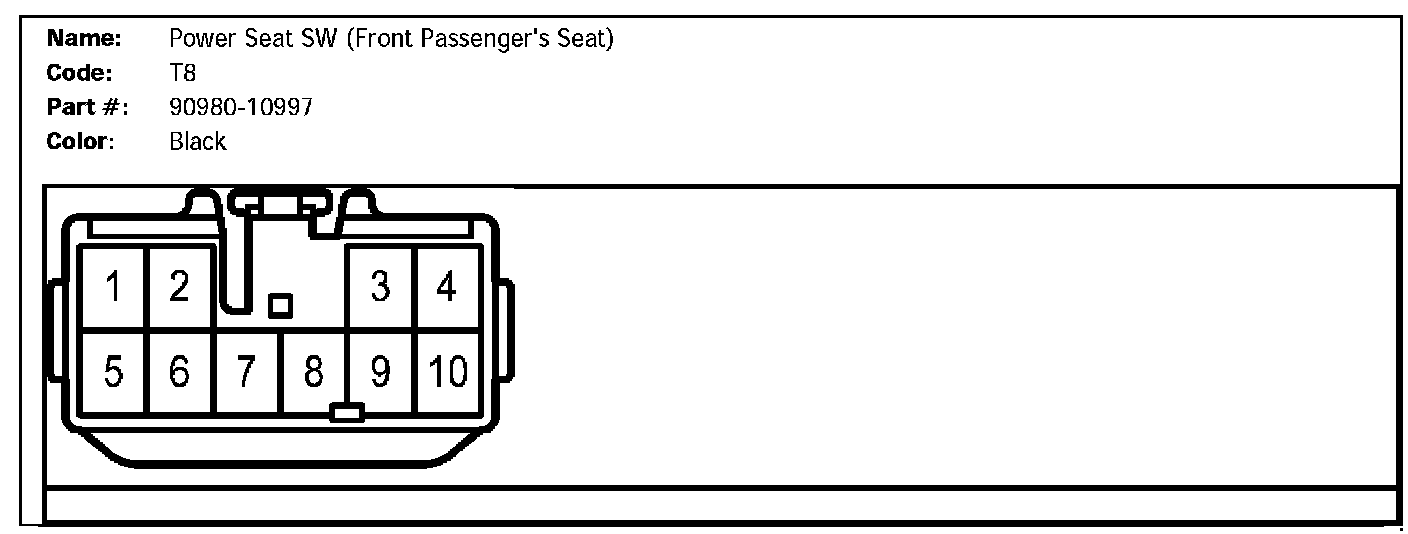

T8 (Power Seat SW (Front Passenger's Seat)):

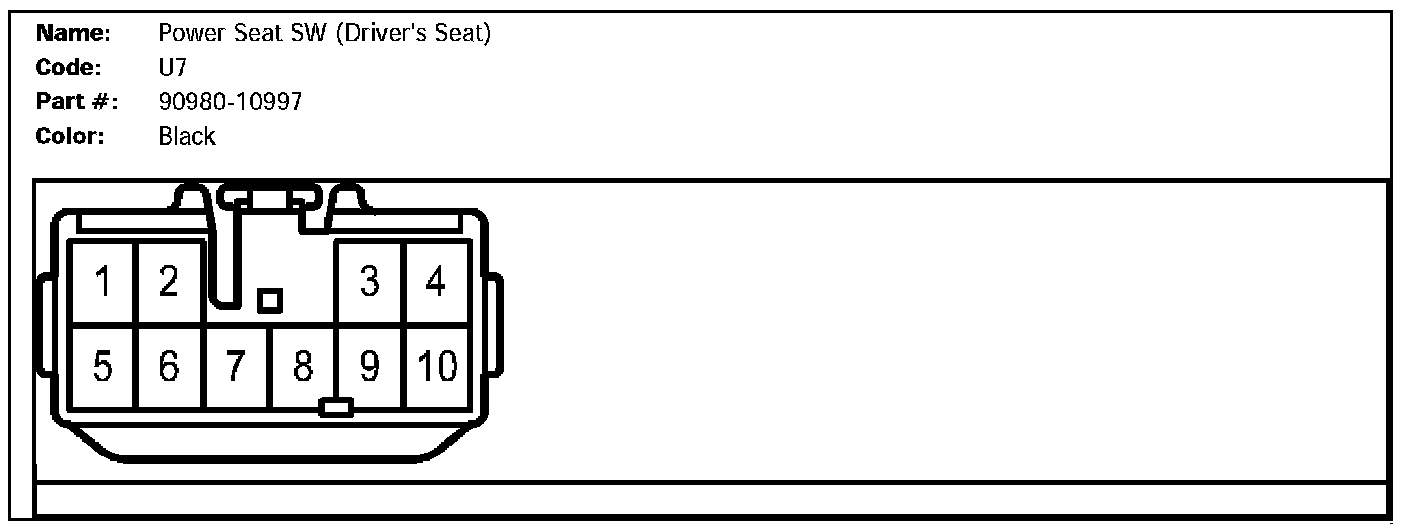

U7 (Power Seat SW (Driver's Seat)):

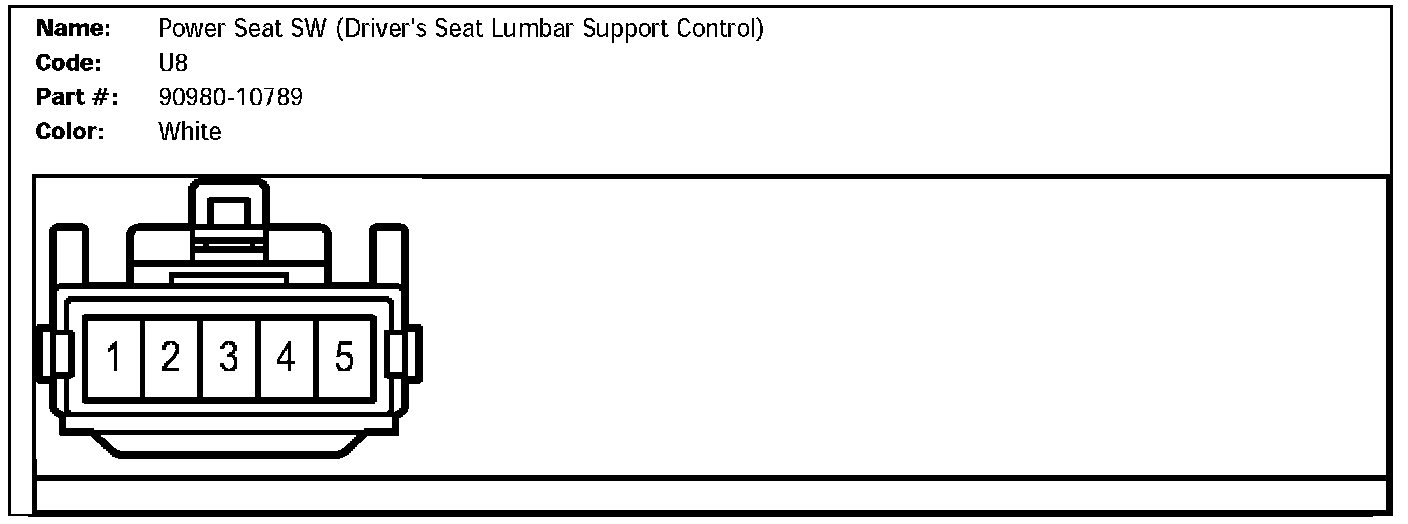

U8 (Power Seat SW (Driver's Seat Lumber Support Control)):
