Removal

2AZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR:

REMOVAL

1. REMOVE HEATED OXYGEN SENSOR

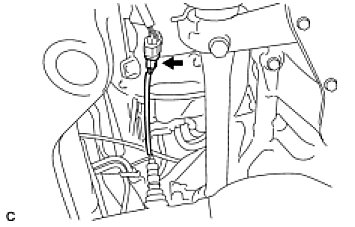

(a) Disconnect the heated oxygen sensor connector.

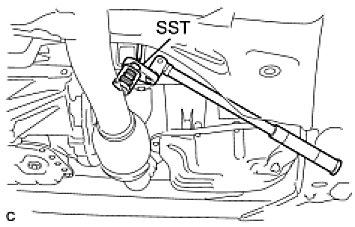

(b) Using SST, remove the heated oxygen sensor from the exhaust pipe assembly front No. 3.
SST: 09224-00010

NOTE: Do not damage the heated oxygen sensor.
