Overhaul Specs

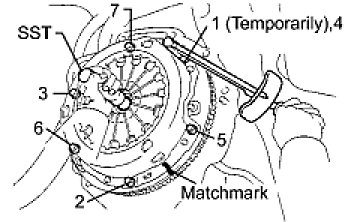

CLUTCH COVER ASSEMBLY






Torque 19 Nm (195 kg-cm, 14 ft-lb)

RELEASE FORK SUPPORT

Torque 37 Nm (375 kgf-cm, 27 ft-lbf)
