Electronic Brake Control Module

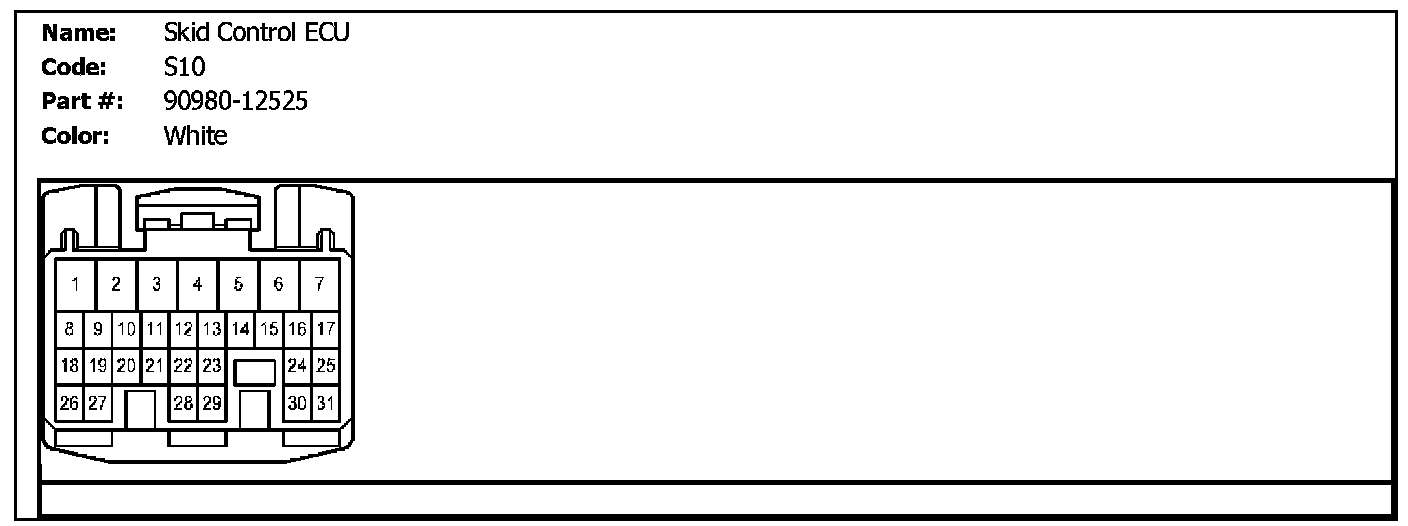

S10 (Skid Control ECU):

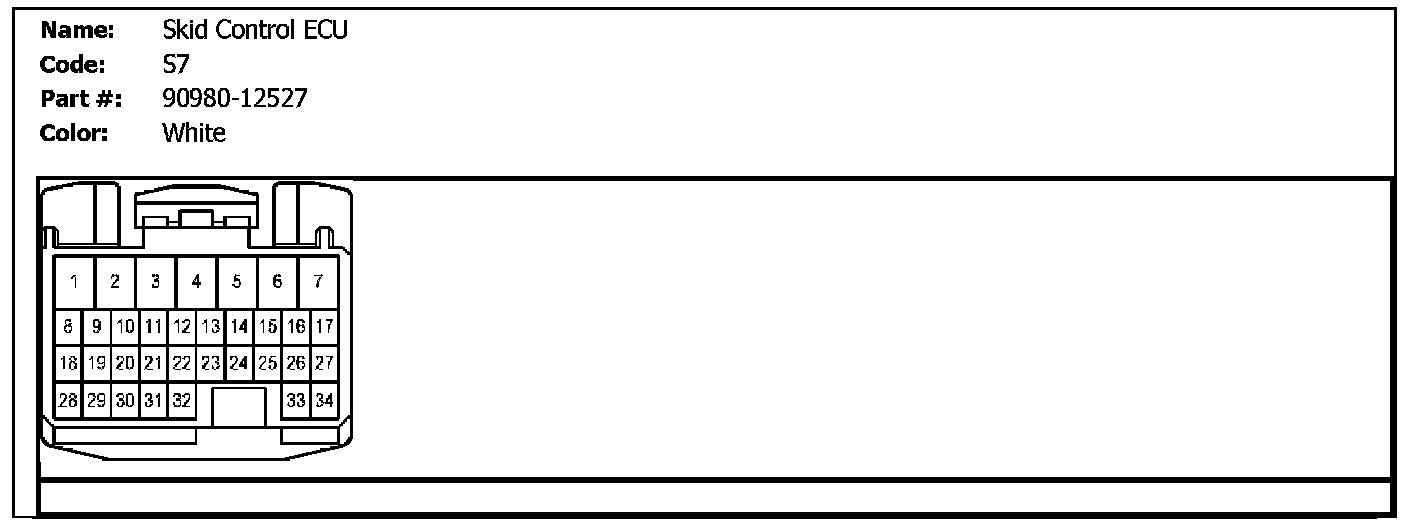

S7 (Skid Control ECU):

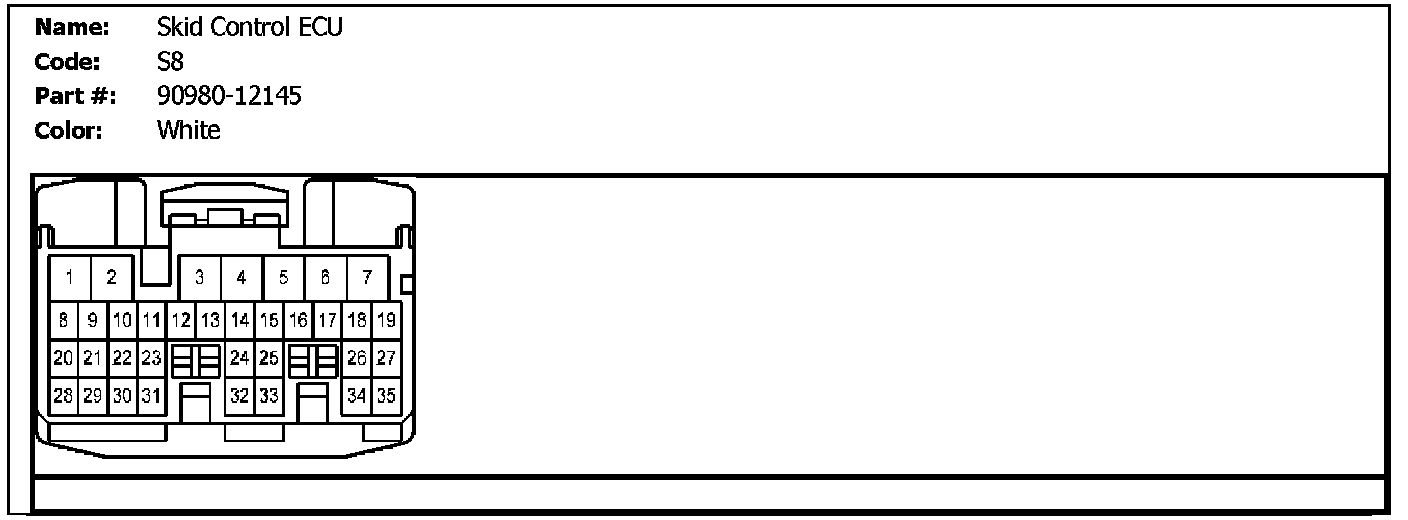

S8 (Skid Control ECU):

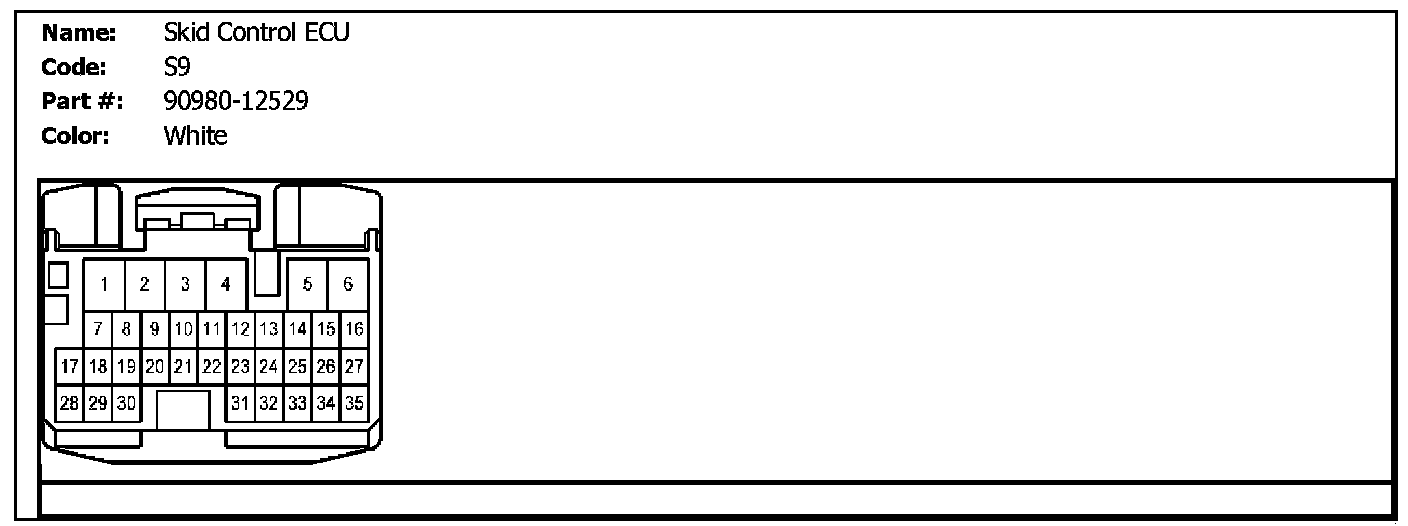

S9 (Skid Control ECU):
