Battery Control Module

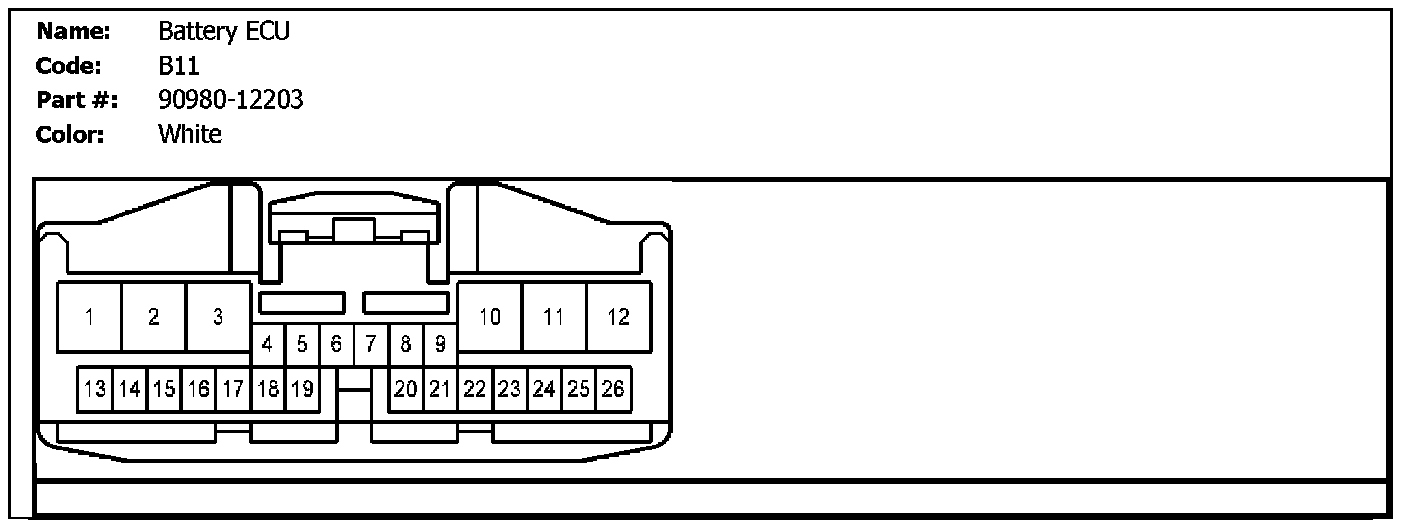

B11 (Battery ECU):

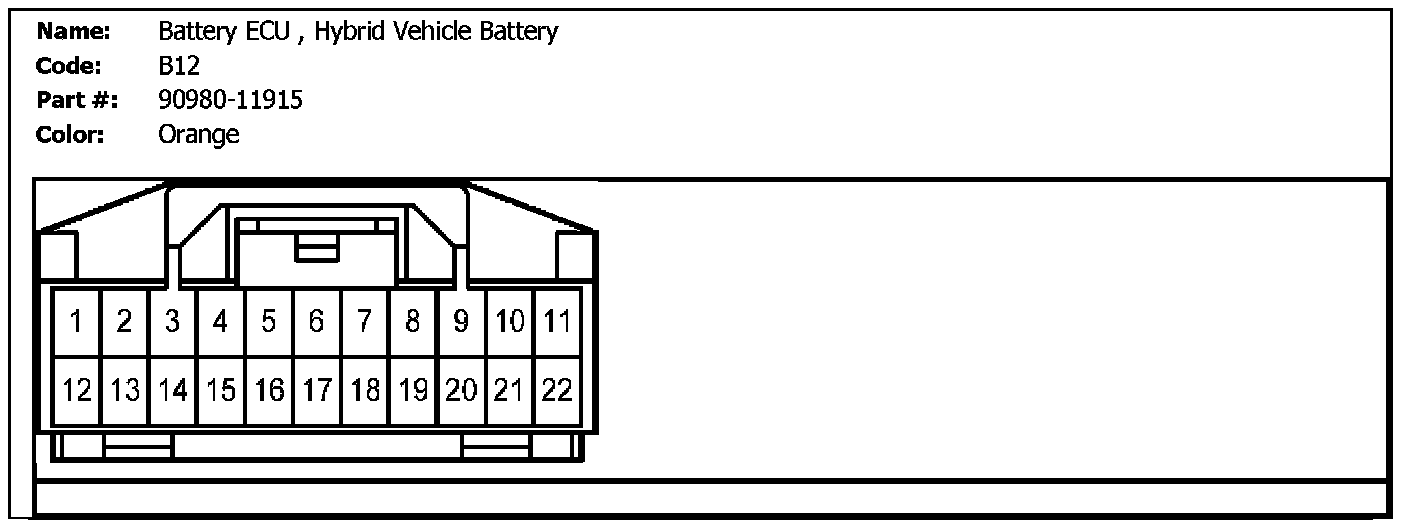

B12 (Battery ECU, Hybrid Vehicle Battery):

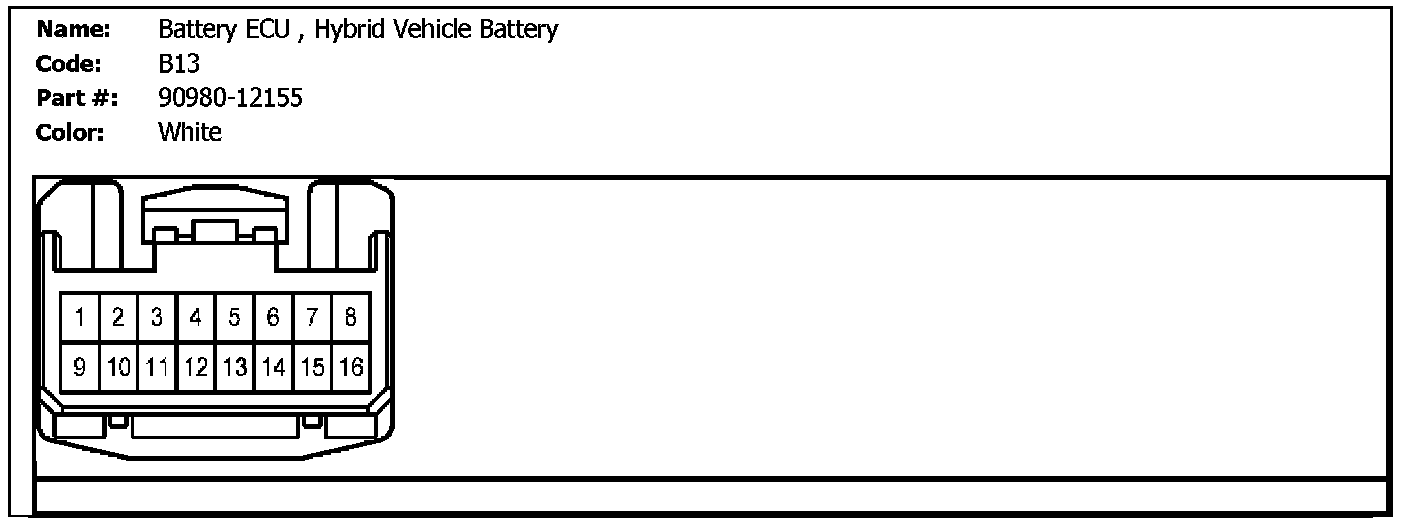

B13 (Battery ECU, Hybrid Vehicle Battery):
