Drive Motor Power Relay Resistor: Testing and Inspection

P112 HYBRID BATTERY CONTROL: SYSTEM MAIN RESISTOR:

INSPECTION

1. INSPECT SYSTEM MAIN RESISTOR

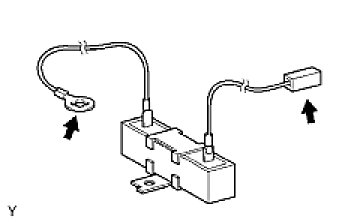

(a) Measure the resistance between the terminals.
Standard resistance:
18 to 22 Ohms
If the result is not as specified, replace the system main resistor.
