Transmission Control Systems: Locations








HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM:

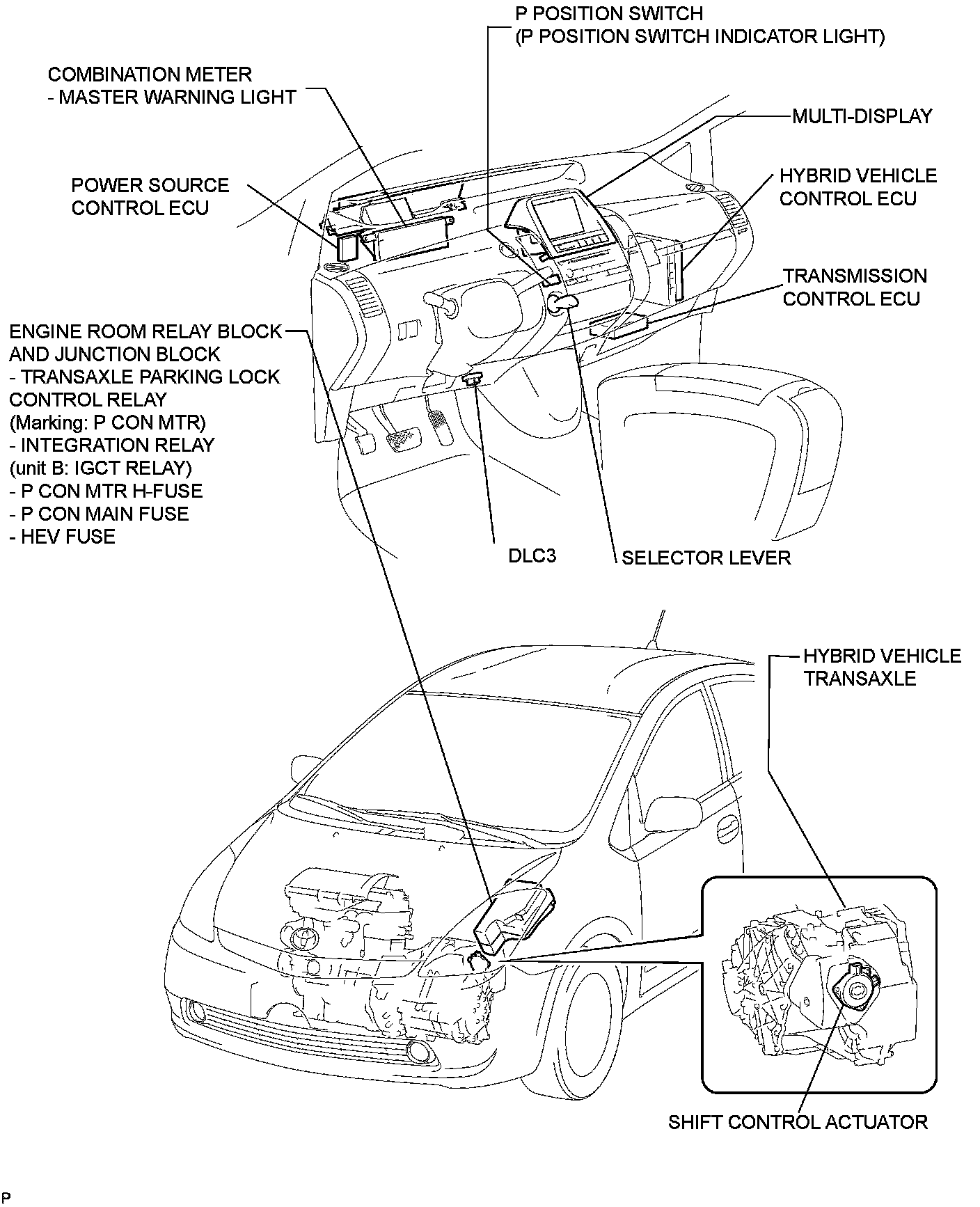

PARTS LOCATION
