Brake Control

SERVICE SPECIFICATIONS: BRAKE CONTROL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

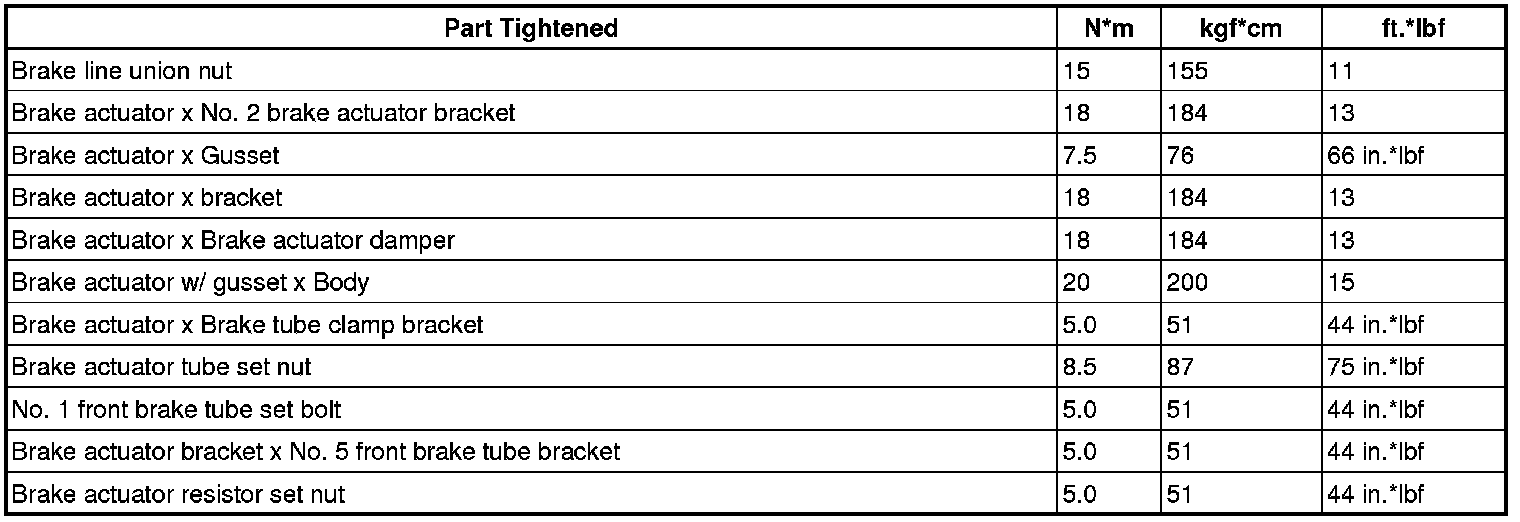

Brake actuator

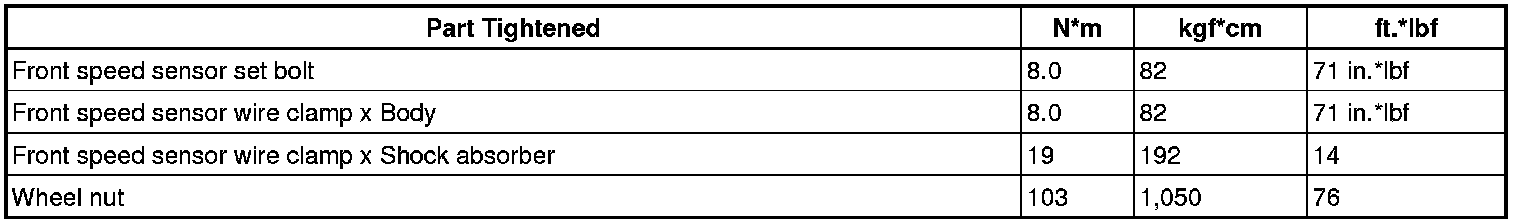

Front speed sensor

Yaw rate sensor

Skid control ECU

Brake control power supply

Brake pedal stroke sensor
