Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2008
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Service Data
Service Data

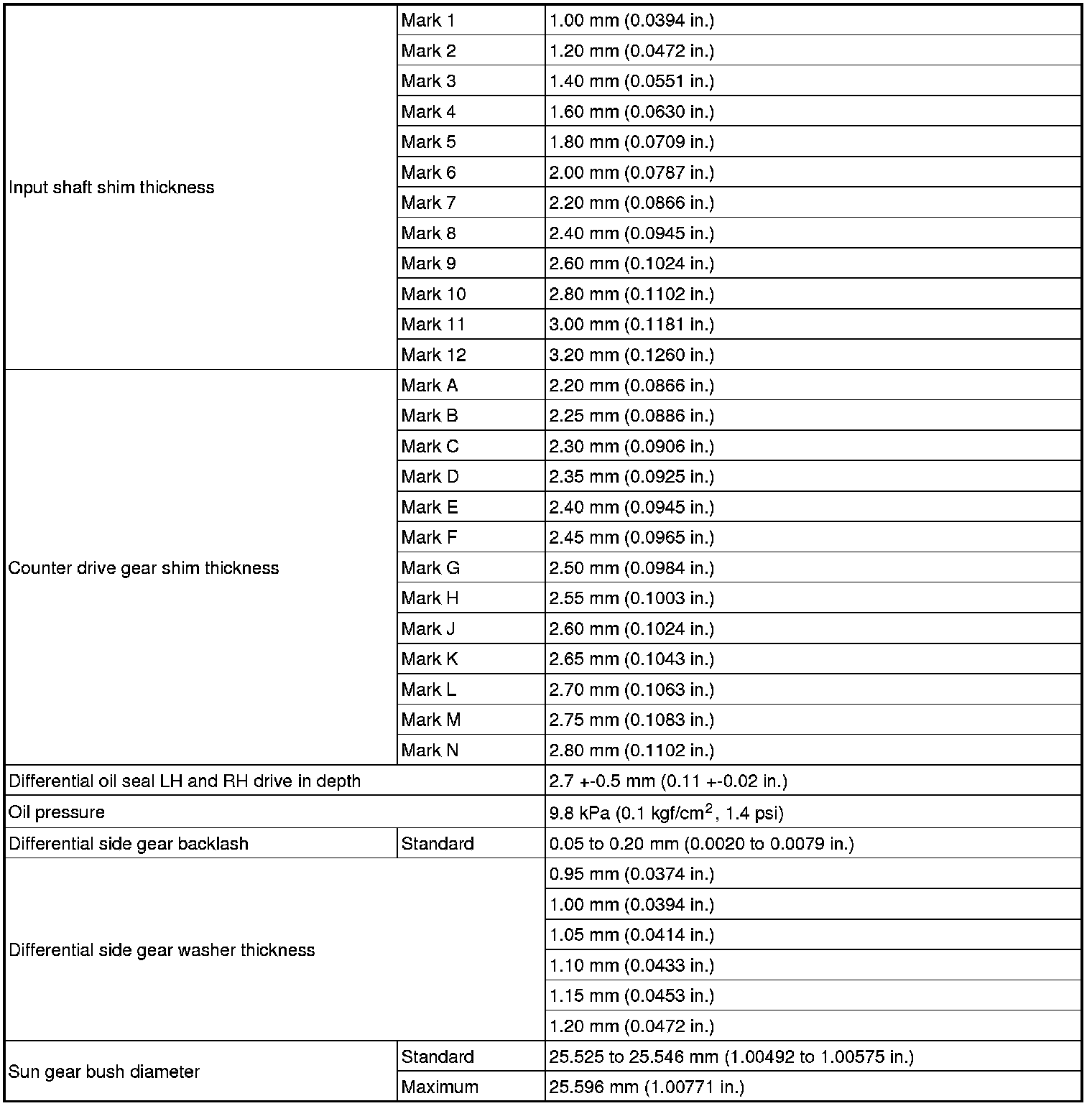

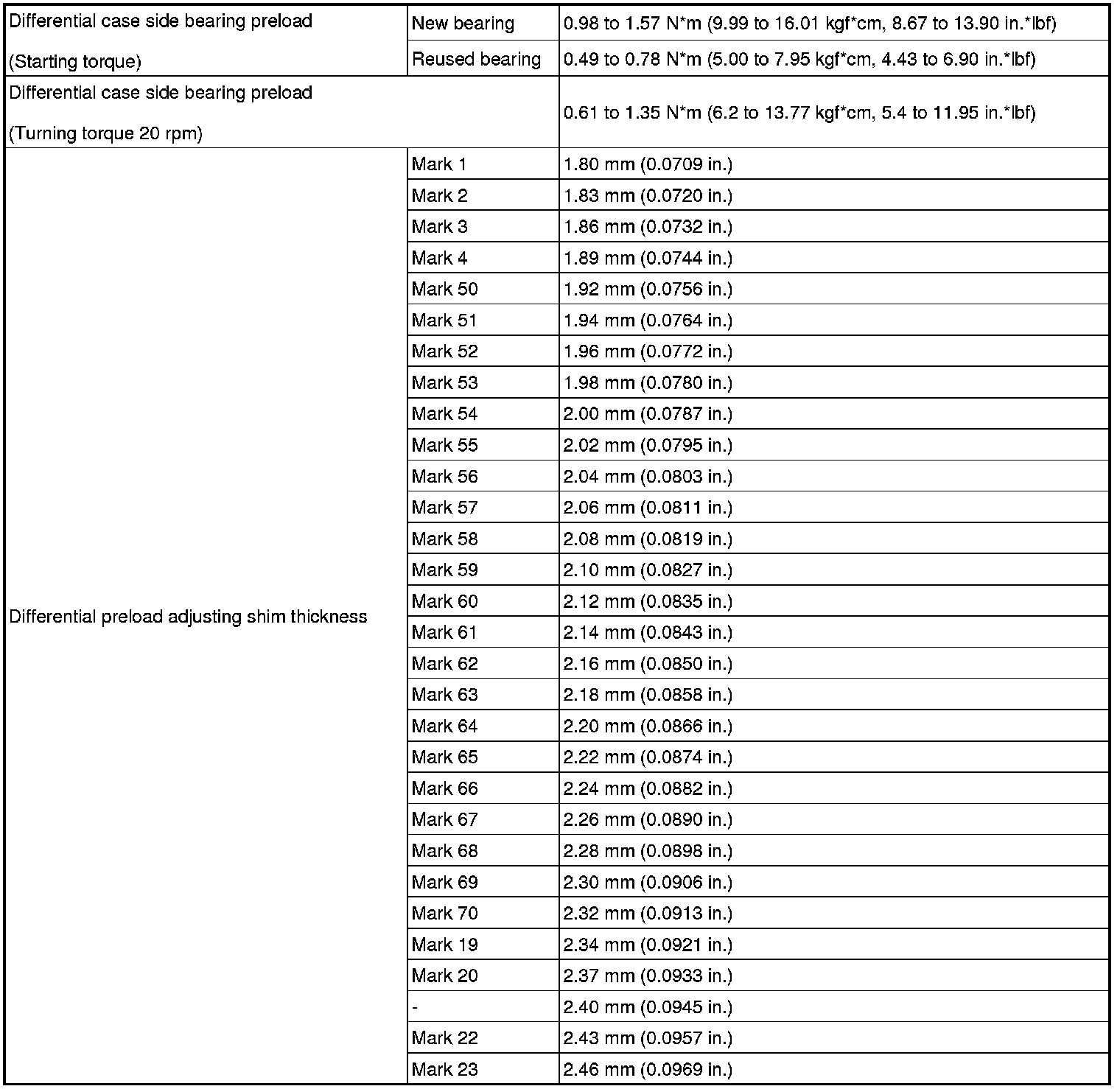

SERVICE SPECIFICATIONS: HYBRID TRANSMISSION / TRANSAXLE: SERVICE DATA
SERVICE DATA
