Fuel Injector
Fuel Injector

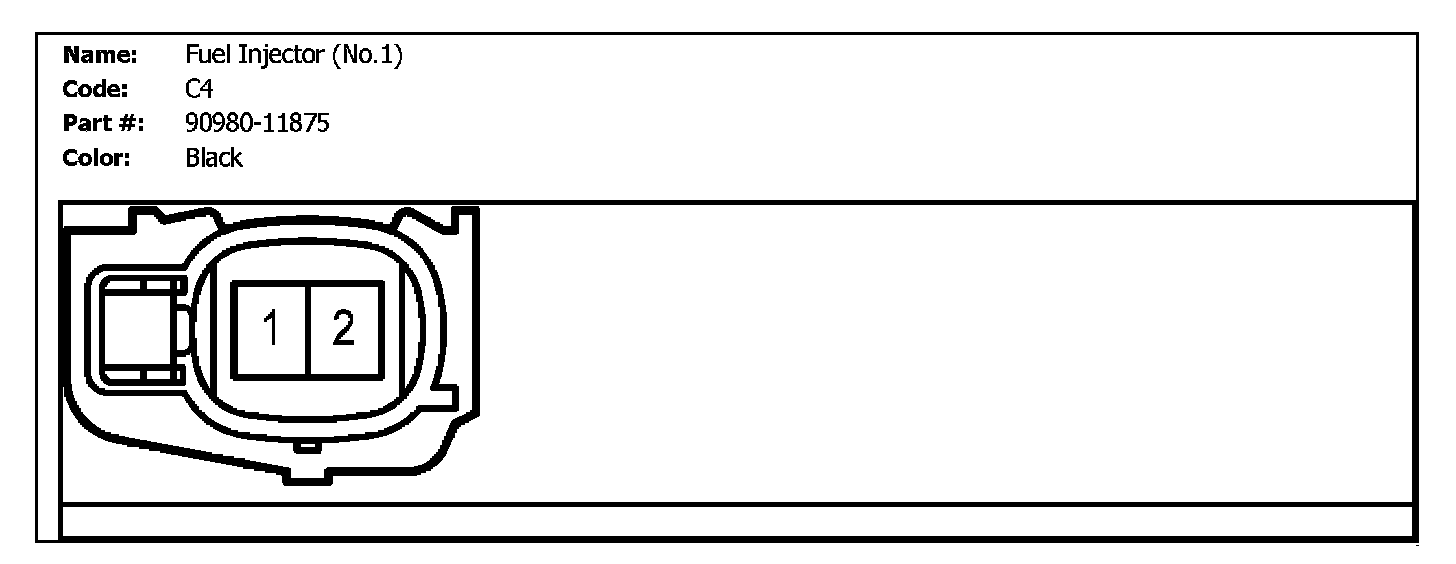

C4 (Fuel Injector (No.1)):

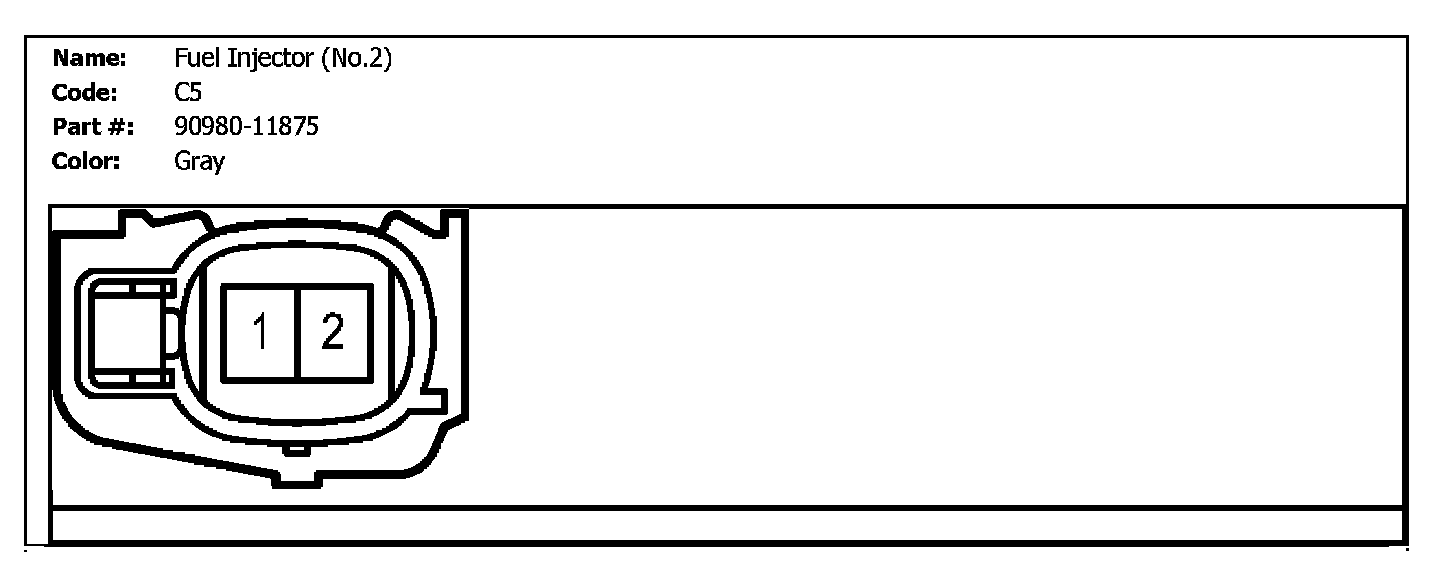

C5 (Fuel Injector (No.2)):

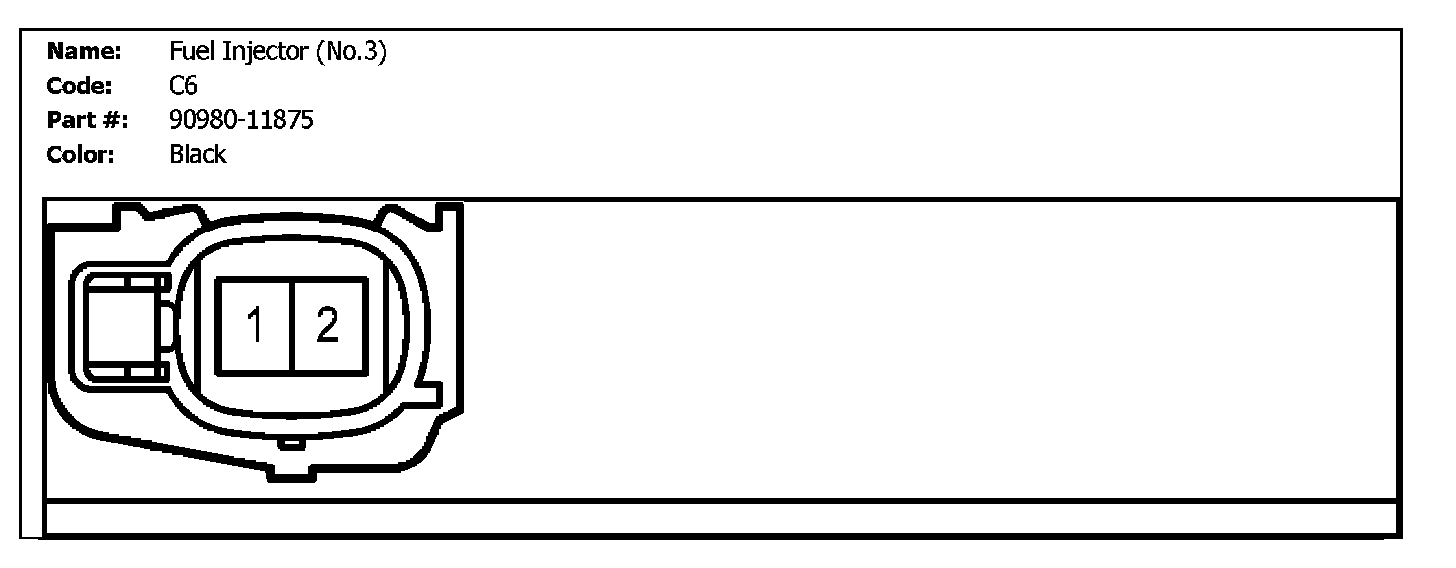

C6 (Fuel Injector (No.3)):

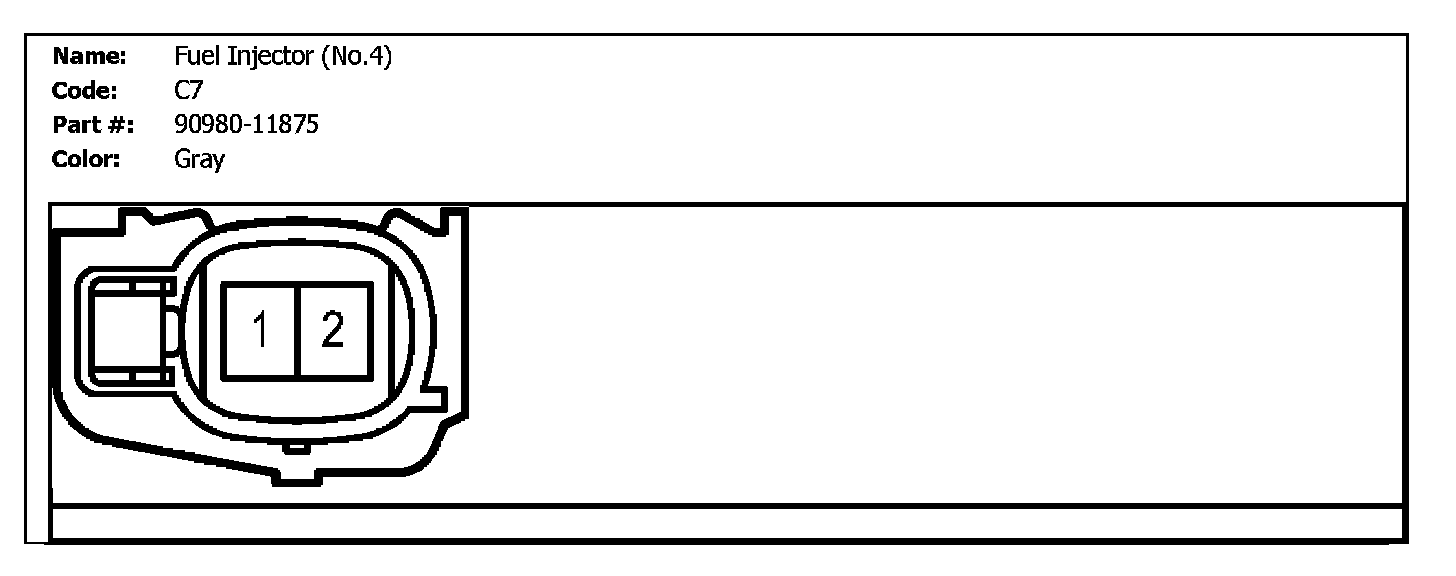

C7 (Fuel Injector (No.4)):
