Removal

AIR CONDITIONING: COMPRESSOR AND PULLEY (for 1NZ-FE):

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE ENGINE UNDER COVER RH
4. REMOVE FAN AND GENERATOR V BELT Removal

5. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE

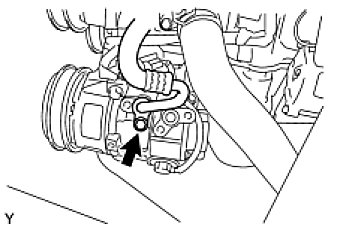

(a) Remove the bolt and disconnect the suction hose.
(b) Remove the O-ring from the suction hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

6. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

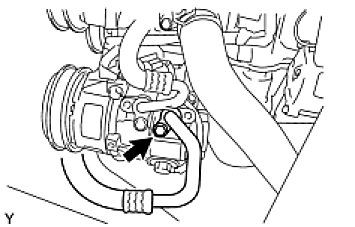

(a) Remove the bolt and disconnect the discharge hose.
(b) Remove the O-ring from the discharge hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

7. REMOVE COMPRESSOR AND PULLEY





(a) Disconnect the connector.

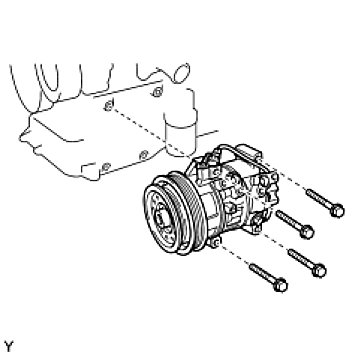

(b) Remove the 4 bolts and compressor.
