Reassembly

AIR CONDITIONING PANEL (for Hatchback):

REASSEMBLY

1. INSTALL HEATER CONTROL SUB-ASSEMBLY

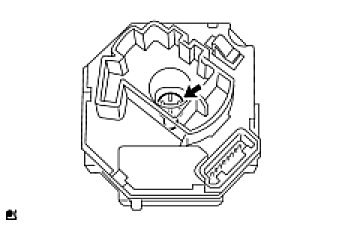

(a) Install the bulb.

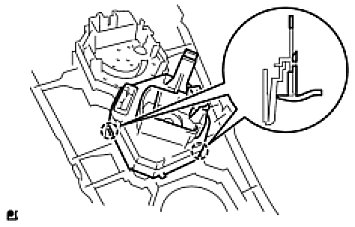

(b) Engage the 2 claws and install the heater control.
2. INSTALL HEATER CONTROL BASE SUB-ASSEMBLY

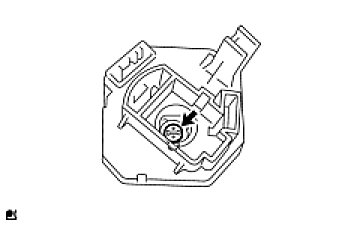

(a) Install the bulb.

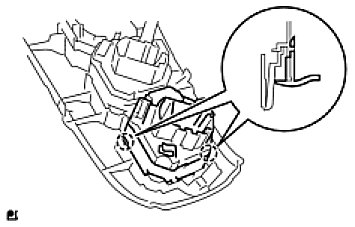

(b) Engage the 2 claws and install the heater control base.
3. INSTALL NO. 3 HEATER CONTROL KNOB

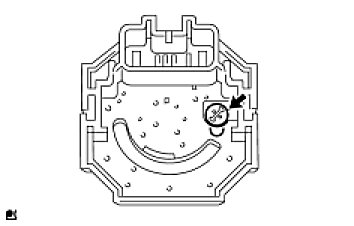

(a) Install the bulb.

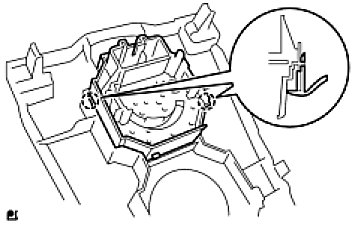

(b) Engage the 2 claws and install the No. 3 heater control knob.
