Air Conditioning Panel (for Sedan)
>>
Components
Components

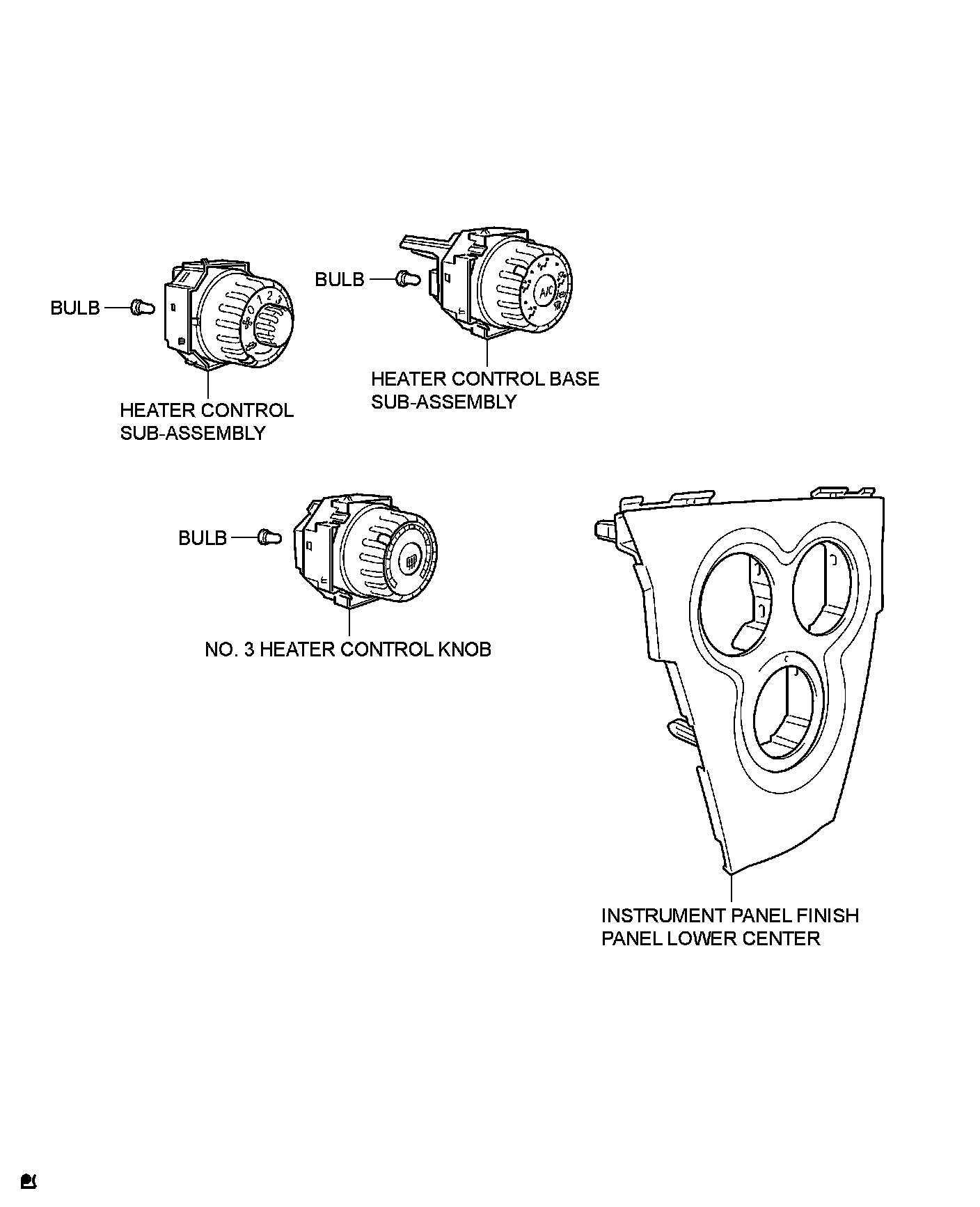

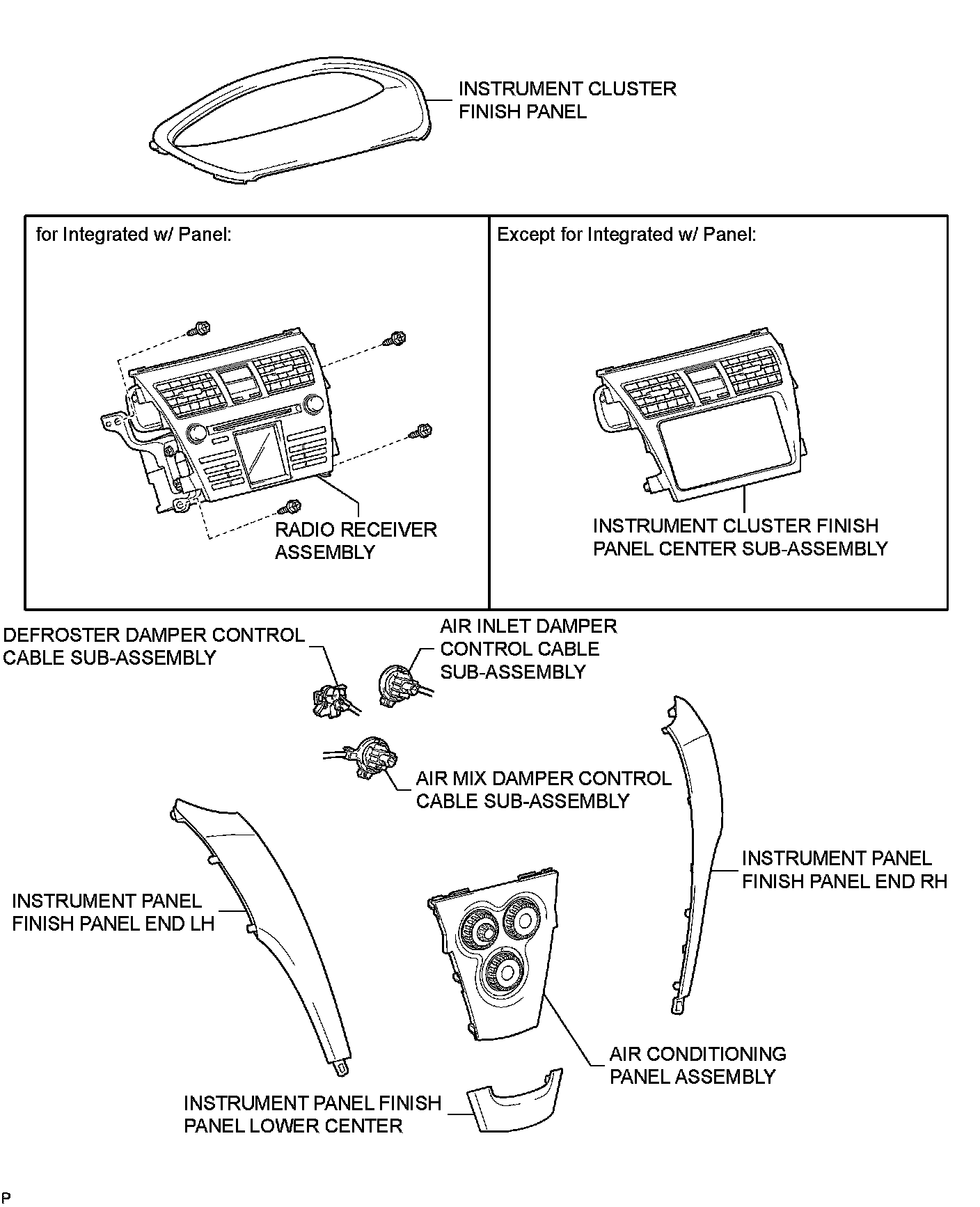

AIR CONDITIONING PANEL (for Sedan):
COMPONENTS
