Connector Locations

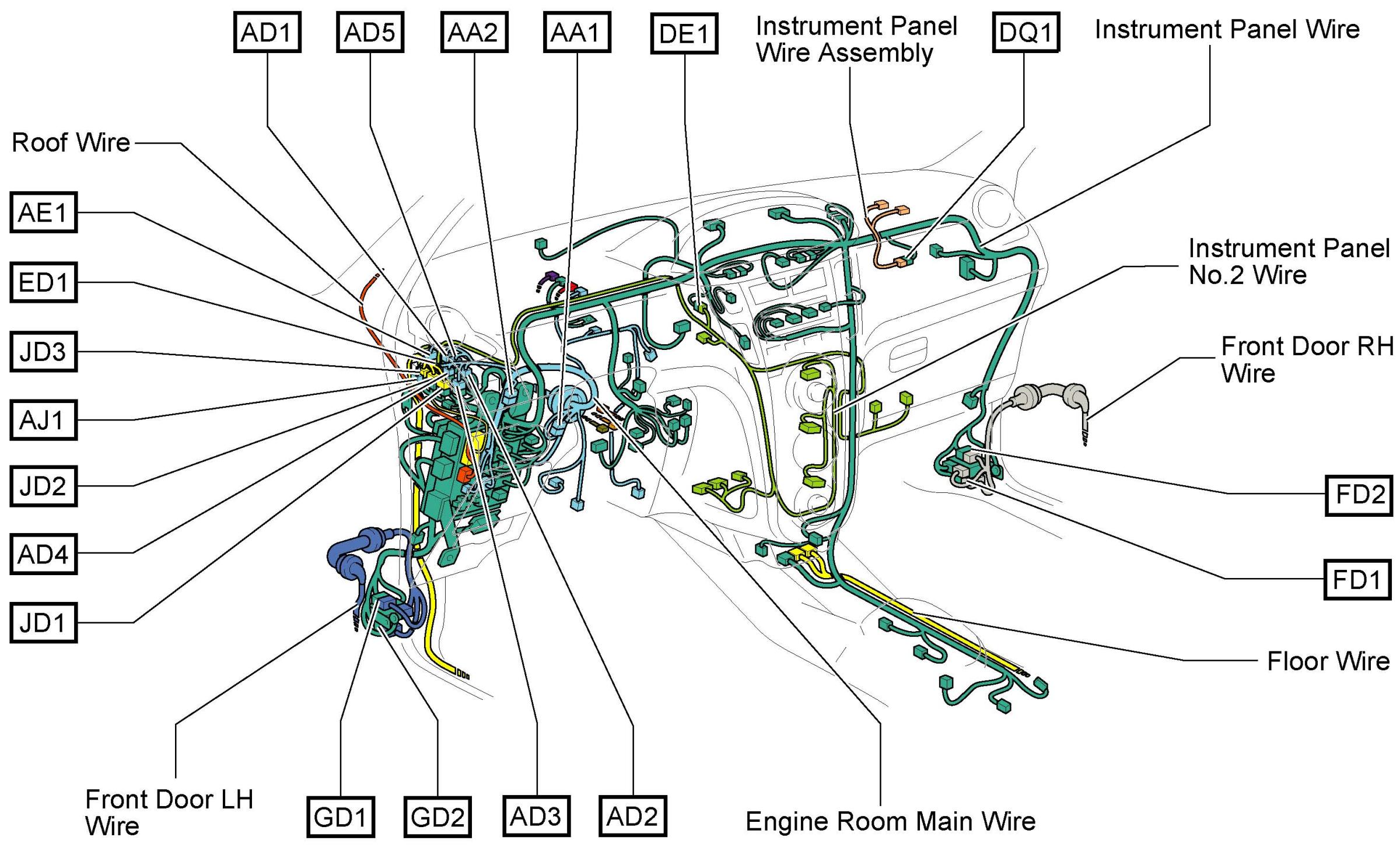

Wire And Wire In Instrument Panel <H/B>:

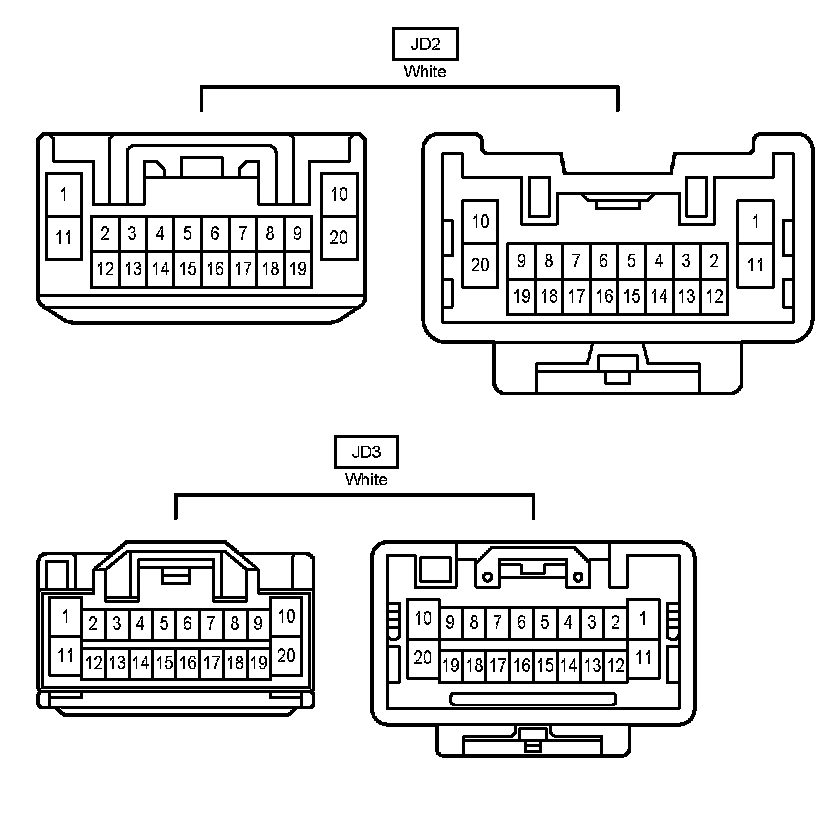

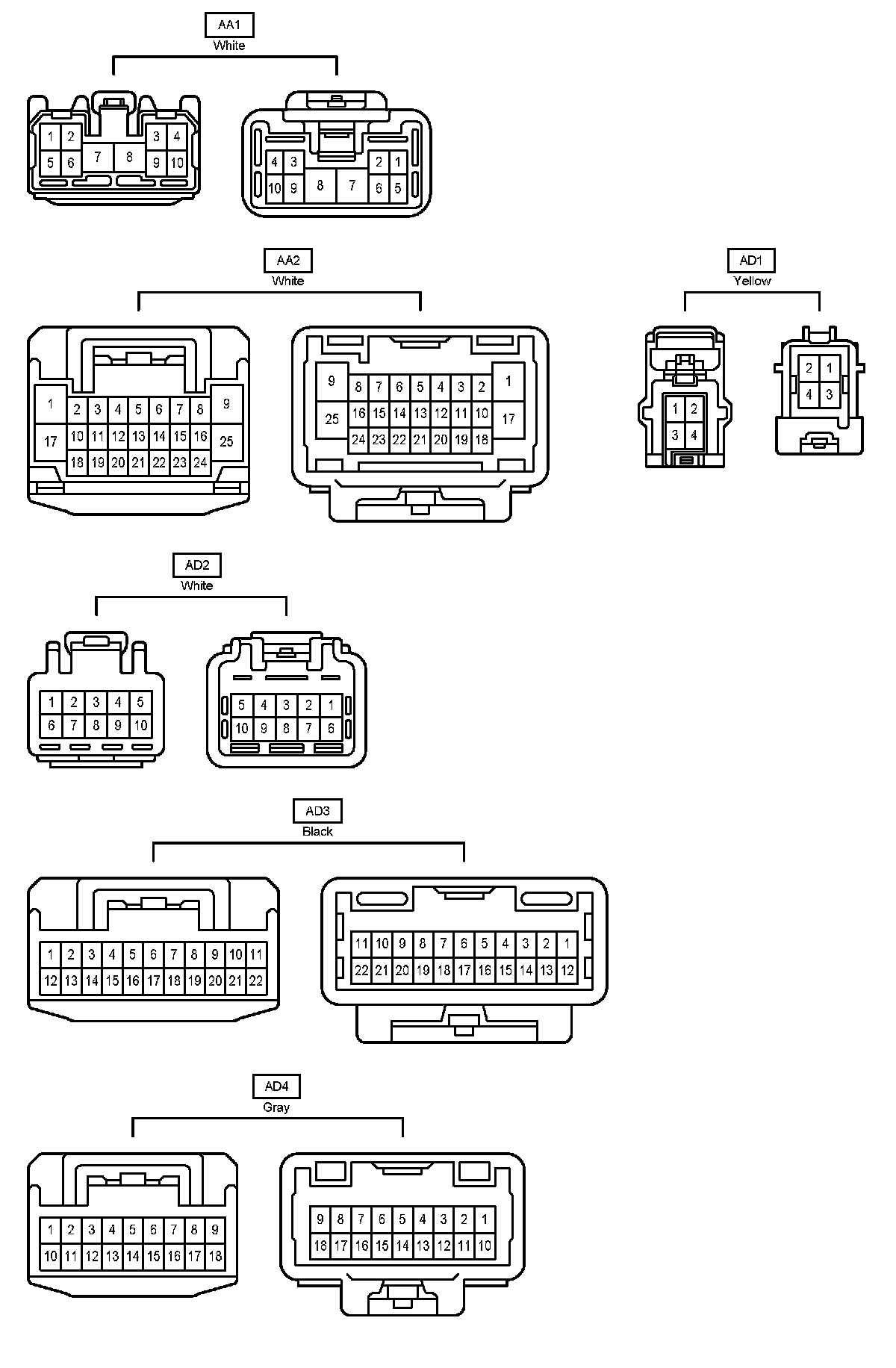

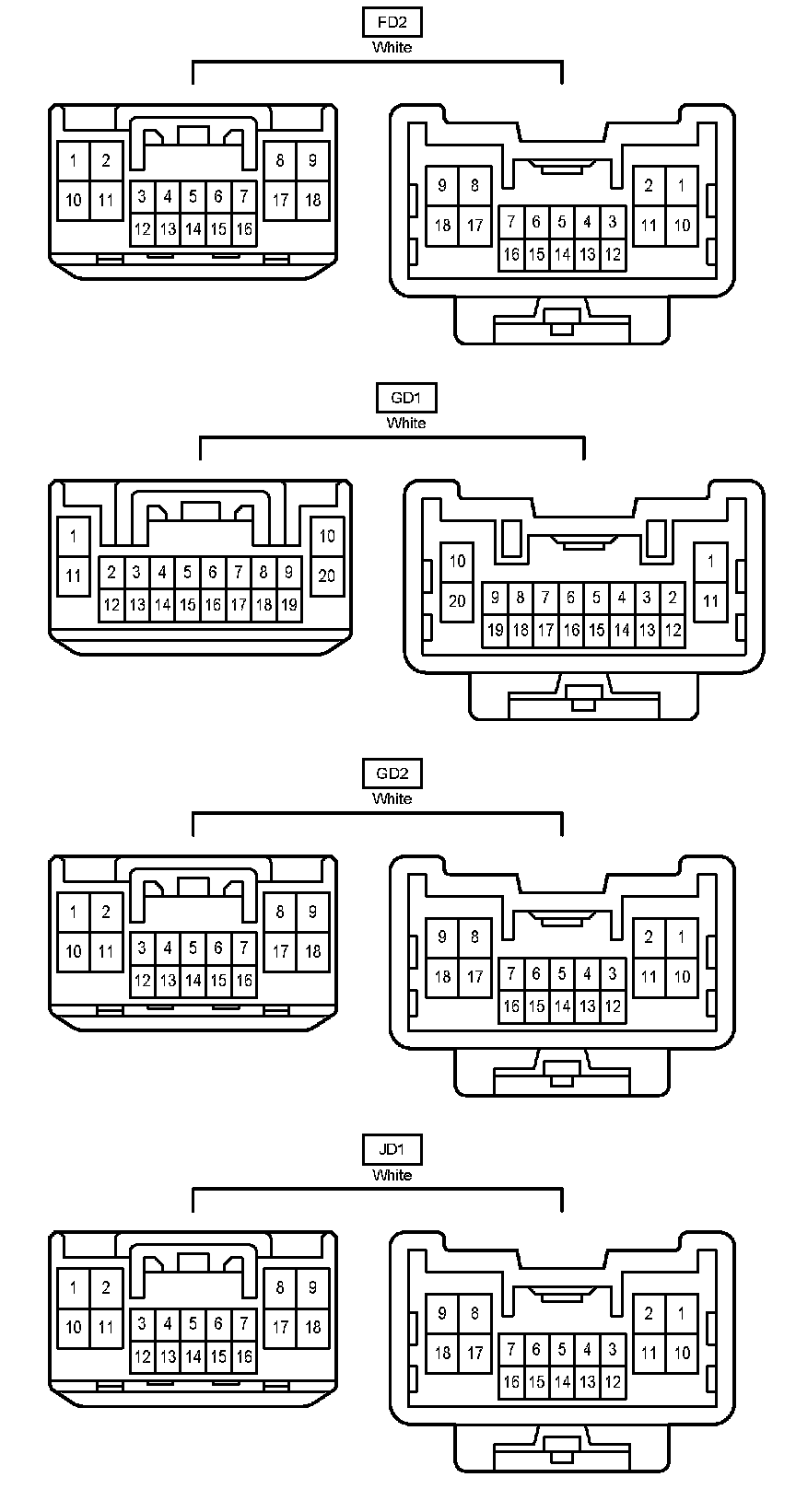

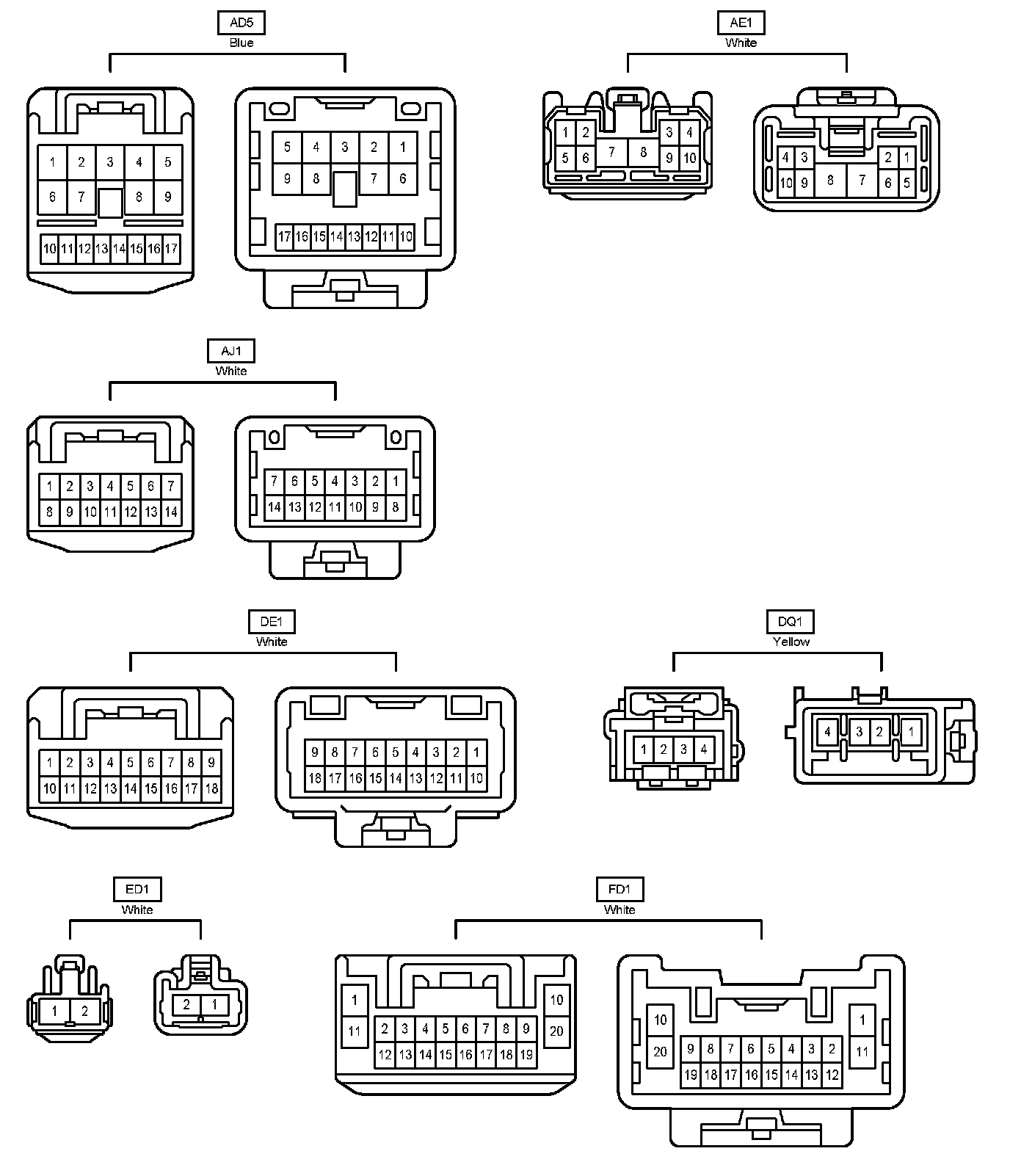

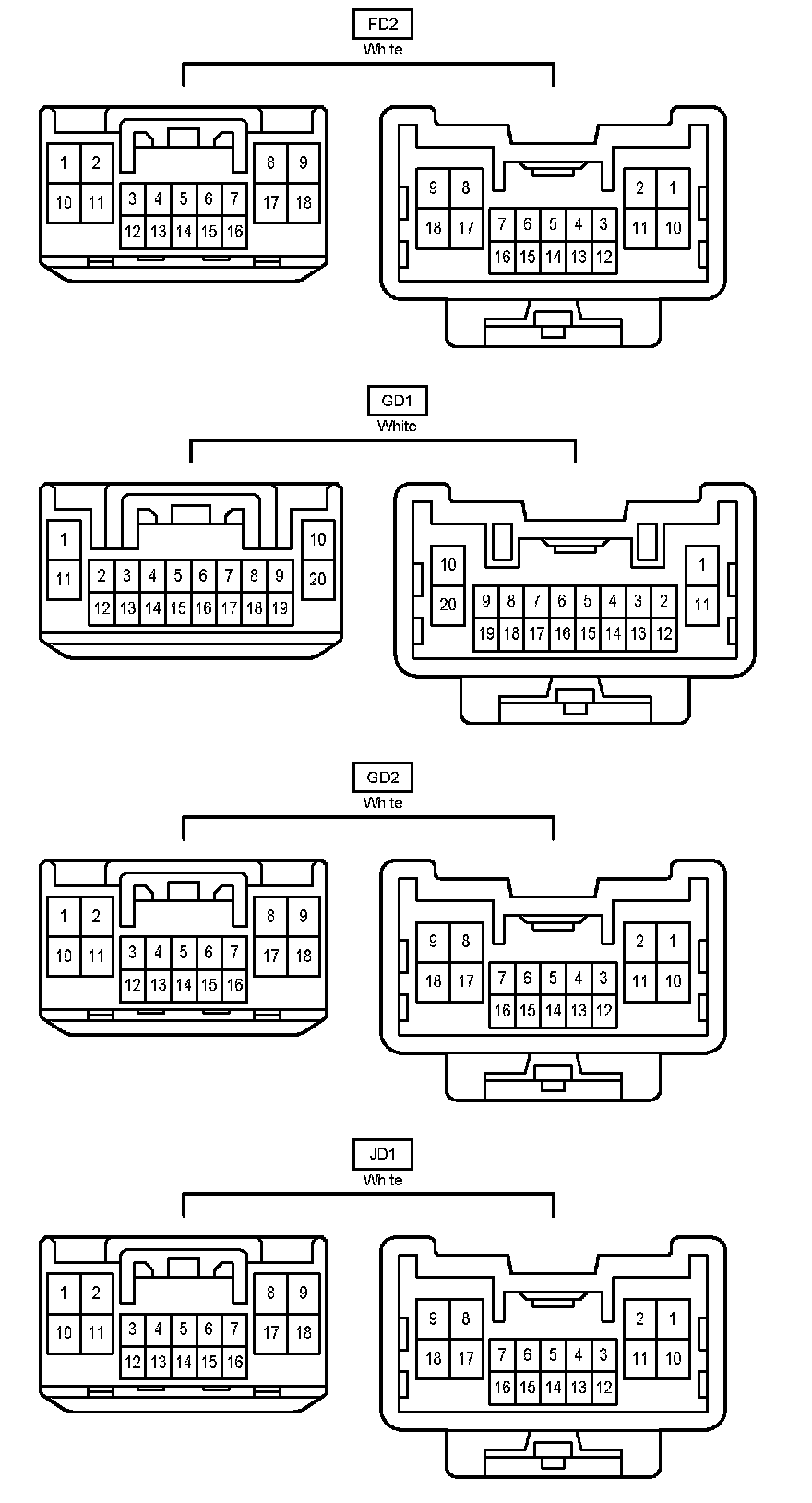

Connector Views:



Connector Views:



Connector Views:



Connector Views:



Wire And Wire In Instrument Panel <S/D>:

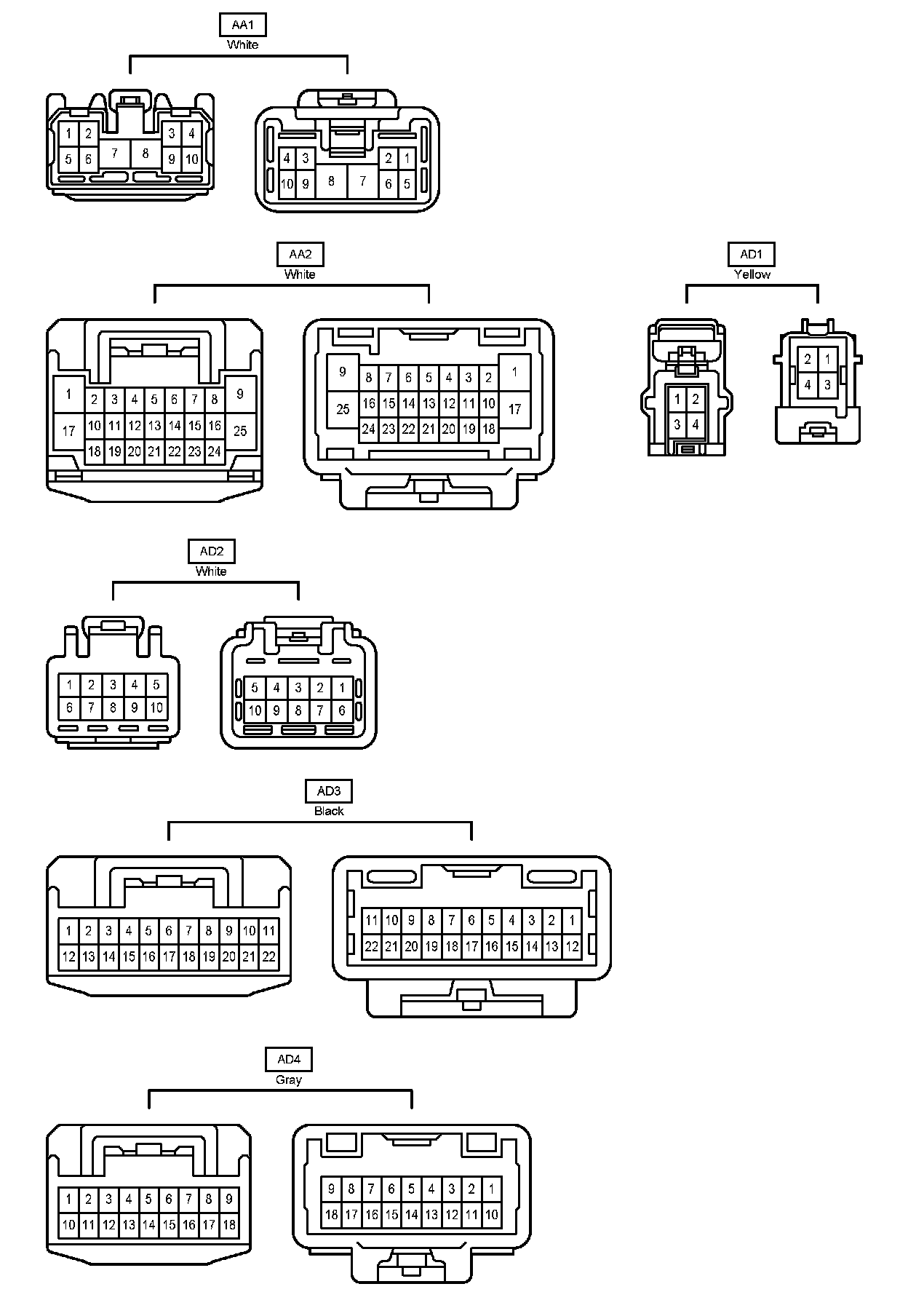

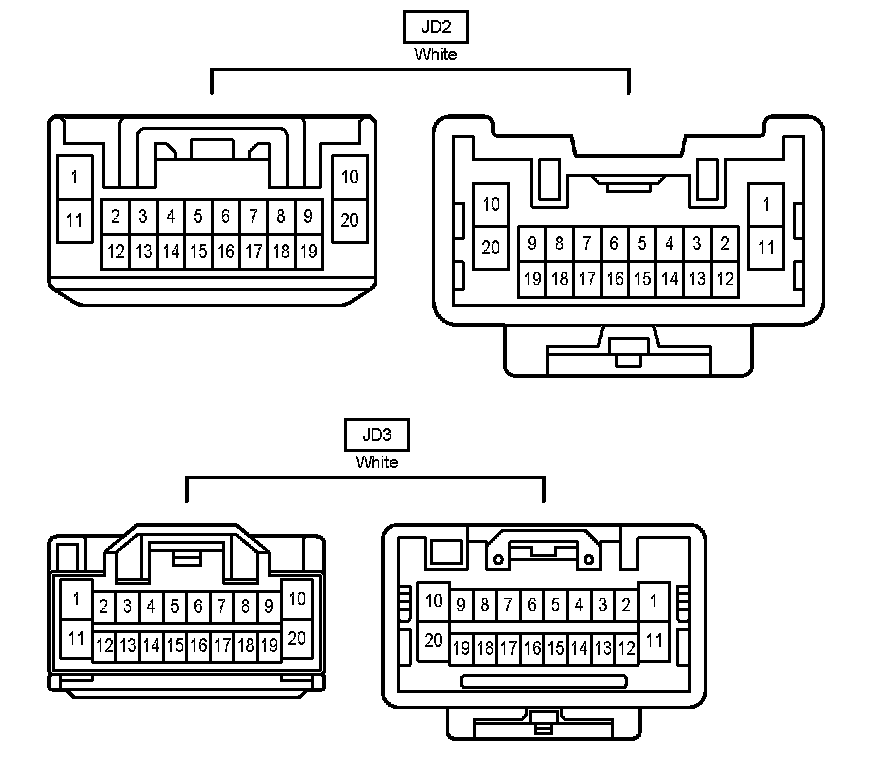

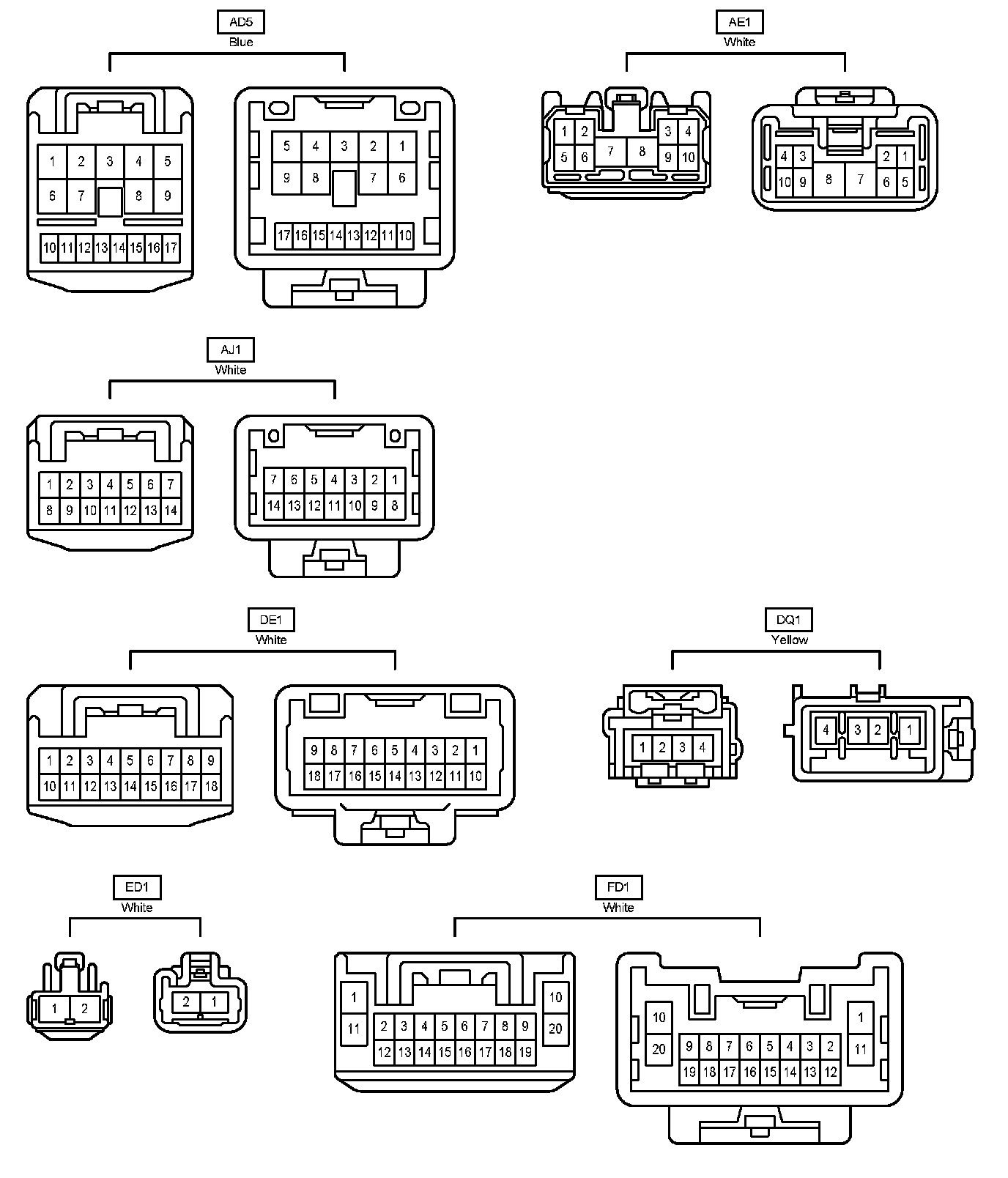

Connector Views:



Connector Views:



Connector Views:



Connector Views:
