Components
Components

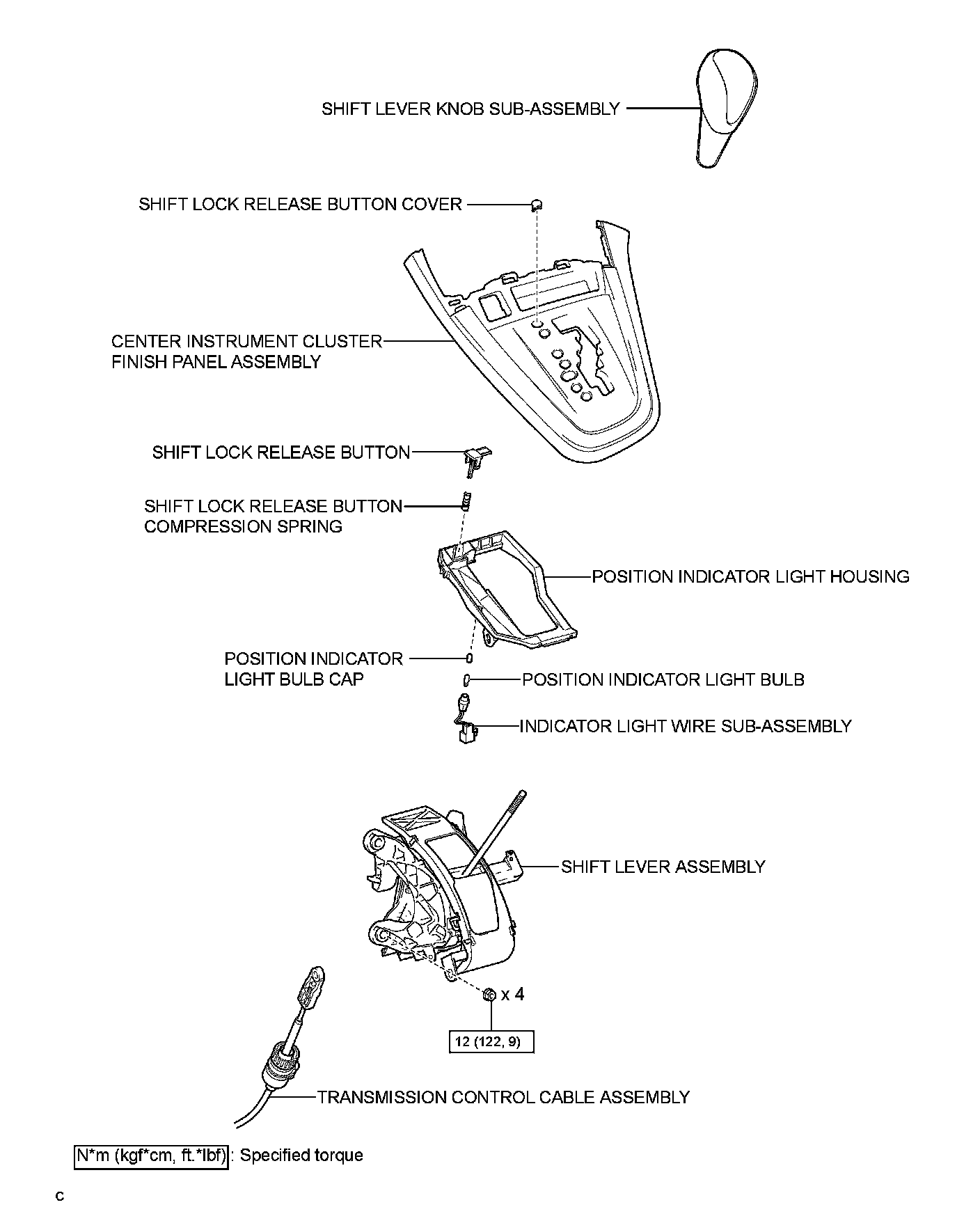

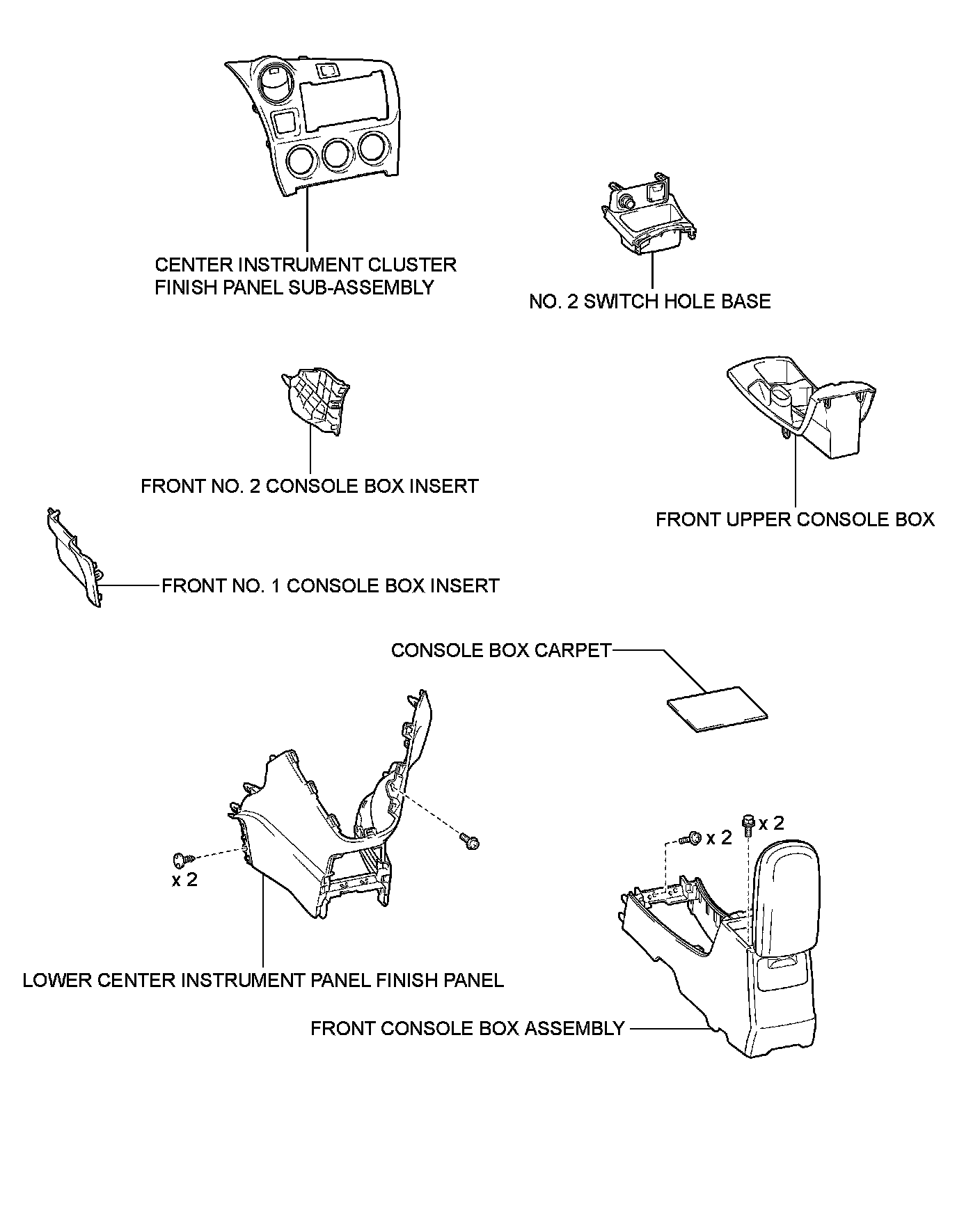

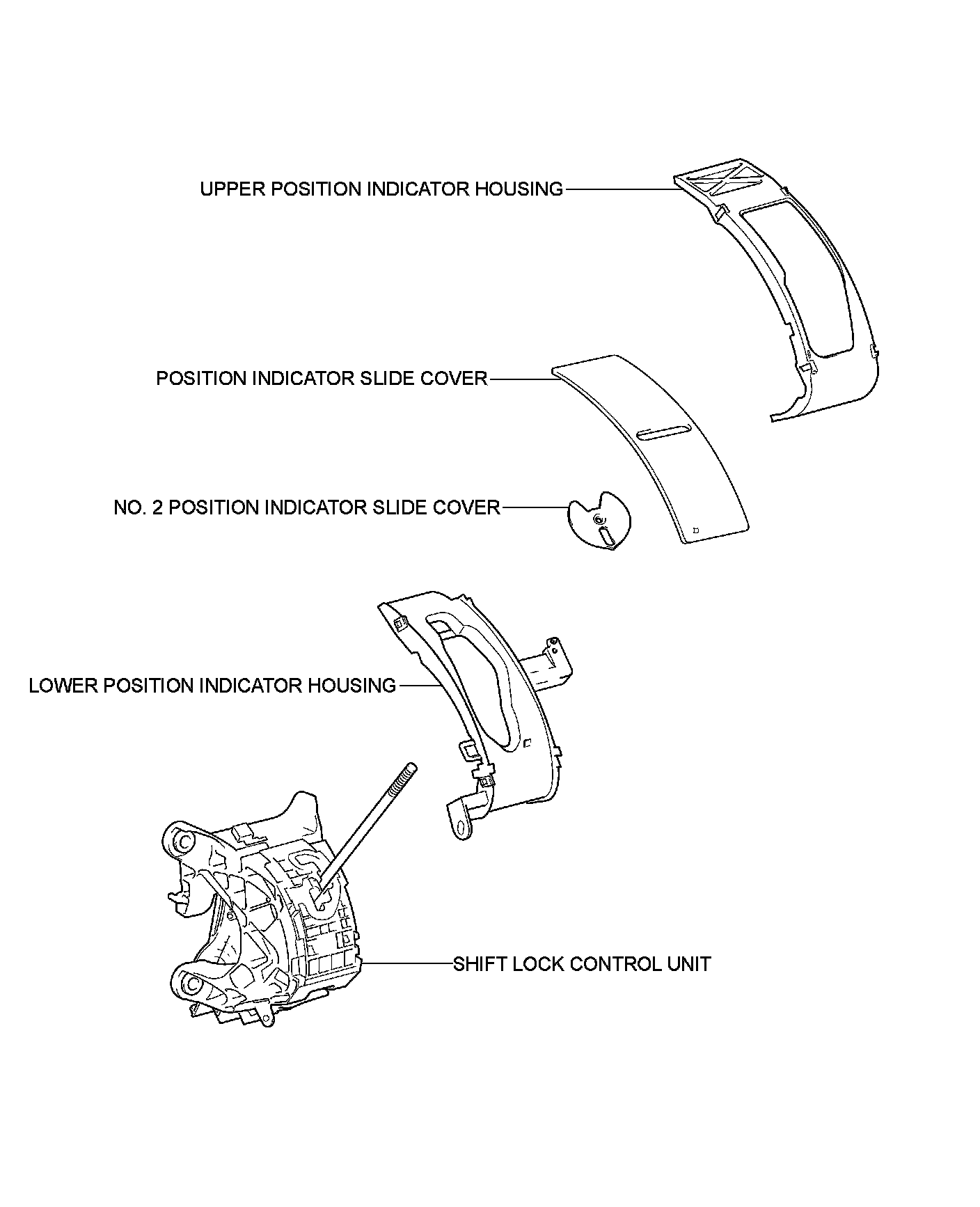

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: COMPONENTS
COMPONENTS
ILLUSTRATION
