Charging System: Description and Operation
1AR-FE BATTERY / CHARGING:
CHARGING SYSTEM

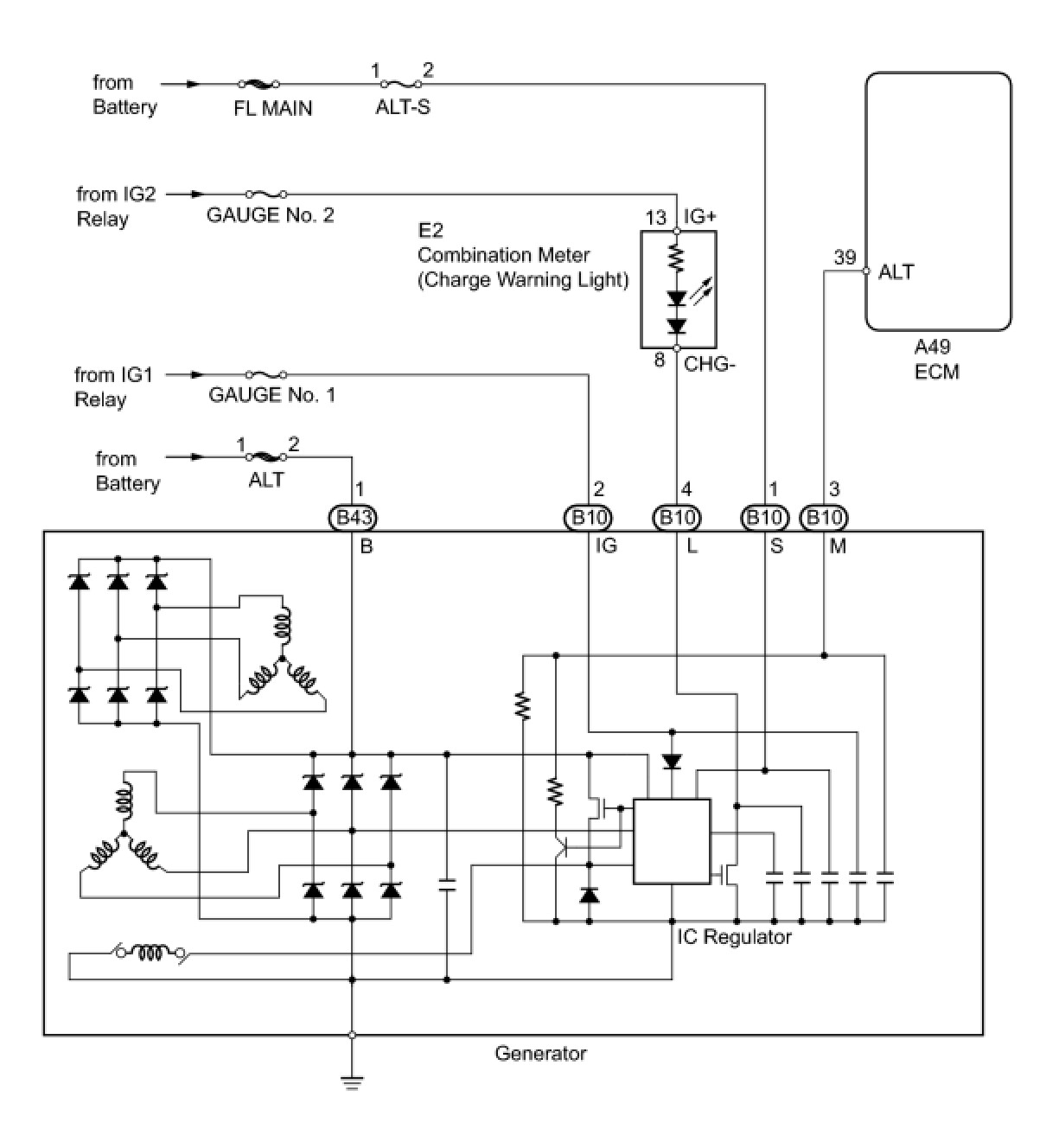

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
