Components
Components

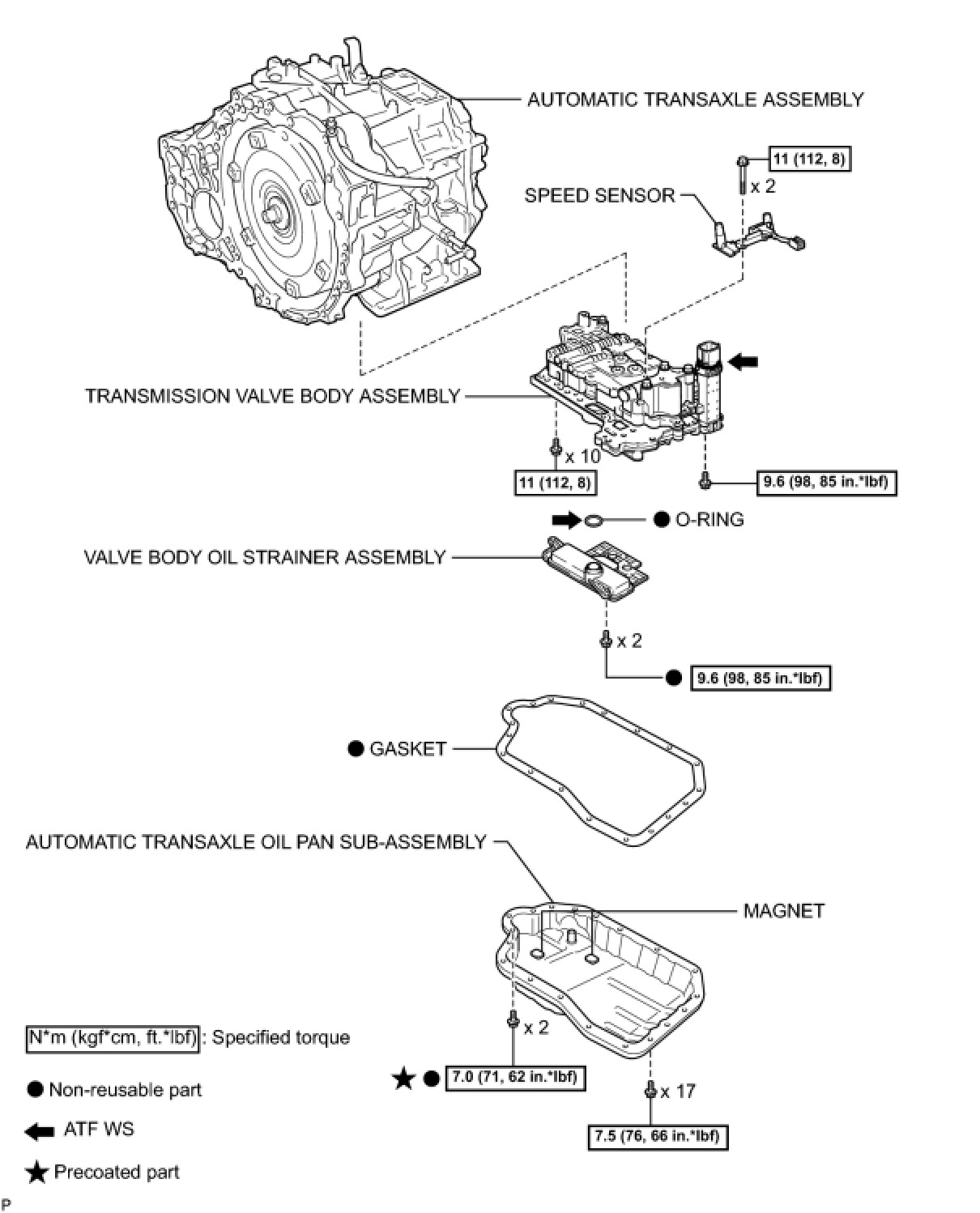

U760F AUTOMATIC TRANSMISSION / TRANSAXLE:
SPEED SENSOR
: COMPONENTS
COMPONENTS
ILLUSTRATION
