Installation

DOOR LOCK: UNLOCK WARNING SWITCH: INSTALLATION

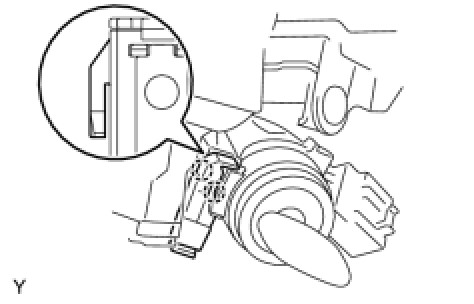

1. INSTALL UN-LOCK WARNING SWITCH ASSEMBLY





(a) Engage the 2 claws and install the unlock warning switch.

(b) Connect the connector.

2. INSTALL STEERING COLUMN COVER Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
