Unlock Warning Switch

DOOR LOCK: UNLOCK WARNING SWITCH: INSPECTION

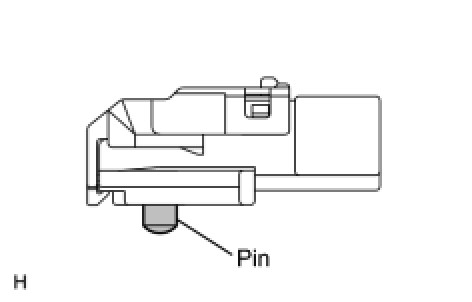

1. INSPECT UN-LOCK WARNING SWITCH ASSEMBLY





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

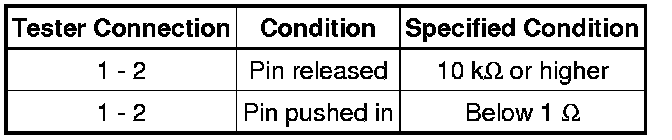

Standard Resistance:





(1) If the result is not as specified, replace the unlock warning switch.
