Removal

AIR CONDITIONING: FRONT BLOWER RESISTOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Hatchback) Removal

3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Sedan) Removal

4. REMOVE BLOWER RESISTOR

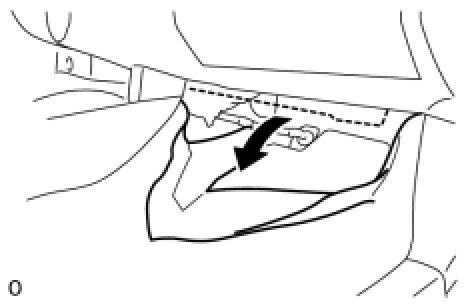

(a) Pull back the floor carpet.

(b) Disconnect the connector.





(c) Remove the 2 screws and the blower resistor.
