Installation

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Hatchback): INSTALLATION

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

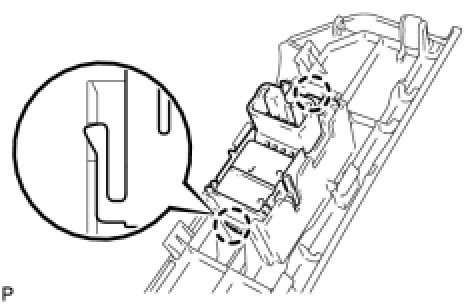

(a) Engage the 2 claws and install the power window regulator switch.

2. INSTALL FRONT ARMREST BASE PANEL UPPER





(a) Connect the connector.

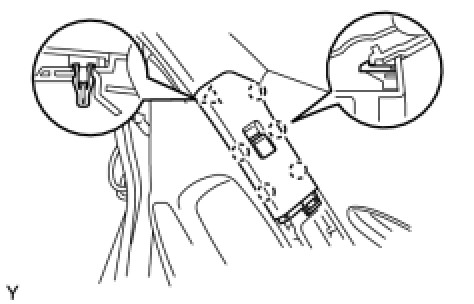

(b) Engage the 5 claws and clip and install the front armrest base panel upper.

3. INSTALL DOOR ARMREST COVER

HINT
Use the same procedure as for the LH side Reassembly.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
