Installation

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Sedan): INSTALLATION

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

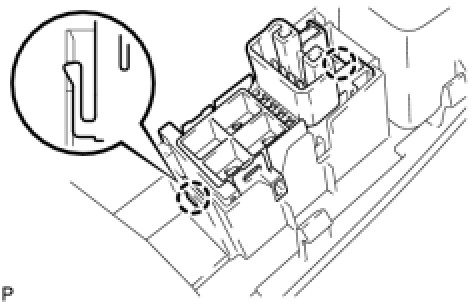

(a) Engage the 2 claws and install the power window regulator switch.

2. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
