WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH (for Hatchback): INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

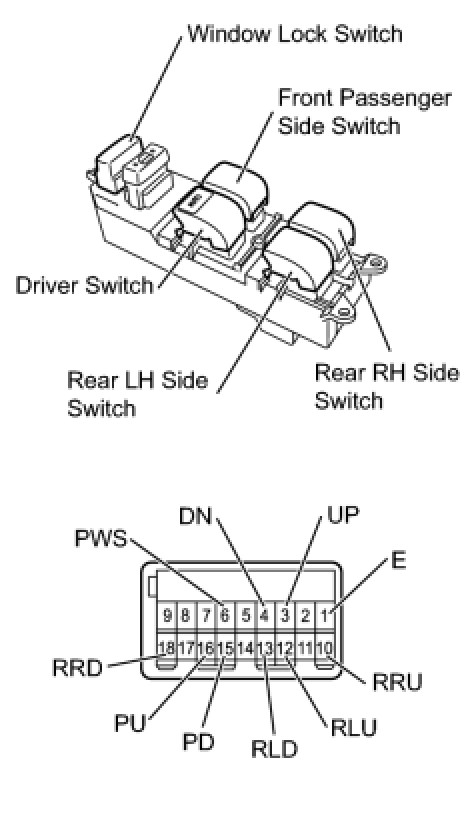

(a) w/ Rear power window:





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance and check the result in accordance with the value(s) in the tables below.

Standard Resistance:

Driver switch






(1) If the result is not as specified, replace the power window regulator master switch.

Standard Resistance:

Passenger side switch






(1) If the result is not as specified, replace the power window regulator master switch.

Standard Resistance:

Rear LH side switch






(1) If the result is not as specified, replace the power window regulator master switch.

Standard Resistance:

Rear RH side switch






(1) If the result is not as specified, replace the power window regulator master switch.

(b) w/ Rear power window:

Check the illumination operation.

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.

Standard:





(1) If the result is not as specified, replace the power window regulator master switch.

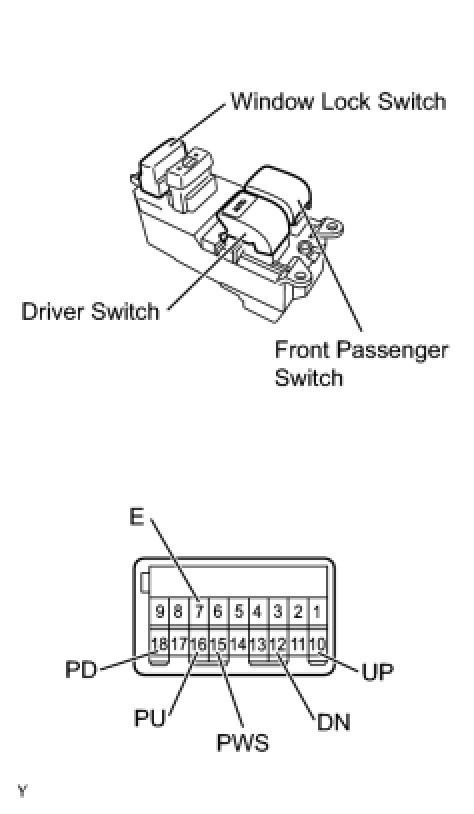

(c) w/o Rear power window:





(c) Check the resistance.

(1) Using an ohmmeter, measure the resistance and check the result in accordance with the value(s) in the tables below.

Standard Resistance:

Driver switch






(1) If the result is not as specified, replace the power window regulator master switch.

Standard Resistance:

Passenger side switch






(1) If the result is not as specified, replace the power window regulator master switch.

(d) w/o Rear power window:

Check the illumination operation.

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.

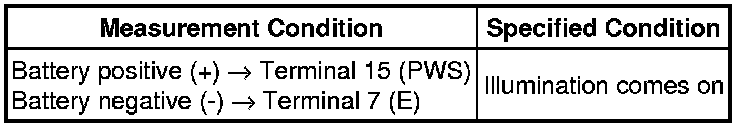

Standard:





(1) If the result is not as specified, replace the power window regulator master switch.
