Electrical Diagrams

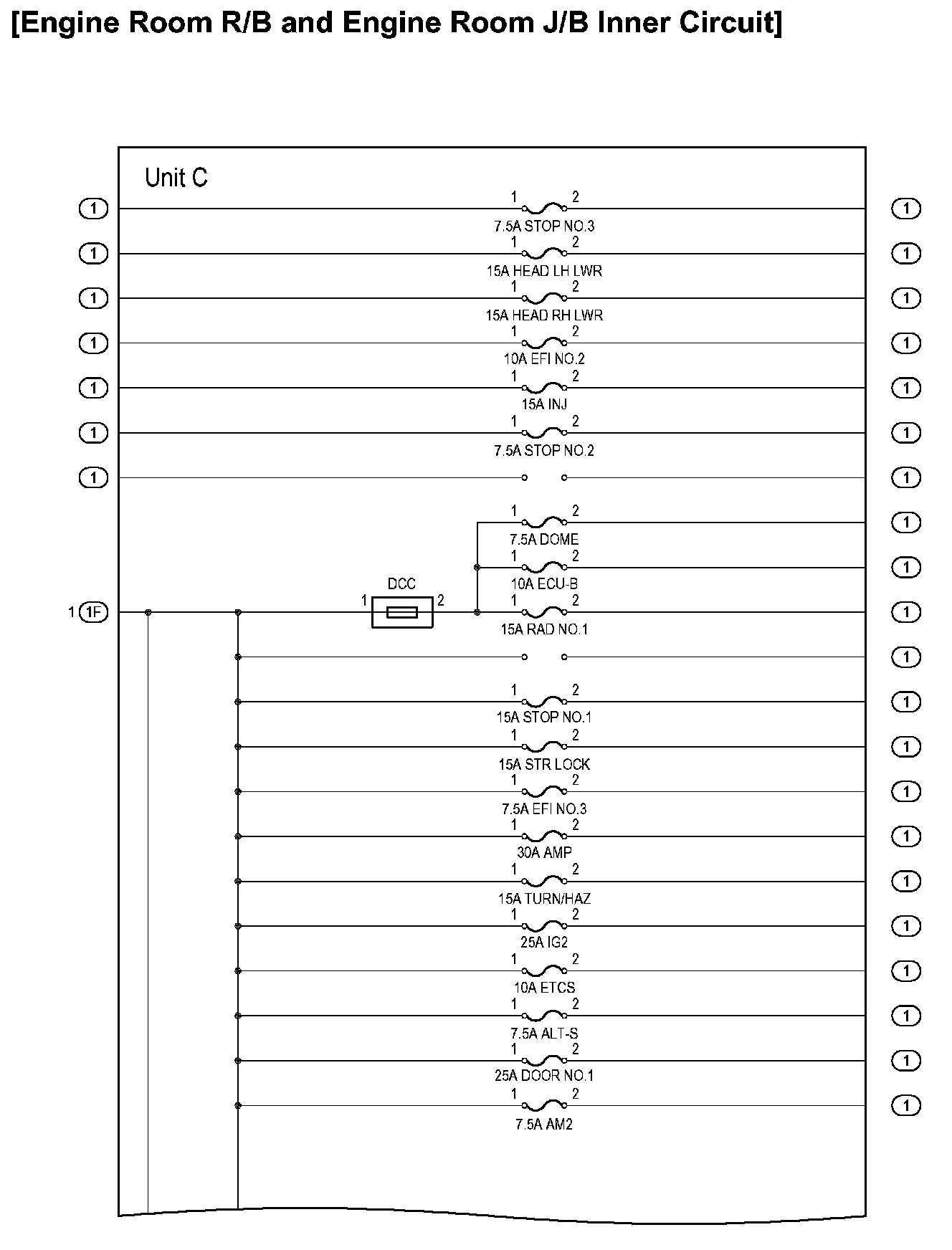

Engine Room R/B, J/B - Inner Circuit:

Engine Room R/B, J/B - Inner Circuit:

Engine Room R/B, J/B - Inner Circuit:

Engine Room R/B, J/B - Inner Circuit:

Engine Room R/B, J/B - Inner Circuit:

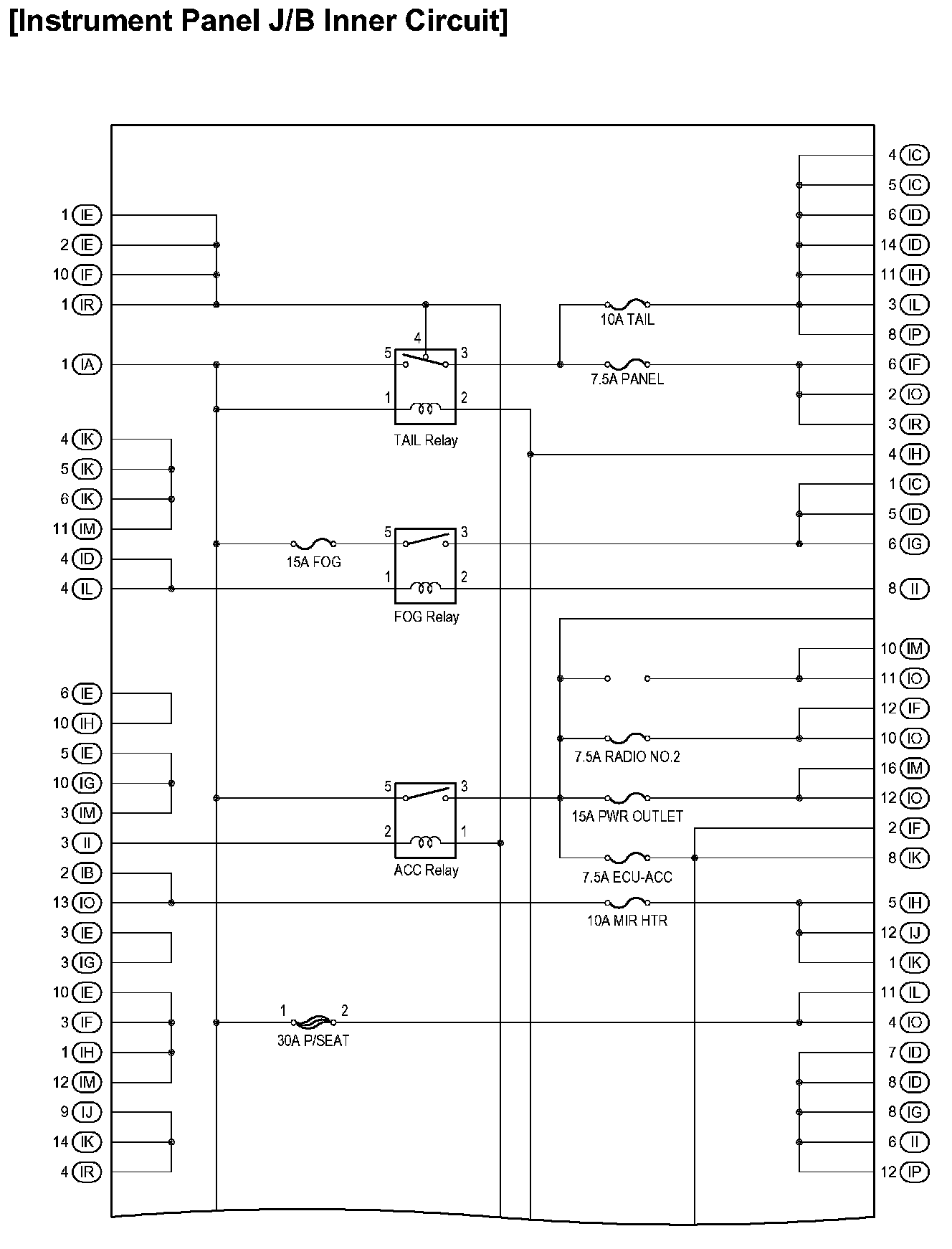

Instrument Panel J/B Inner Circuit:

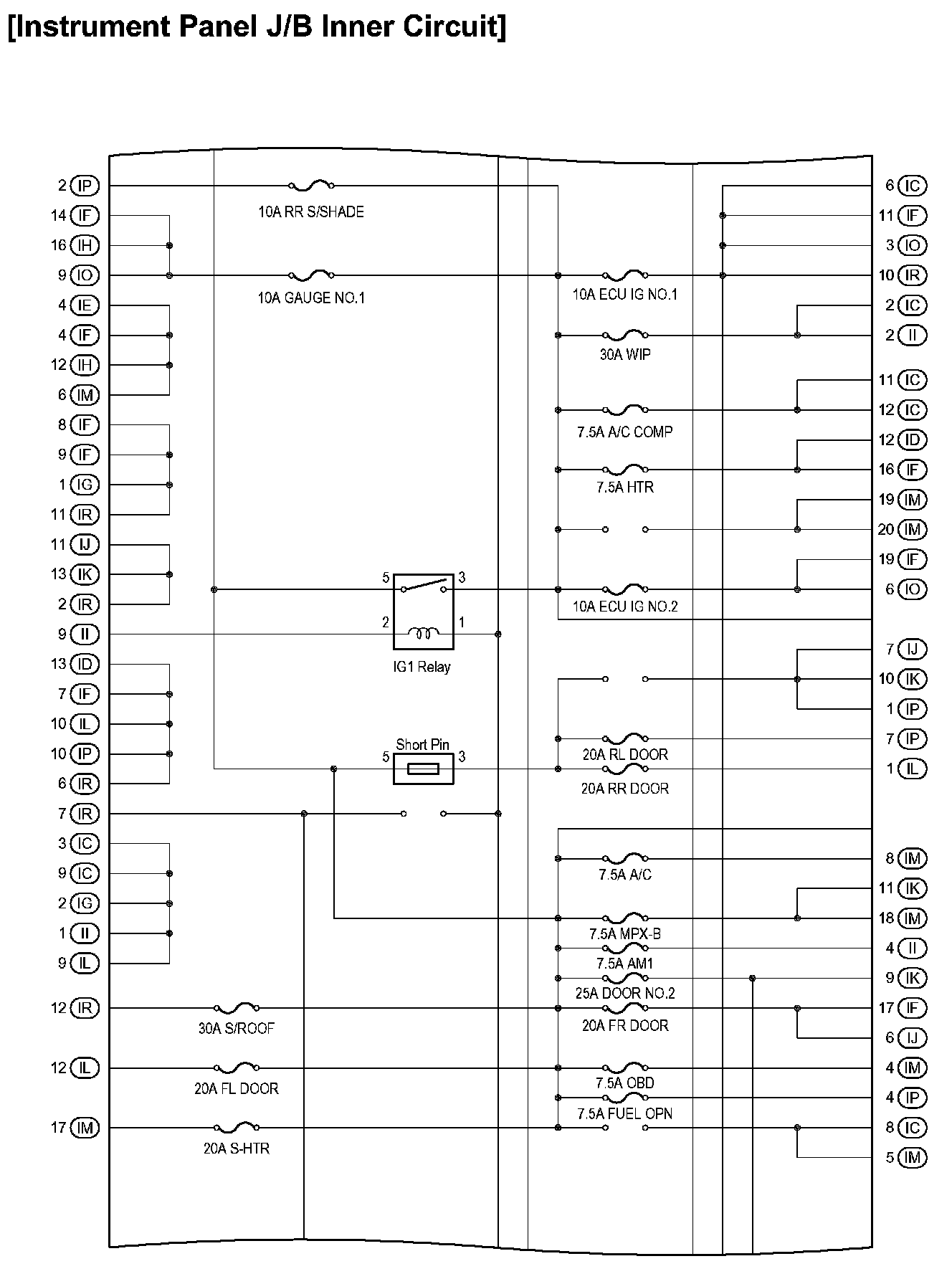

Instrument Panel J/B Inner Circuit:

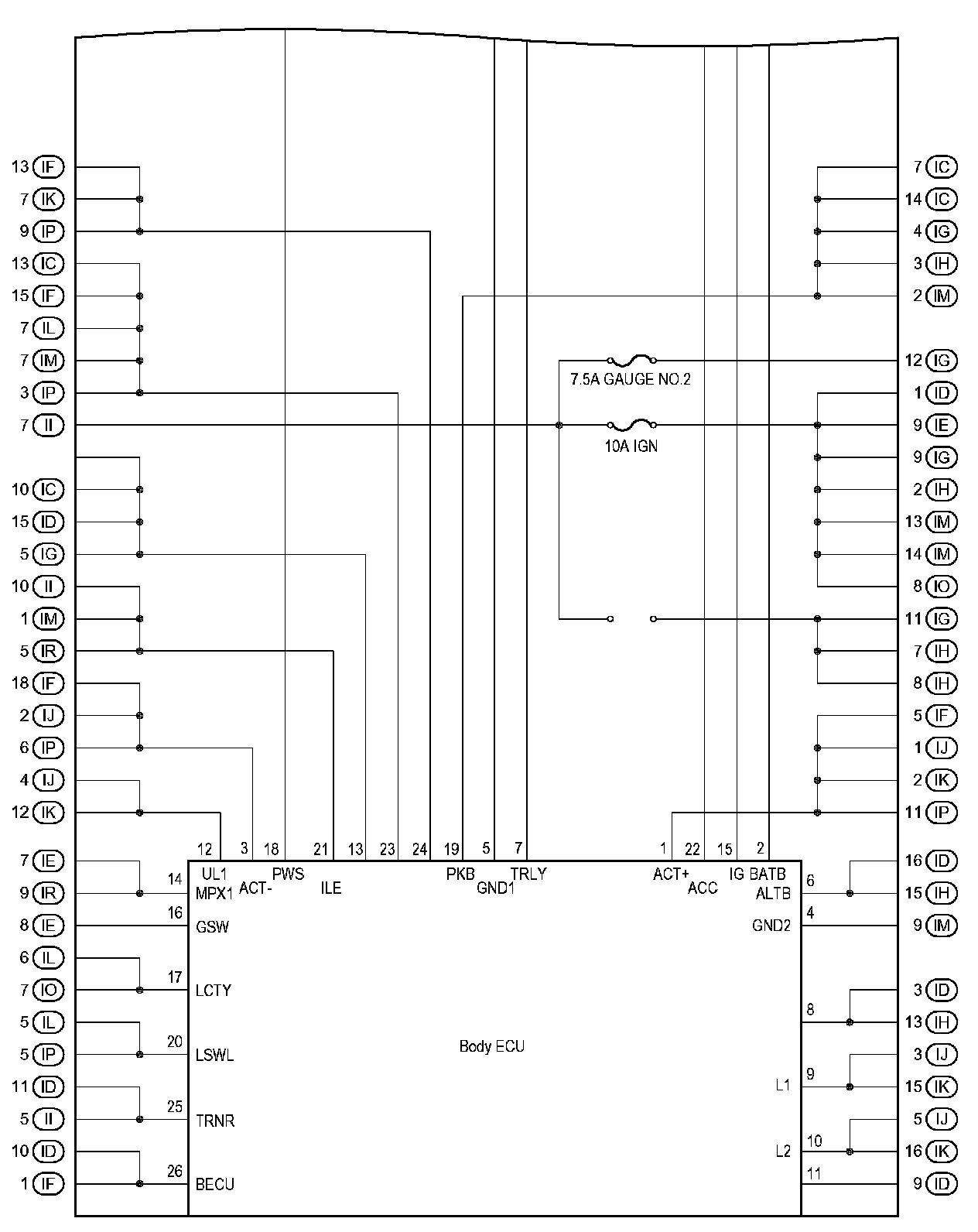

Instrument Panel J/B Inner Circuit:
