Drive/Propeller Shafts, Bearings and Joints





PREPARATION: DRIVE SHAFT / PROPELLER SHAFT: LUBRICANT

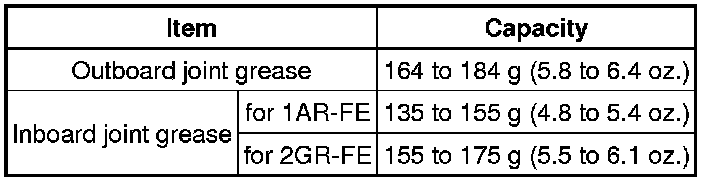

Front Drive Shaft

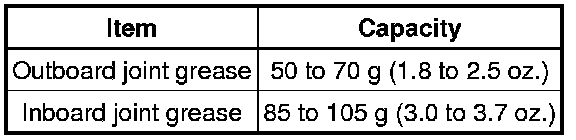

Rear Drive Shaft
